Operating Interface Maps
TDS 500D, TDS 600B, & TDS 700D User Manual
2–5

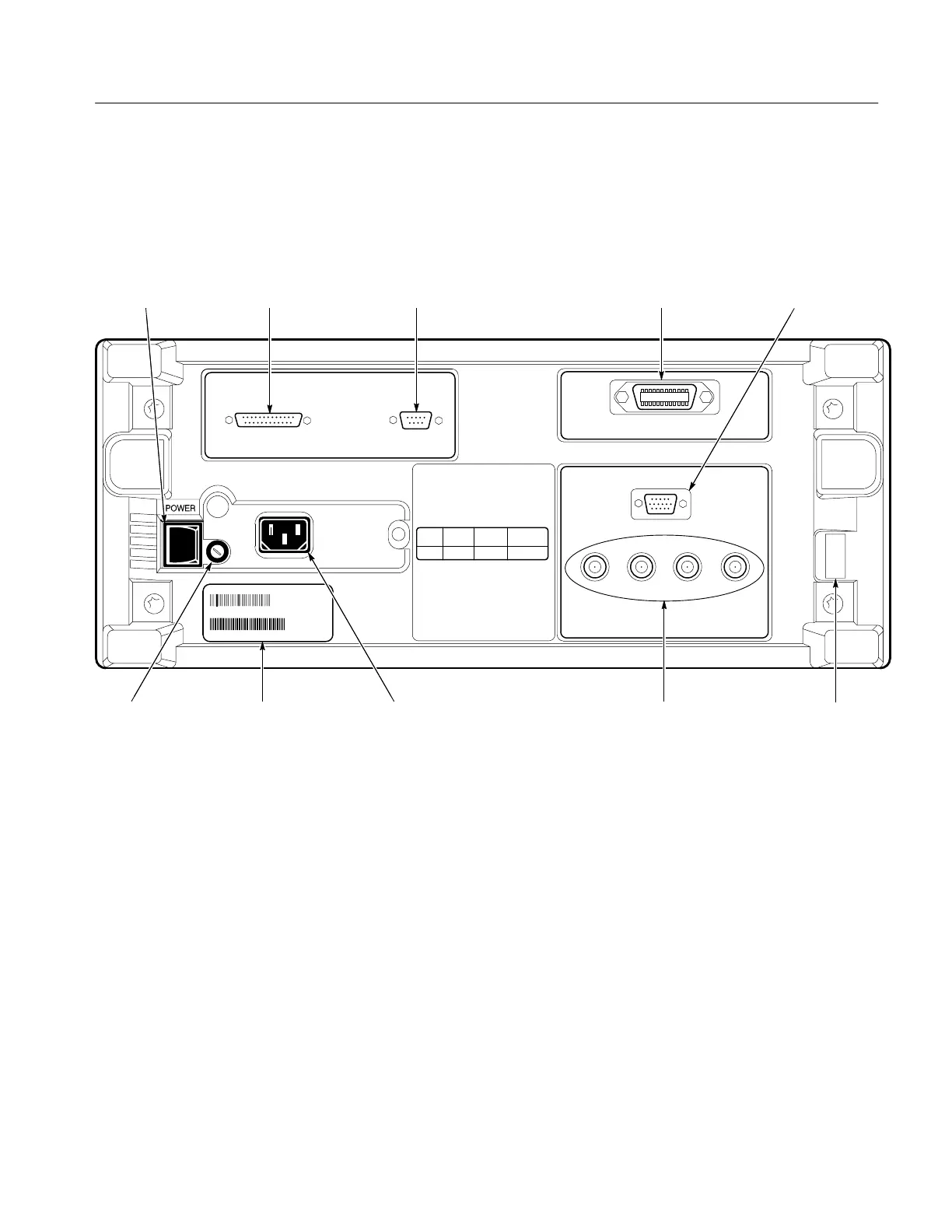

Rear Panel Map
Rear Panel Connectors Security Bracket
GPIB Connector,
page 3–191
Centronics Connector, page 3–180
Zip Drive, page 3–179
Principal Power
Switch,
page 1–7
Serial Number
SIGNAL OUTPUT –
(Provides Analog Signal Output
from CH3 – or AX1 – @ 10 mV/div)
AUX TRIGGER INPUT –
(Provides Auxiliary Trigger Signal Input)
MAIN TRIGGER OUTPUT –
(Provides Main Trigger (TTL) Output)
DELAYED TRIGGER OUTPUT –
(Provides Delayed Trigger (TTL) Output)
RS-232 Connector,
page 3–180
Fuse,
page 1–6
Power Connector,
page 1–6
VGA Output
To Next Page
