Tektronix TDS2024C Technical Reference

Performance Ve rification
Check Sample Rate
Accuracy and Delay Time
Accuracy
This test check
sthetimebaseaccuracy.
1. Set up the oscilloscope using the following table:
Push menu button Select menu option Select setting
Default Setup
——
Channel 1
Probe 1X

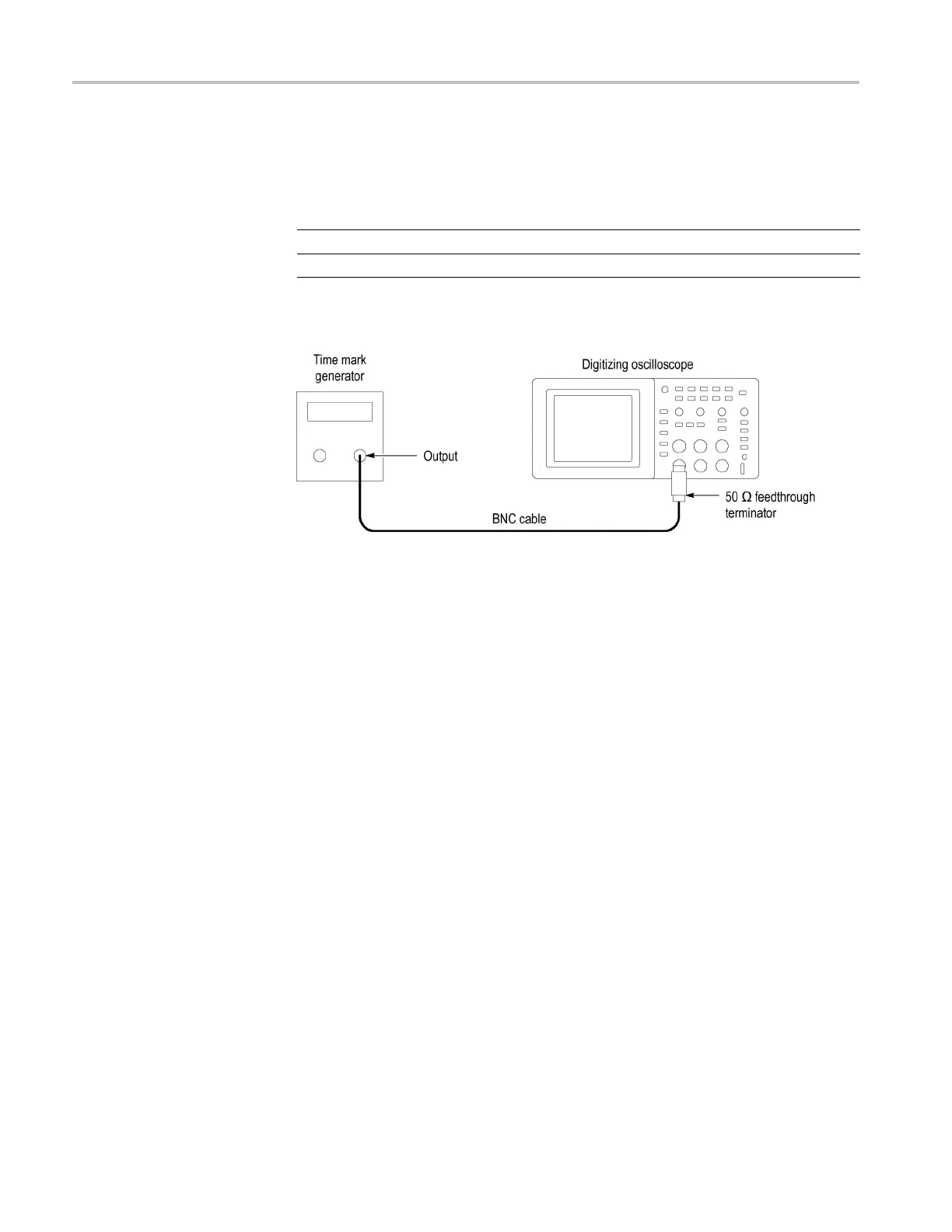

2. Connect the oscilloscope to the time mark generator as shown in the following
figure:
3. Set the time mark generator period to 10 ms.
4. Set the oscilloscope Vertical Scale (volts/division) to 500 mV/div.
5. Set th
e oscilloscope Main Horizontal Scale (seconds/division) to 1ms/div.
6. Push Set To 50%.
7. Use the Vertical Position control to center the test signal on screen.
8. Use the Horizontal Position control to set the position to 10.00 ms.
9. Set the oscilloscope Horizontal Scale (seconds/division) to 250 ns/div.
4–6 TDS2000C Series Oscilloscope Service Manual

Tektronix TDS2024C Specifications

General

Bandwidth	200 MHz
Channels	4
Sample Rate	2 GS/s
Display	Color LCD
Display Size	5.7 inches
Time Base Range	5 ns/div to 50 s/div
Vertical Resolution	8 bits
Input Coupling	AC, DC, GND
Trigger Modes	Auto, Normal, Single
Vertical Sensitivity	2 mV/div to 5 V/div
Input Voltage Range	300 V CAT II
Trigger Types	Edge, Pulse, Video
Connectivity	USB
Input Impedance	1 MΩ
Power Supply	100 to 240 V ±10%, 50 to 60 Hz
