Telcoma STONE 300 GR - Page 4

IO 18/E Rev. 00

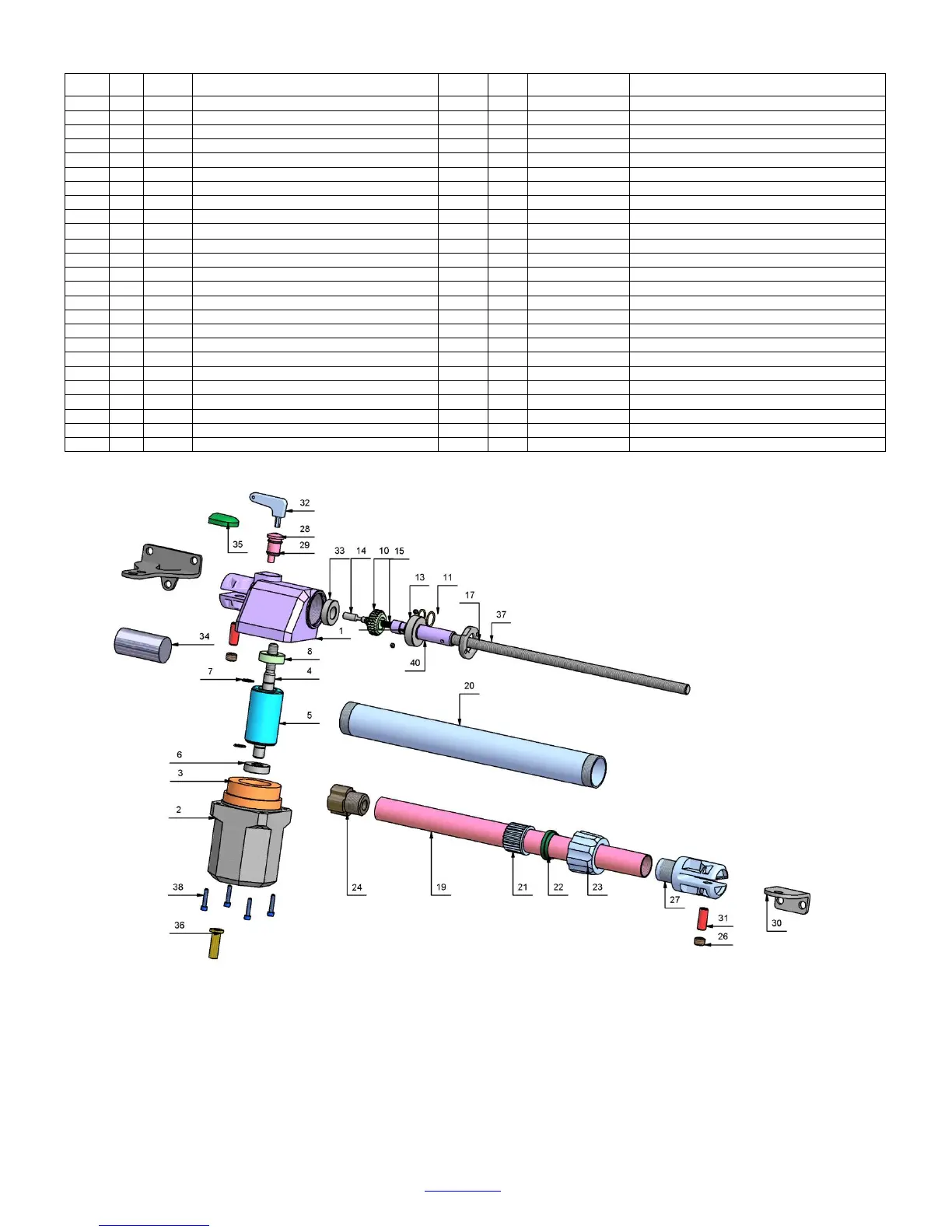

SPARE PARTS
PART
QTy
CODE
DESCRIPTION
PART
Q.TY
CODE
DESCRIPTION
1
1
100645
REDUCTION GEAR COVER LF. BLACK
20
1
100715
BLACK ALUMINIUM TUBE 400mm STROKE
1
1
100644
REDUCTION GEAR COVER RG. BLACK
20
1
100763
GREY ALUMINIUM TUBE 400mm STROKE
1
1
100759
REDUCTION GEAR COVER LF. GREY
20
1
100739
BLACK ALUMINIUM TUBE 600mm STROKE
1
1
100758
REDUCTION GEAR COVER RG. GREY
20
1
100764
GREY ALUMINIUM TUBE 600mm STROKE
2
1
100647
MOTOR CASING RG. BLACK
21
1
100829
PISTON ROD GUIDE
2
1
100761
MOTOR CASING RG. GREY
22
1
100625
SCRAPER RING
3
1
100840
STATOR 220V 4 POLES 45mm 1400rpm
23
1
100827
PISTON ROD LOCK NUT
4
1
100651
IRREVERSIBLE MOTOR SHAFT
24
1
100828
FEMALE SCREW
5
1
100841
ROTOR 45mm
25
1
100823
WALL BRACKET
6
1
100278
BEARING 6202 ZZ
26
2
100705
GRUB SCREW M14X10
7
2
100706
HELASTIC RING E15
27
1
100646
ALUMINIUM PISTON ROD TERMINAL BLACK
8
1
100291
BEARING 6202 2RS
27
1
100906
ALUMINIUM PISTON ROD TERMINAL GREY
10
1
100650
IRREVERSIBLE TOOTH WHEEL
28
1
100624
ALUMINIUM UNCLAMPING
11
2
100789
HELASTIC RING E20
29
2
100657
O-RING
12
1
100709
BEARING 6004 ZZ
30
1
100825
GATE BRACKET
13
2
100658
TOWING BALL
31
2
100654
PIN
14
1
100655
UNCLAMPING PIN
32
1
100218
UNCLAMPING KEY
15
1
100641
UNCLAMPING SPRING
33
1
100707
BEARING 6003 ZZ
17
1
100661
ALUMINIUM LOCK NUT
34
1
100184
CAPACITOR 8µF
17
100909
FIBRE LOCK NUT
35
1
100755
UNCLAMPING CAP
19
1
100712
STAINLESS STEEL TUBE 300mm STROKE
36
1
100748
CABLE PRESS
19
1
100713
STAINLESS STEEL TUBE 400mm STROKE
37 + 40
1
100716 + 100998
ENDLESS SCREW 40 + release shaft
19
1
100738
STAINLESS STEEL TUBE 600mm STROKE
37 + 40
1
100717 + 100998
ENDLESS SCREW 50 + release shaft
20
1
100714
BLACK ALUMINIUM TUBE 300mm STROKE
37 + 40
1
100740 + 100998
ENDLESS SCREW 70 + release shaft
20
1
100762
GREY ALUMINIUM TUBE 300mm STROKE
38
4
100313
CAP SCREW M5X16
