INSTALLATION
INSTALLATION
To operate a good installation of the gear motors STONE 300-400-600
GR, follow these instructions:
1 - Open the box and take out gear motor. Make sure that it has not
been damaged during the transport.
2 - Make sure that the leaf of the gate is perfectly horizontal.
3 - Place the gear motor inclined approximately 1º below the
horizontal line(picture 3 )
1°
Z
W
6.0
Y
X
4- Fix the support plate A on the pillar beside the leaf, taking in account
the measures shown in Table 1. Do not forget inclination.
1°
Z
W
6.0
Y
X
5 - Install the gear motor on to the support plate A and fix it with the bolt.
6 - With gate’s leaf closed, turn and slide the screw of gear motor’s D
shaft, until the end of the stroke-
7 - Screw D shaft back on 1 complete turn of 360º. (picture5)
8 - Place B support plate in the hole of D shaft and position it against
the gate leaf. Fix it to the gate leaf taking in account the inclination
(point nr.3).
9 - Proceed in the same way with the other gate leaf.
10 - Connect the electrical wires and safety devices: Place the
mechanical limit stops
11 – Place the cover on the unblocking screw (C) (picture 6)
TAB 1
MOTOR
ROTATION 95 °
ROTATION 120 °
W
X
Y
Z
W
X
Y
Z
STONE300
922
140
140
378
922
160
120
378
STONE400
1122
145
145
478
1122
170
110
478
STONE600
1532
280
280
678
1532
310
120
678
A
C
D
B
A – Pillar bracket
B – Gate bracket
D – Piston rod
C – Release

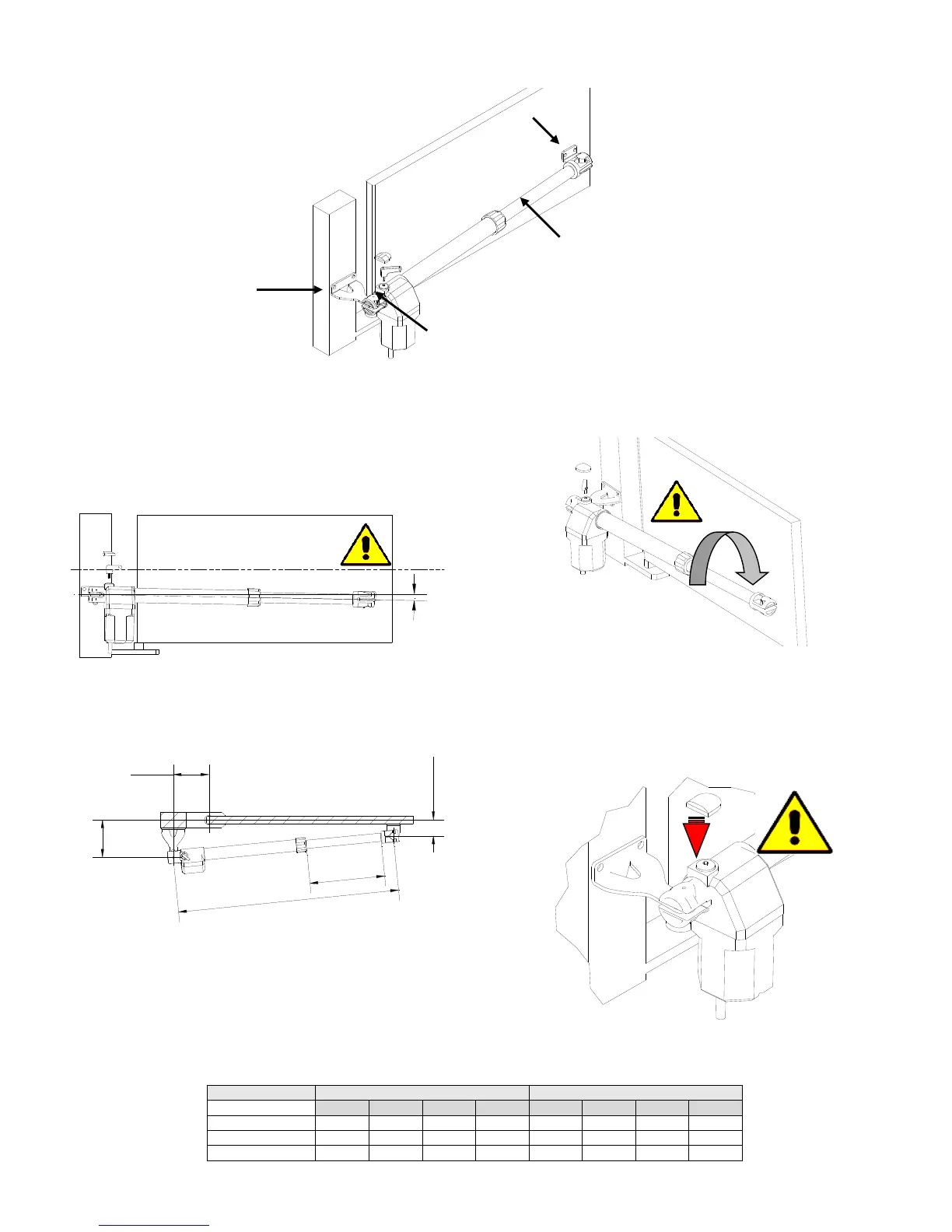

FIG 2
360°
FIG 3
FIG 4
FIG 5
FIG 6
