E SERIES ANALOG USER GUIDE www.teledex.com 7

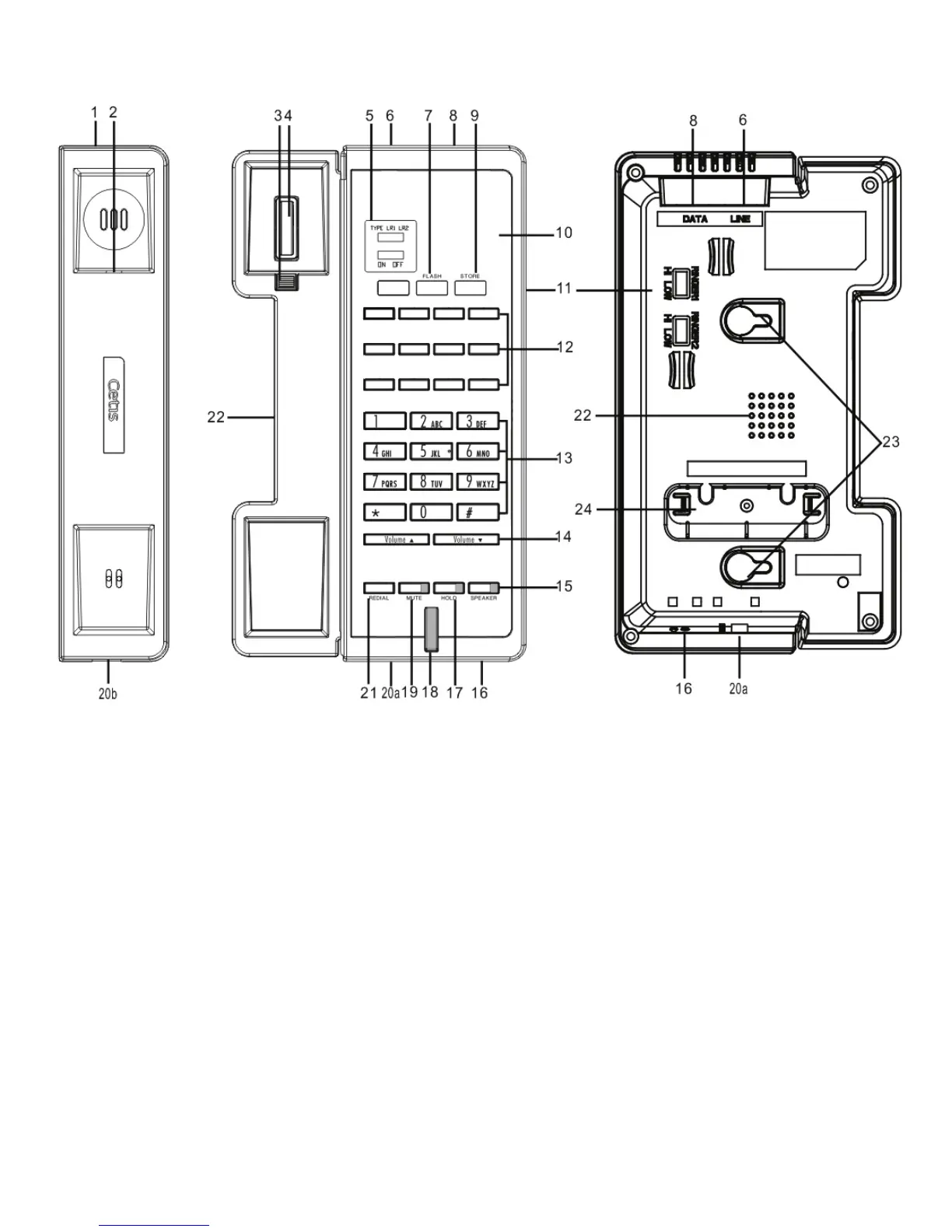

E100 and E100TRM Phone Map
BASE FEATURES AND CONTROLS
1. Handset
2. Wall mount clip slot
3. Wall mount handset clip
4. Actuator for hookswitch
5. Message Waiting Indicator (MWI) switches
(submerged)
6. RJ-11 line input
7. Flash key (submerged)
8. RJ-11 data port
9. Store key (submerged)
10. Paper faceplate/Plastic overlay
11. Ringer Volume switch
12. 4, 8, 12, or 0 Memory keys
13. Dialpad
14. Volume s (increase) and Volume t
(decrease) keys
15. Speaker key
16. Microphone
17. Hold key
18. Message Waiting Indicator (MWI) light
19. Mute key
20. a/b. Handset coil cord receptacles
21. Redial key/Pause key
22. Speaker—half duplex
23. Wall mount bracket
24. Desk mount bracket
