E SERIES ANALOG USER GUIDE www.teledex.com 9

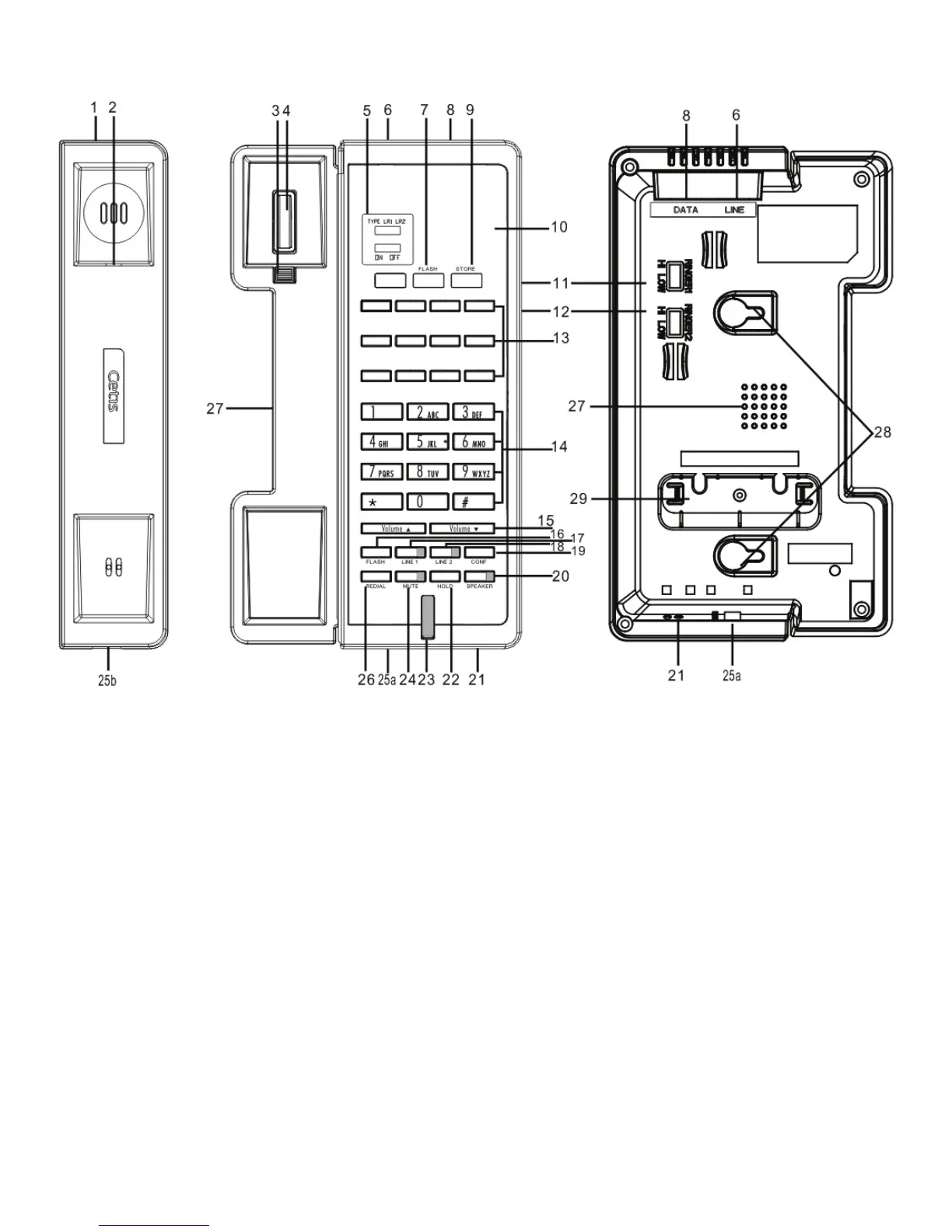

E200 and E200TRM Phone Map
BASE FEATURES AND CONTROLS
1. Handset
2. Wall mount clip slot
3. Wall mount handset clip
4. Actuator for hookswitch
5. Message Waiting Indicator switches
(submerged)
6. RJ-11 line input
7. Flash key (submerged)
8. RJ-11 data port
9. Store key (submerged)
10. Paper faceplate/Plastic overlay
11. Ringer Volume switch
12. Hi-Lo switch
13. 4, 8, 12, or 0 Memory keys
14. Dialpad
15. Volume s (increase) and Volume t
(decrease) keys
16. Flash key
17. Line 1 key
18. Line 2 key
19. Conference key
20. Speaker key
21. Microphone
22. Hold key
23. Message Waiting Indicator (MWI) light
24. Mute key
25. a/b. Handset coil cord receptacles
26. Redial key/Pause key
27. Speaker—half duplex
28. Wall mount bracket
29. Desk mount bracket
