Telefunken TF-LED40S28T2 - TV Control Elements; Front and Back Panel Interfaces

Operation
6
6
Operation

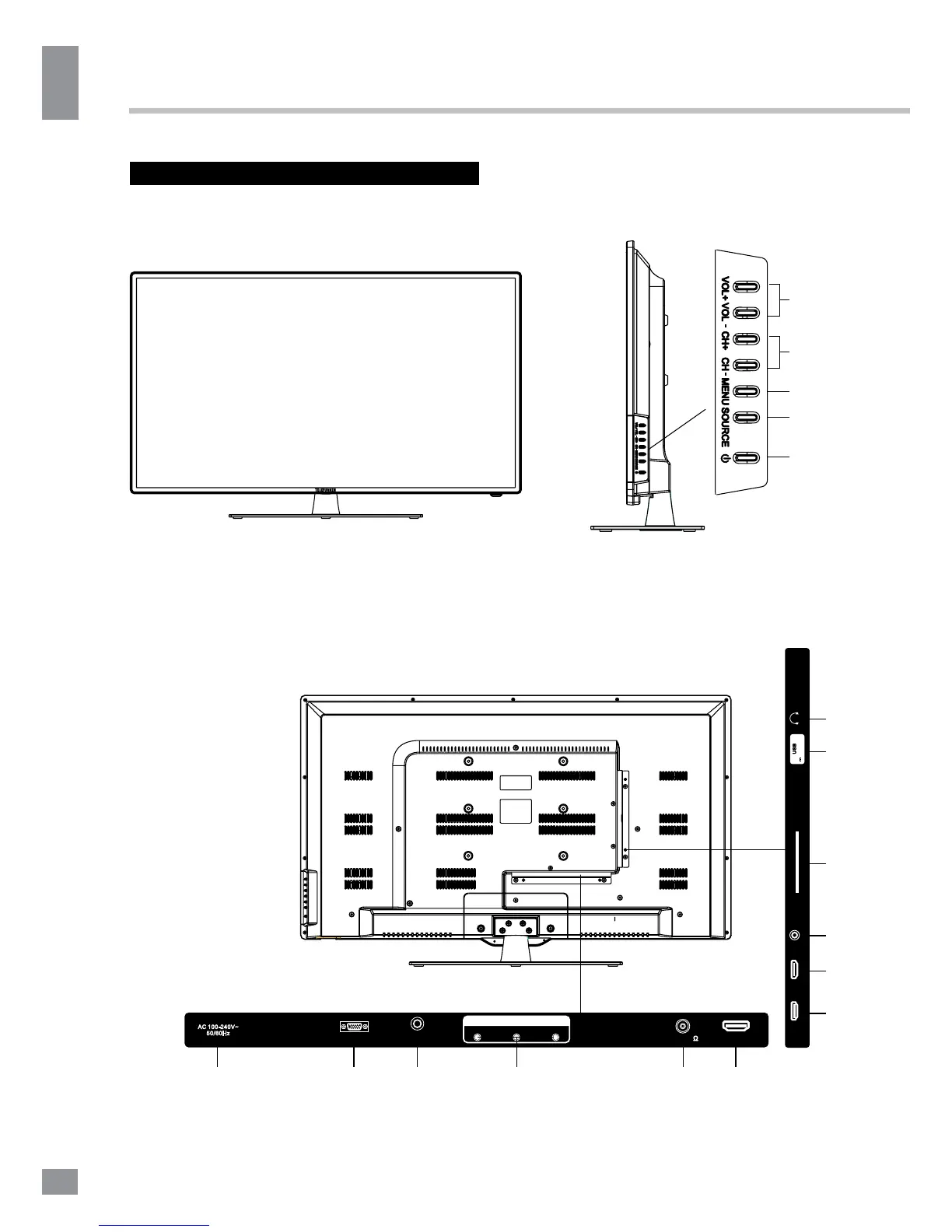

Front panel
1. VOL+/VOL- buttons
2. CH+/CH- buttons
3. MENU button
4. SOURCE button
5. POWER/STANDBY button
Control elements
Back panel
1. Power cable
2. VGA input
3. PC audio input
4. Composite
RCA input
5. TVRF antenna jack
6-8. HDMI inputs
9. Coaxial output
10. PCMCIA slot
11. USB port
12. Earphone output
1
2
3
4
5
INPUT
VIDEOR
L
HDMI 1
PC AUDIO
INPUT
VGA
ANT 75
AC 10 0- 24 0V ~
50 /6 0H z
EARPHONE
HDMI 2
HDMI 3
CI
COAXIA L
5V 500mA
1 2 3 4 5 6
7
8
9
10
11
12
