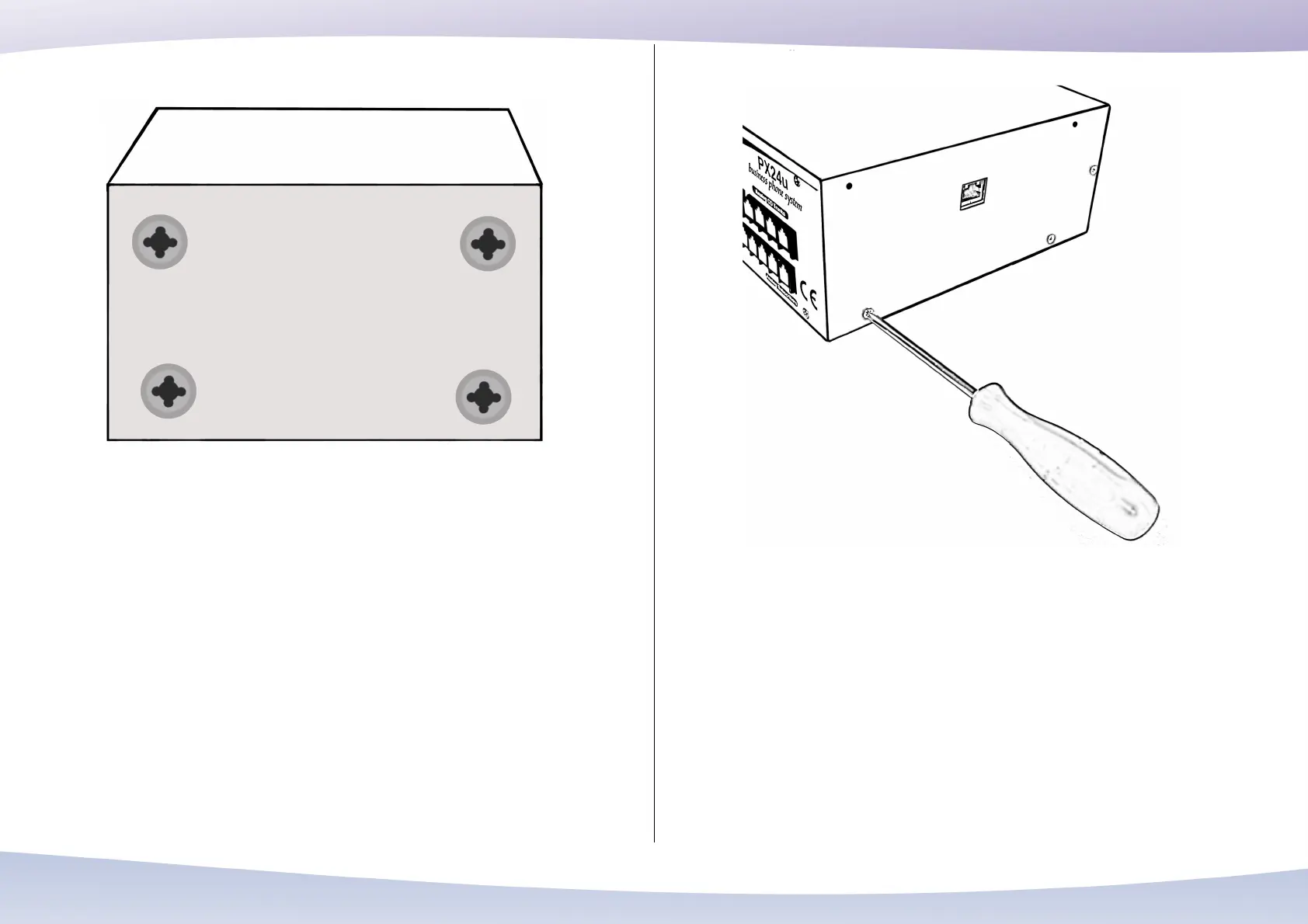

Holes at the back of the PX24M to hang the system on the wall perpendicularly
MOUNTING THE SYSTEM INTO A 19INCH RACK
Telesis PX24U/PX24M Hybrid IP PBX systems can be placed inside an industry-
standard 19inch rack with using the optional 19inch rack adapters. The same adapters
are used for both systems.
19inch rack adapter set has the same right and left parts. Each part is fixed to the
system with using 4 screws. To attach an adapter to one side of the system, remove the
lower two screws on this side first.
Remove the lower two screws
Then screw the rack adapter firmly with using four screws.
35
