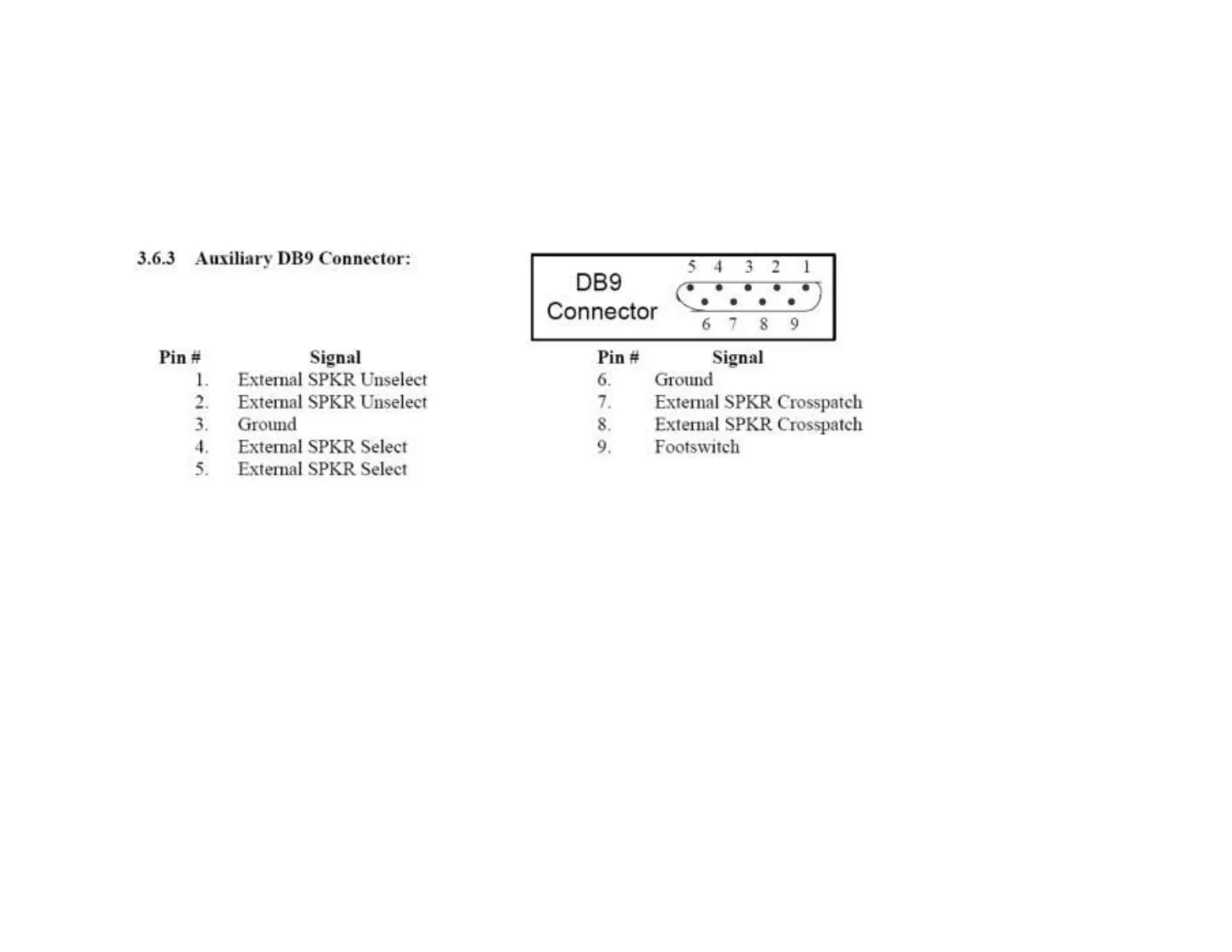

Telex C-6200 - C-6200 Backplane Connections; Auxiliary DB9 Connector; Battery Backup

Care and Feeding of Telex Radio Dispatch Systems
C-6200 Setup
Phase 4 Design, Inc.
Dave Grant / dgrant@hostnw.net
425.402.7308
11/5/2010 Page 3 of 18
C-6200 Backplane connections
Battery backup:
The Auxiliary power input (3-Pin terminal block) is a diode-protected +12V input used for battery
backup. Pin (E) is also connected to the chassis allowing for positive grounding of the unit.
