Auxiliary Relay Output:
The DB25 AUX connector provides connection to the AUX relays, depending on the setting of the
AUX button in the tech mode, this output is a relay closure that can be used for whatever purpose is
required.

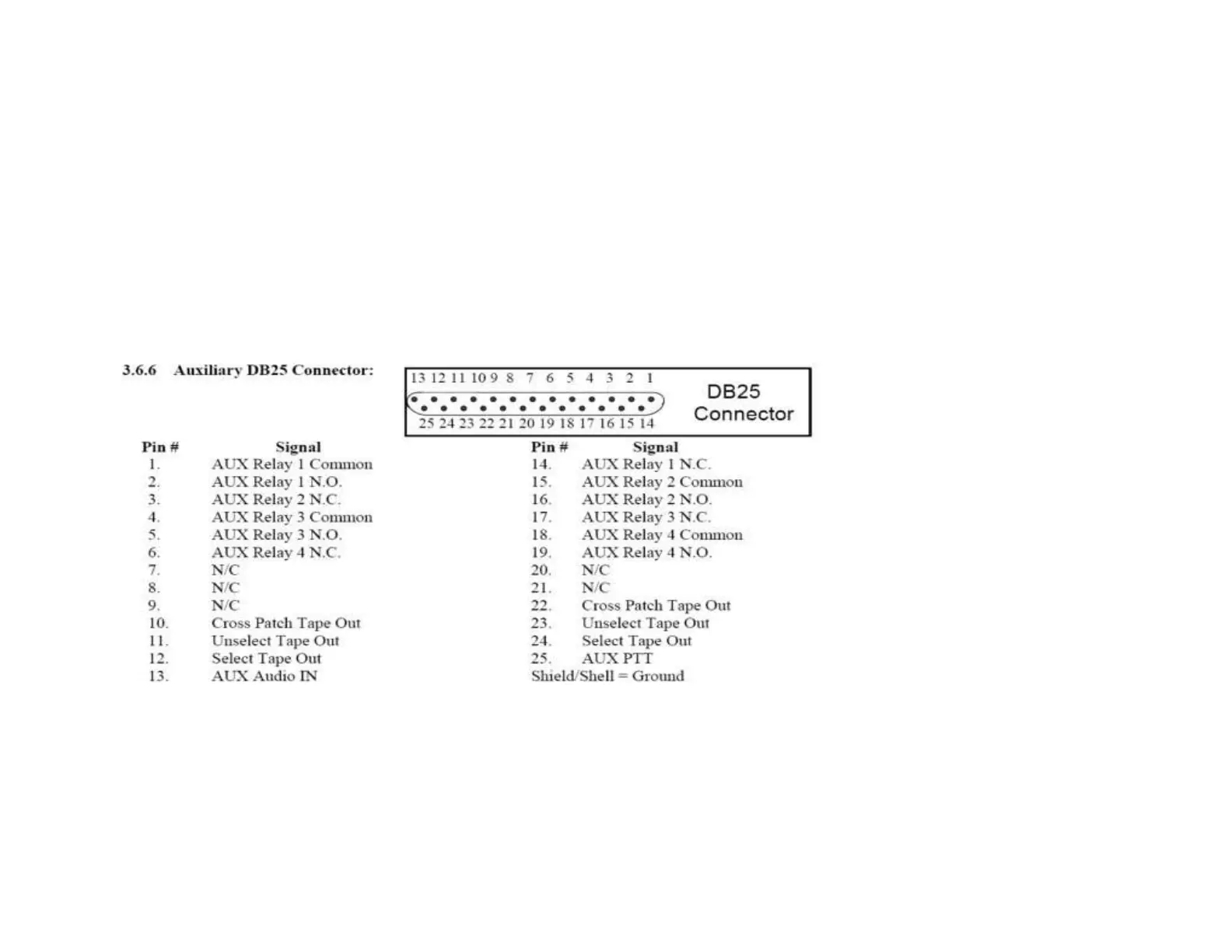

Auxiliary DB25 Connector:
