6200TCRD - Line Ports 1-9:

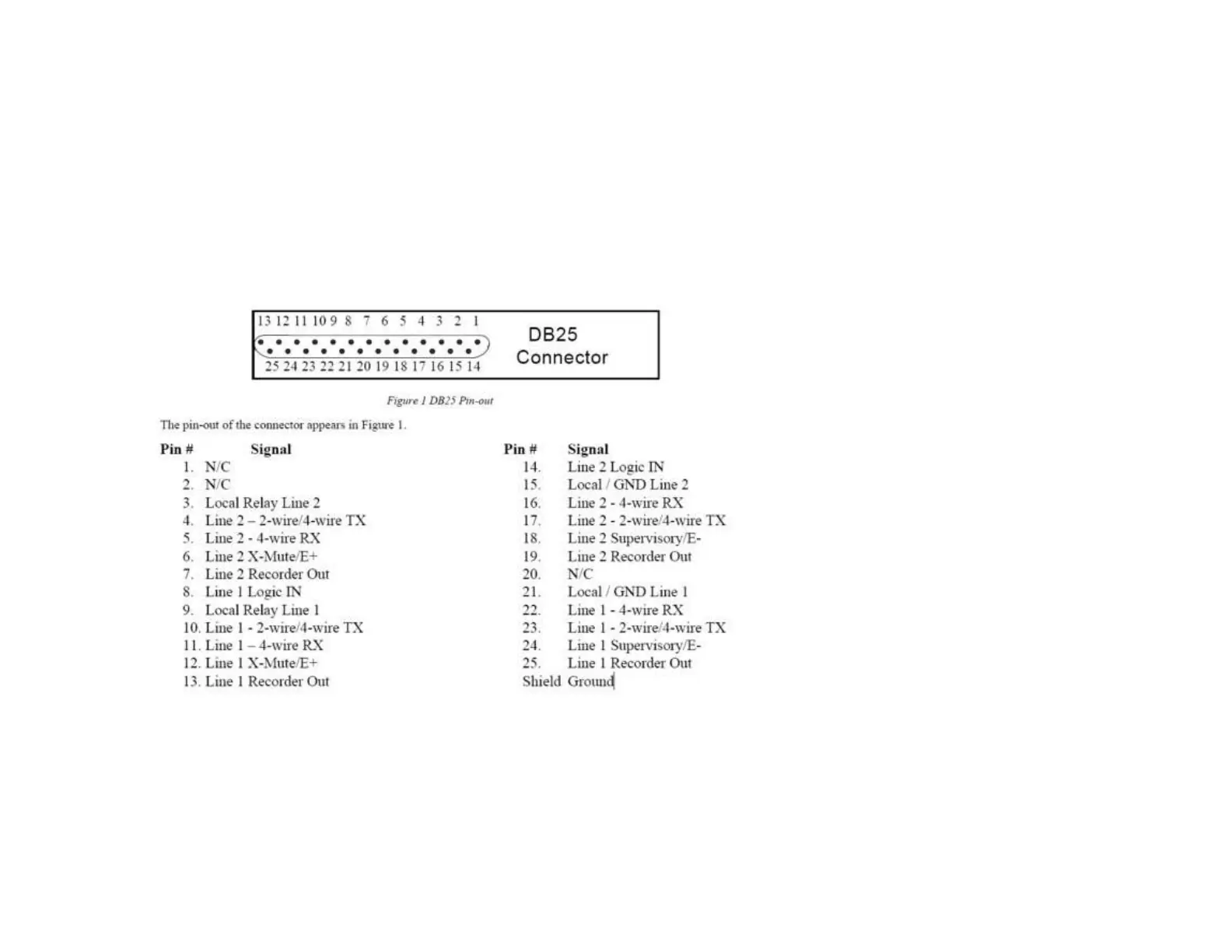

The C-6200 can accommodate up to 18-lines, in multiples of two. The nine-line connectors are on
the rear of the unit and are standard DB25 connectors for TCRD and RJ-12 for PCRD. The pin-outs
of the connectors appear below.
