Telex FMR-70 - FMR-70 RECEIVER; CONTROLS AND CONNECTIONS; FRONT PANEL OVERVIEW; FMR-70 DISPLAY INDICATORS

CONTROLS AND CONNECT
27I56-B-004-A
POWER SWITCH
DIVERSITY
DISPLAY

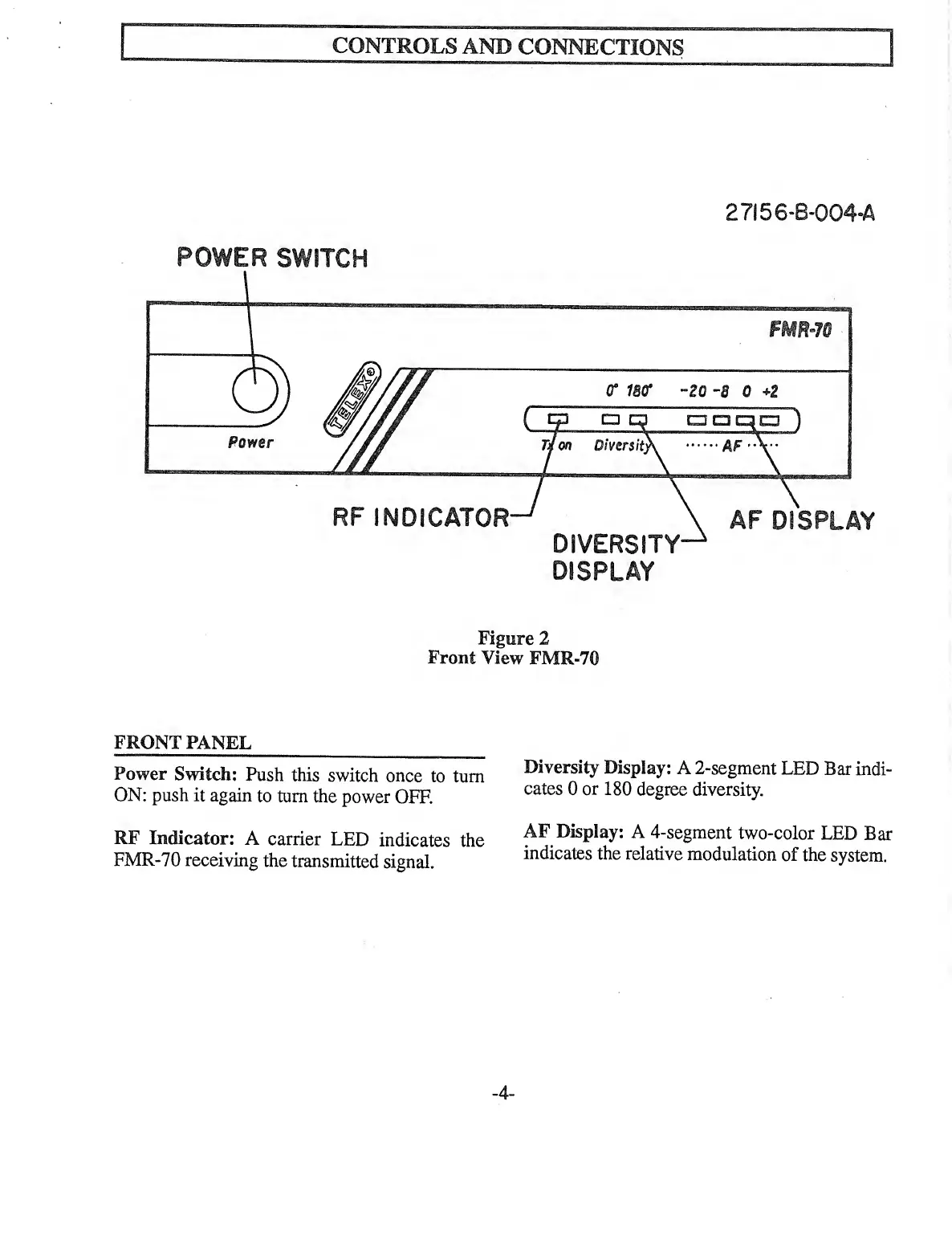

Figure 2
Front View FMR.70
FRONT PANEL __
Power Switch: Push this switch once to turn Diversity Display: A 2-segment LED Bar indi-
ON: push it again to turn the power OFF. 0 or 180 degree diversity.
RF Indicator: A carrier LED indicates the AF Display: A 4-segment two-color LED Bar
FMR-70 receiving the transmitted signal. indicates the relative modulation of the system.
