Telex FMR-70 - FMR-70 RECEIVER; REAR PANEL CONNECTIONS; Audio Output and Adjustment; Power Jack

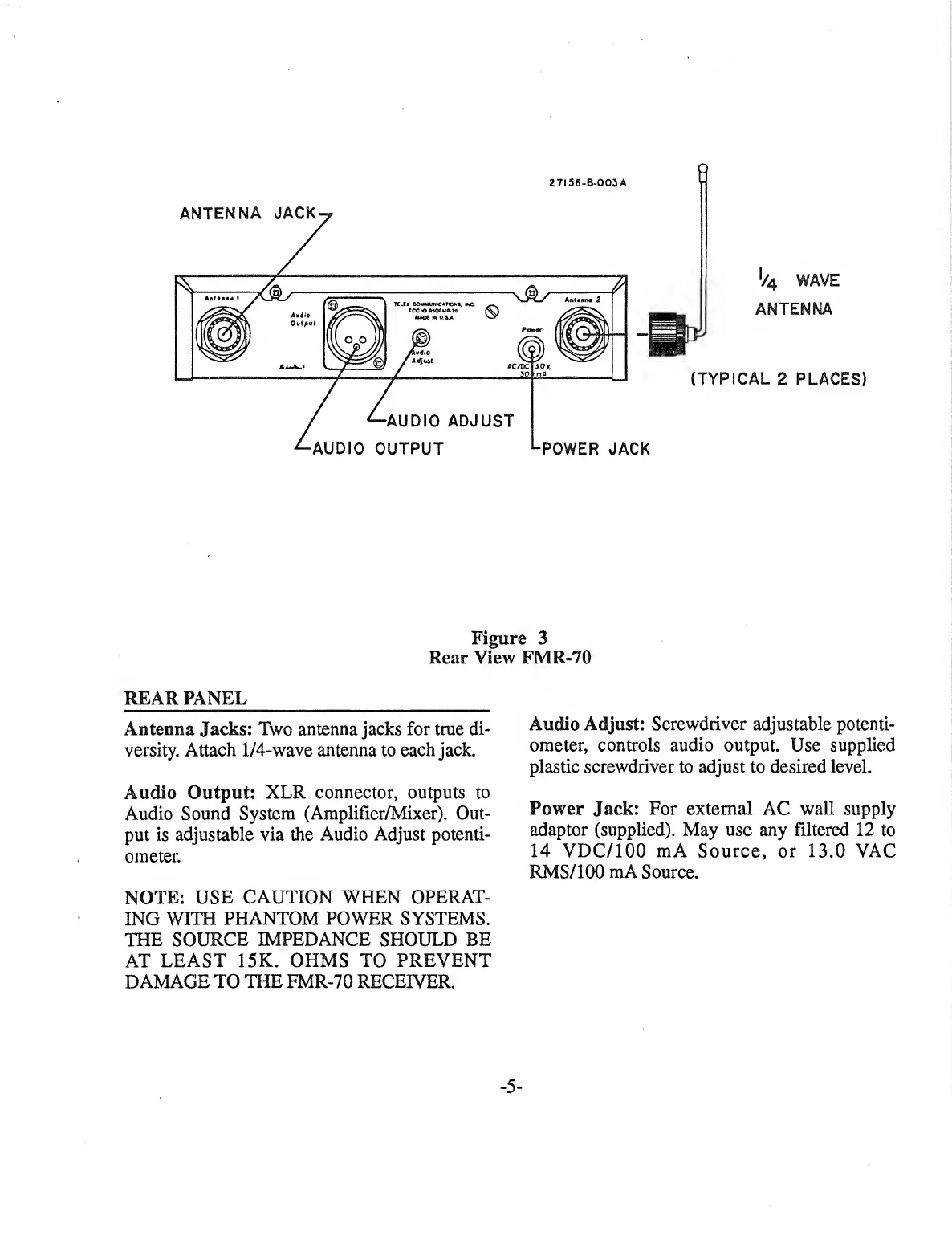

Figure 3
Rear View FMR-70
REAR PANEL _
Antenna Jacks: Two antenna jacks for true di¬
versity. Attach 1/4-wave antenna to each jack.
Audio Output: XLR connector, outputs to
Audio Sound System (Amplifier/Mixer). Out¬
put is adjustable via the Audio Adjust potenti¬
ometer.
NOTE: USE CAUTION WHEN OPERAT¬
ING WITH PHANTOM POWER SYSTEMS.
THE SOURCE IMPEDANCE SHOULD BE
AT LEAST 15K. OHMS TO PREVENT
DAMAGE TO THE FMR-70 RECEIVER.
Audio Adjust: Screwdriver adjustable potenti¬
ometer, controls audio output. Use supplied
plastic screwdriver to adjust to desired level.
Power Jack: For external AC wall supply
adaptor (supplied). May use any filtered 12 to
14 VDC/100 mA Source, or 13.0 VAC
RMS/100 mA Source.
