To assemble the Hanger Return Spring, do the following:
1. Place the long standoffs through the holes in the case top and against the spring.
2. Push the screws through the spring holes and through the standoff.
3. Secure the hanger to the standoff with the 5/8” long screws. See Figure 7.
4. Plug the switch cable connector into the PCBA.
On the IP-1616, connect to J10.
On the C6200, connect to J80. See Figure 8.
NOTE: The cable may be short which may require partially placing the case top on the unit as the switch cable connector is plugged
into the PCBA.

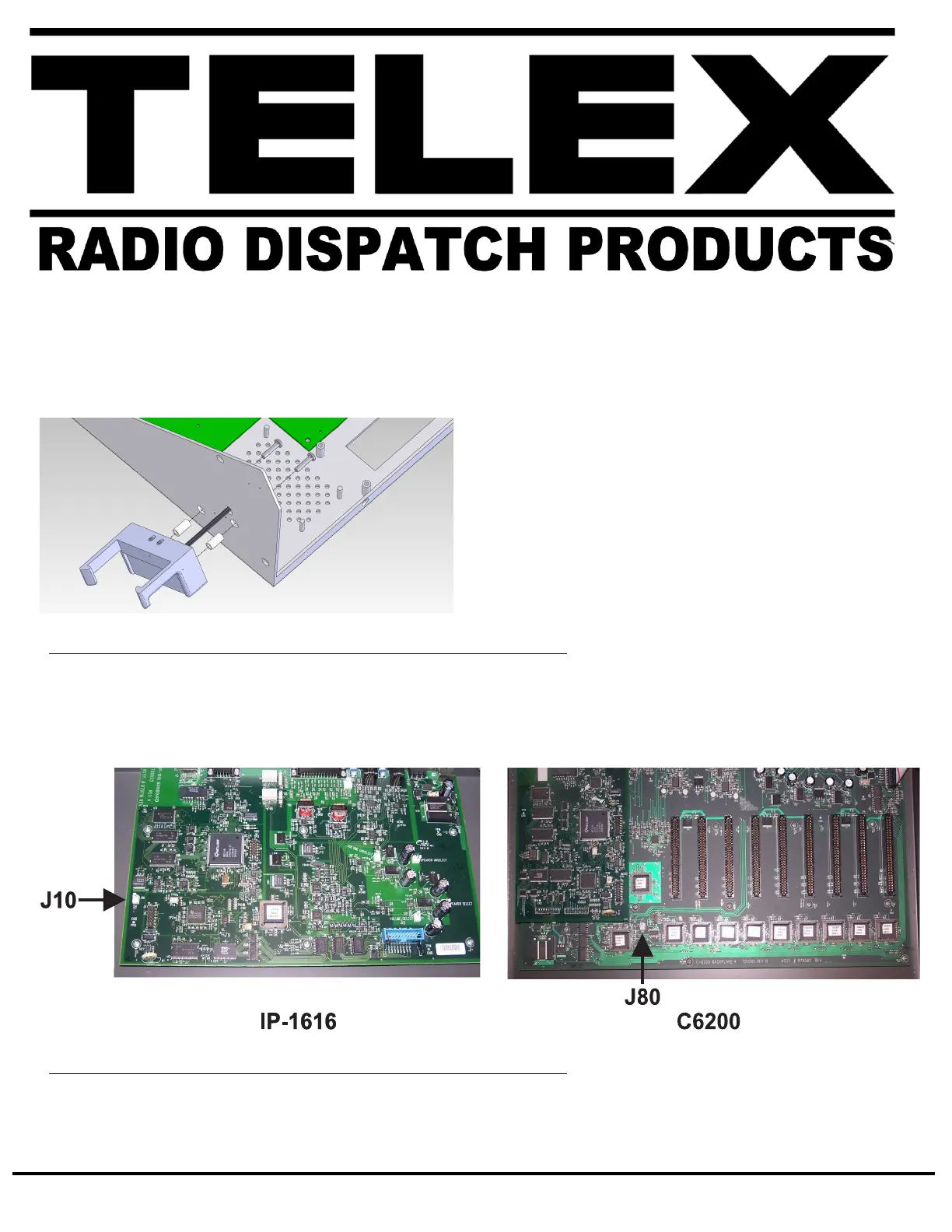

FIGURE 7. Securing Hanger to the Standoff
FIGURE 8. IP-1616 and C6200
