Leave head unit in protective packaging until housing and is
securely installed, conduit has been run, and wiring has been
pulled (electrical and data if required).
Once the housing and electrical work is done, open the end of
the box marked “open this end”.
Remove the round foam plug.
Remove the hardware bag rst, then slide the cable out of the
box rst.
Finally slide the station head together with its bag out of the
box
Retain the box and packaging in case it is needed for return or
swap of equipment. Store the box in a dry place.

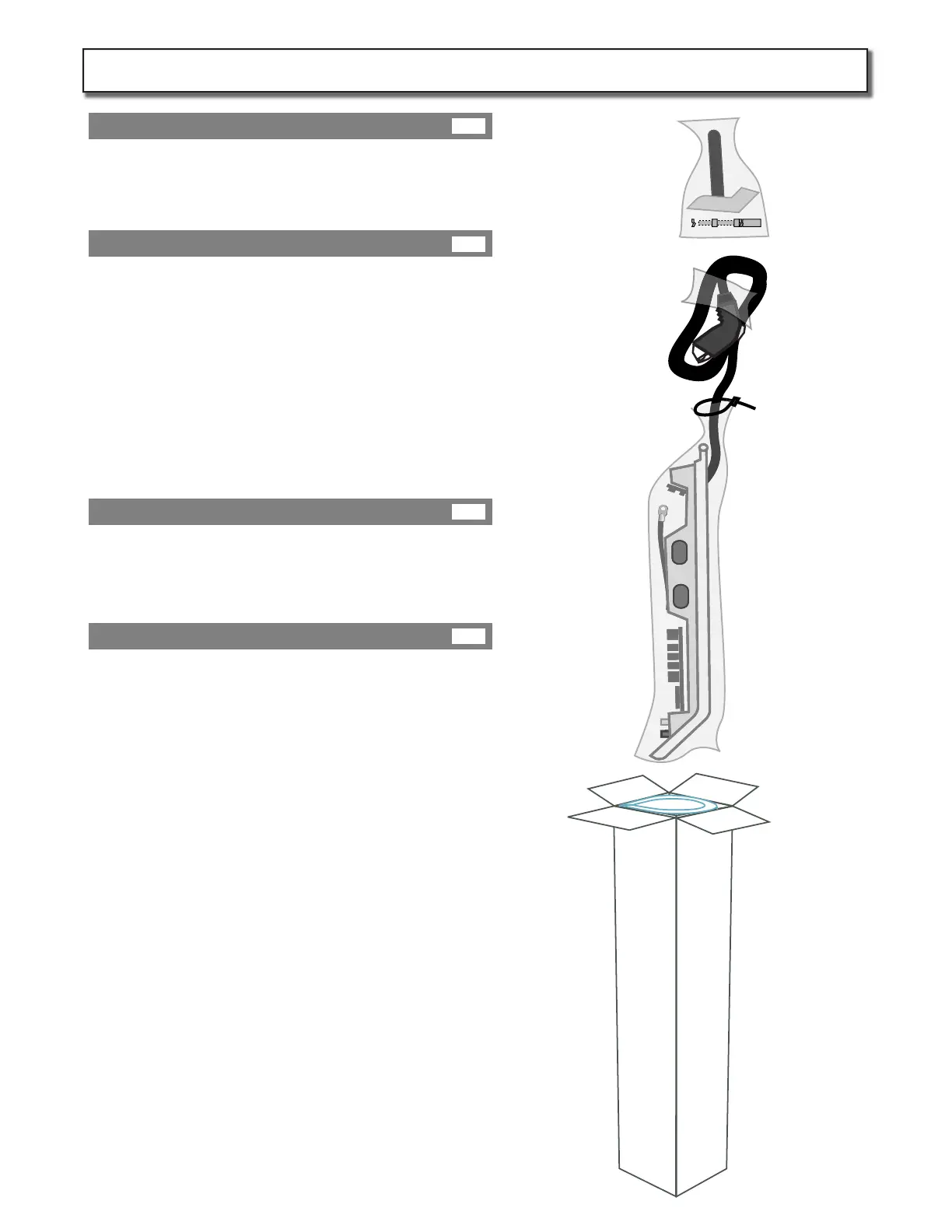

If repacking is required. First place the station head the
anti-static bag. Secure neck of bag with tie.
Roll cable up in to an 15” diameter coil. Leave a 6” between
cable coil and head unit. Compress the coil as shown and tie
with cling-lm or plastic ties.
Please do not use sticky tape!
Insert the station head (in its bag) top down into the box. It will
be a tight t. Push it down until it reaches the bottom.
Next insert the compressed cable and push it down until it is 2
inches below the end of the box. Finally insert the round foam
plug.
Keep head in protective box
Unpack Head
Retain Box
Repacking if required
Page 8
Unpack Head Unit:
8A
8B
8C
8D
KIT302-IM-20140501
