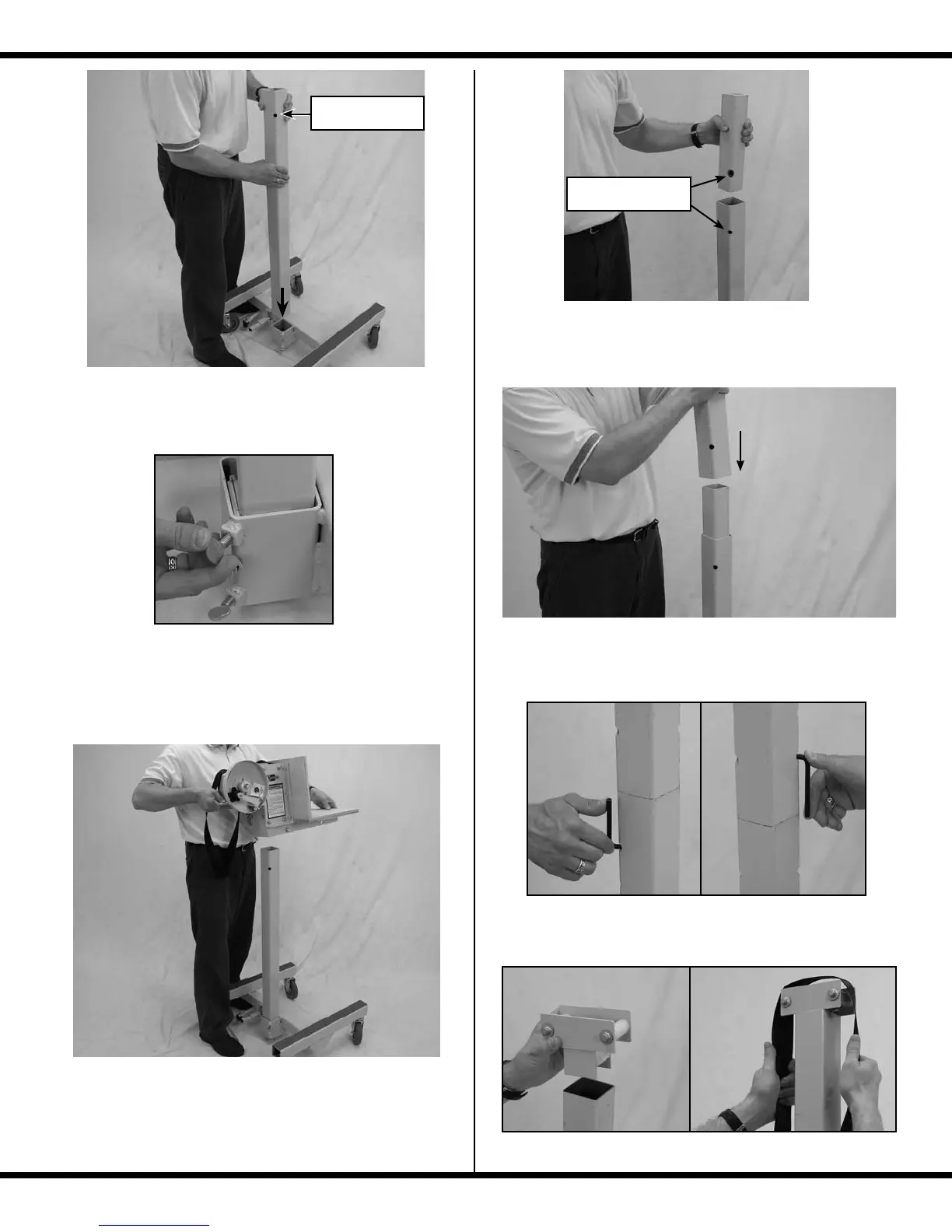

ASSEMBLY - Dolly Base Configuration
5. Fit the second boom section over the split boom con-
nector. Align the corner access holes with those of the
lower section.
7. Insert the top roller assembly then position the strap
over the top rollers, raising the Collar up the Boom.
3
1. Install either of the boom sections into the dolly
base. Make sure the holes in the corner of the tube are
up.
Make sure corner
holes are up.
3. Let out about a 2’ loop of strap on the Collar Assem-
bly and slide the Collar Assembly over the boom tube.
MAKE SURE the seat of the Collar Assembly is
oriented on the same side as the longer base legs as
shown.
4. Insert the split boon connector. Align the set screws
with the access holes in the boom tube
Align set screws
with access holes.
6. Using the hex key stored on the collar assembly, tight-
en both set screws on the split boom connector securely.
2. Tighten both lock screws on the dolly base to hold
the boom tube securely.
