09. Appendix 3 – LCD page display

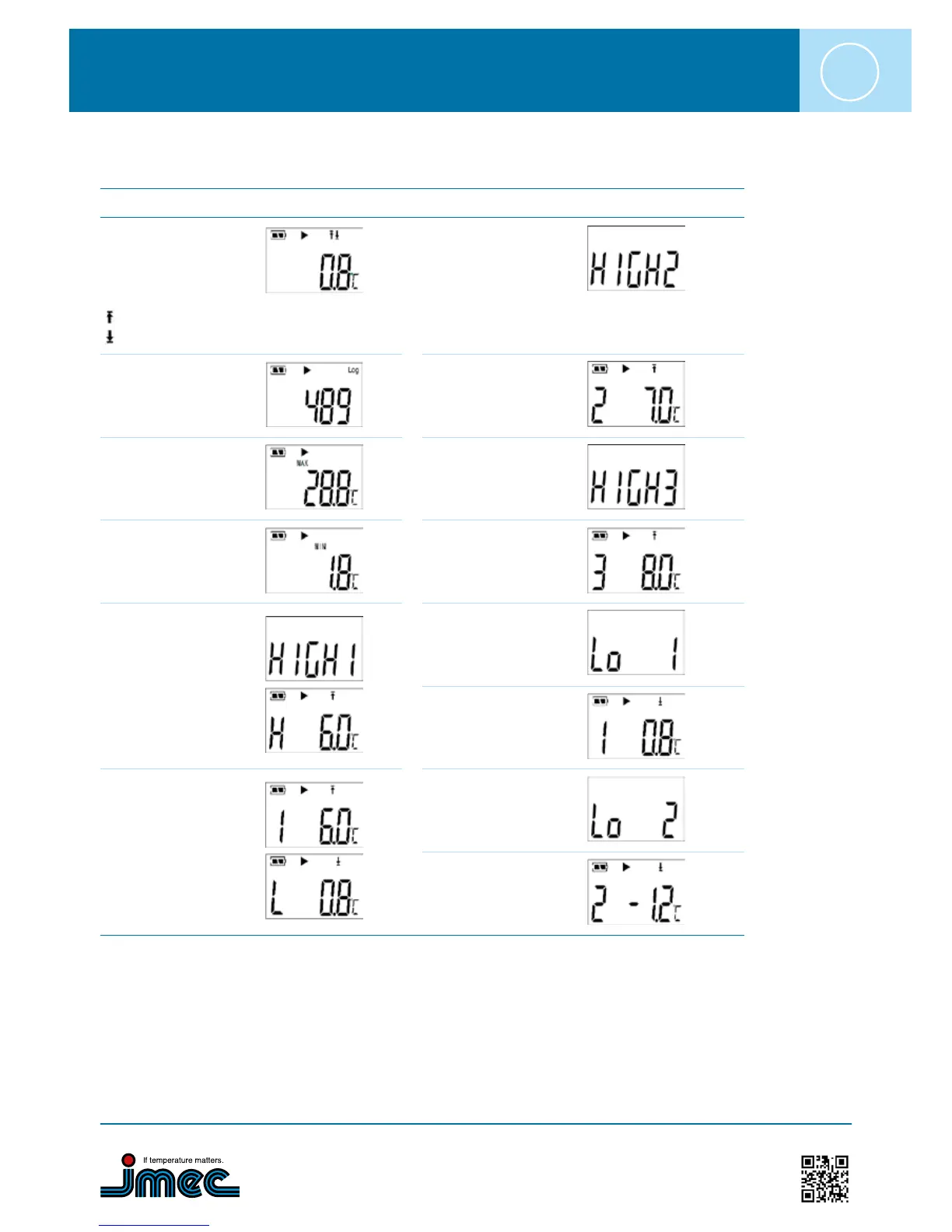

Page LCD display Page LCD display
Page 1
Battery level, current
working status (record,
stop, etc.) upper/lower limit
status, current temperature
upper limit alarm occurs
lower limit alarm occurs
Page 7
Upper limit 2
Page 2
Battery level, current
working status,
recording points
Page 8
Setting temperature of
upper limit 2
Page 3
Battery level, current
working status, MAX.
temperature
Page 9
Upper limit 3
Page 4
Battery level, current
working status, MIN.
temperature
Page 10
Setting temperature of
upper limit 3
Page 5
Upper limit 1
Page 11
Lower limit 1
Page 12
Setting temperature of
lower limit 1
Page 6
Setting temperature of
upper limit 1
Page 13
Lower limit 2
Page 14
Setting temperature of
lower limit 2
