O.A. Outdoor Air
S.A.
8
5
S.A. Supply Air
1. Dual supply air fans.
2. DX cooling coil.
3. Filters.
4. Spring return mixed air damper actuator.
5. Outdoor air damper.
6. Hot water coil. Optional electric or steam
coil available.
7. Drain pan.

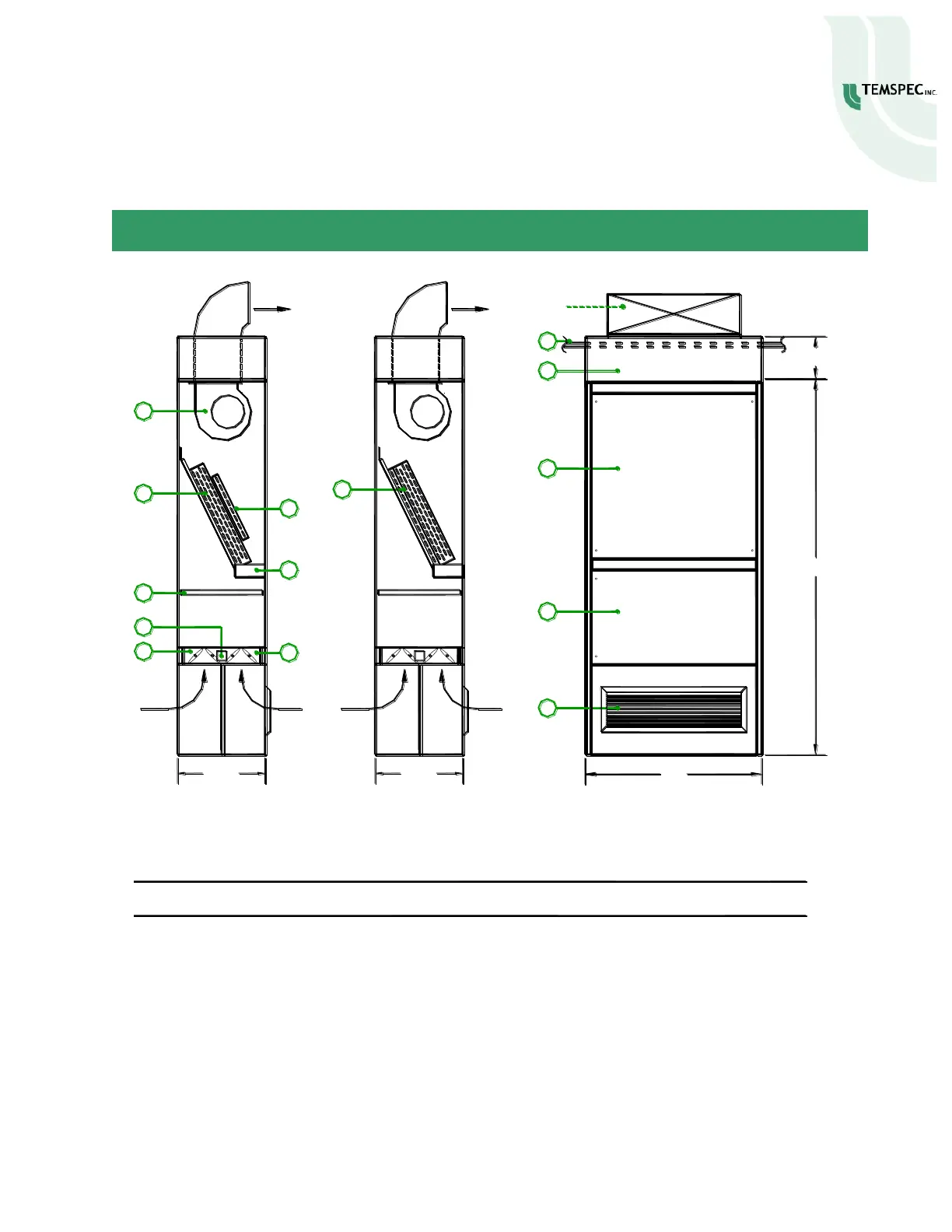

SIDE SECTION
(Split System DX)
O.A.
23"
O.A.
R.A.
SIDE SECTION
(Hot Water /
Chilled Water)
23"
4
1
2
3
9
7
6
CW
HW
S.A.
R.A. Return Air
8. Return air damper.
9. 2 pipe or 4 pipe (hot water coil can be
in the reheat position).
10. Ceiling tile.
11. Top extension (optional).
12. Coil access panel.
13. Hinged filter access panel.
14. Heavy duty return air grille.
FRONT ELEVATION
R.A.
14
44"
13
12
11
10
Duct By
Others
93"
H
