Tenda AC10 User Manual

94

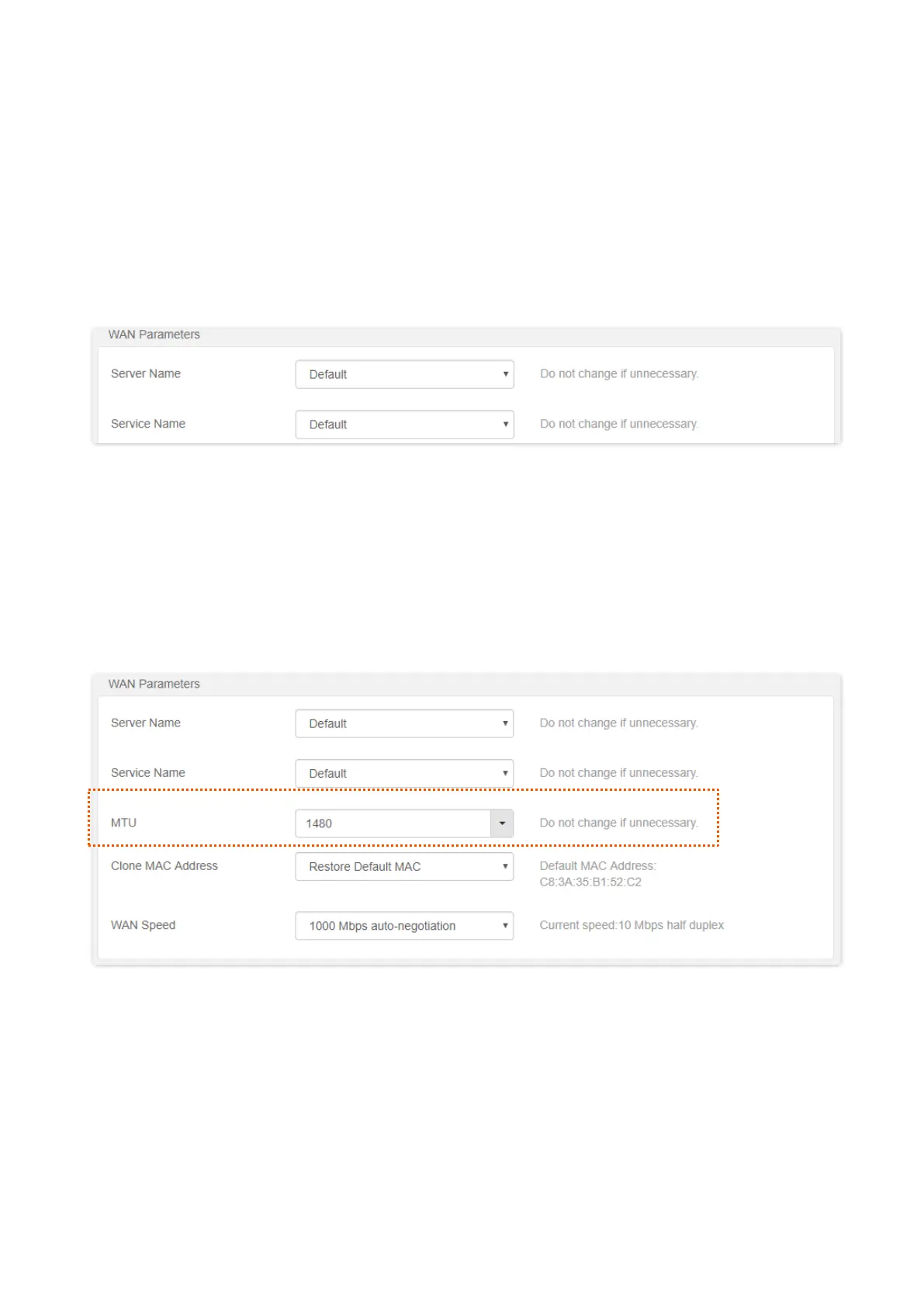

11.2 WAN parameters
11.2.1 Change the server name and service name
When the connection type is PPPoE, you may need to set the server name and service name.
These parameters provided by your ISP, if any, need to be configured after you have set up your
internet connection. Otherwise, keep the default settings.
To access the configuration page, log in to the web UI and choose Administration > WAN
Parameters.
11.2.2 Change the MTU value
MTU (Maximum Transmission Unit) is the largest data packet transmitted by a network device.
When the connection type is PPPoE, the default MTU value is 1480. When the connection type is
dynamic IP address or static IP address, the default MTU value is 1500. Do not change the value
unless necessary. If you need to, please refer to the following instructions.
To access the configuration page, log in to the web UI of the router, and choose Administration >
WAN Parameters.
Generally, the default value is recommended. Try to change the MTU value when:
− You cannot access some specific websites or encrypted websites (such as E-banking
or Paypal websites).
− You cannot receive or send Emails or access an FTP or POP server.
You can try reducing the value of MTU gradually from 1500 until the problem is resolved (The
recommended range is 1400 to 1500).

Tenda AC10 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Product type	Tabletop router
Product color	Black
LED indicators	LAN, System, WAN, WLAN, WPS
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Transmit power	23 dBmW
Antennas quantity	4
Antenna gain level (max)	5 dBi
VPN support	PPTP Client, PPTP Server, L2TP Client
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Output current	2 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN (RJ-45) ports	3
Cables included	LAN (RJ-45)
Package type	Box
Package weight	810 g
Number of products included	1 pc(s)
Firewall security	Forbid UDP Flood Attack, Forbid TCP Flood Attack, Forbid ICMP Flood Attack, Forbid WAN Ping from Internet, PPTP Pass Through, L2TP Pass Through, IPSec Pass Through
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Certification	CE, FCC, RoHS, BSMI, NCC, EAC, IC
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	390 mm
Width	198 mm
Height	70 mm
Weight	350 g
