Examples of IPv6 tunnel configuration
6in4 tunnel

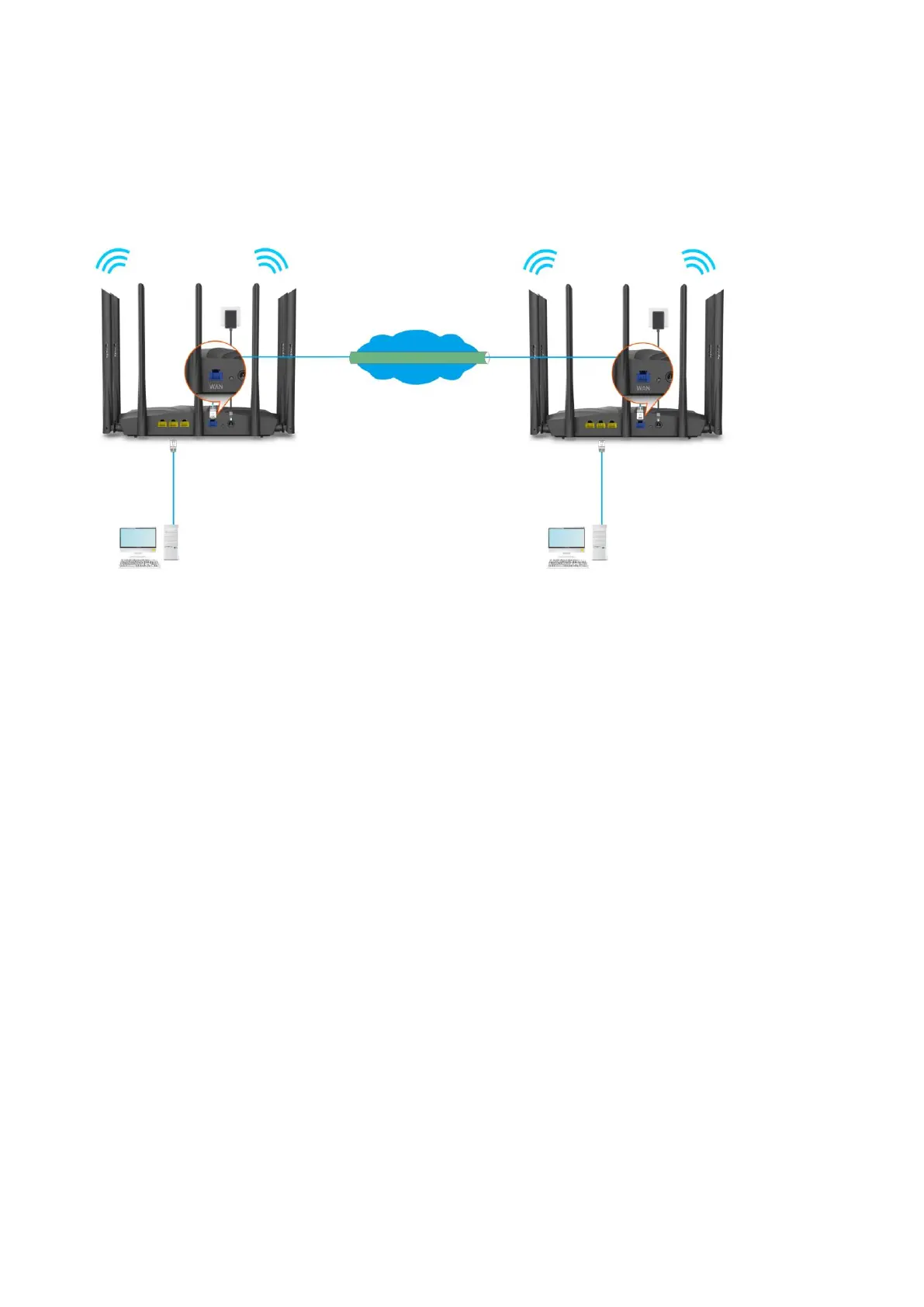

As shown below, the two routers support dual stack protocol. To achieve the communication
between the two hosts, you can configure the 6in4 tunnel.
Assume that the two routers are connected to IPv4 network and obtain public IPv4 addresses.
Configuring procedure:
Step 1 Configure the Router 1.
1. Start a web browser on a device connected to the router 1 and visit tendawifi.com to log
in to the web UI of the router.
2. Choose IPv6.
3. Enable the IPv6 function.
4. Set the connection type to 6in4 Tunnel.
5. Enter the WAN IPv4 address of the device at the peer side, which is 1.1.2.1 in this
example.
6. Customize the local IPv6 address, which is 2001:10::1/64 in this example.
7. Set the IPv6 LAN prefix length, which is 2001:1::/64 in this example.
8. Click Save.
WAN IPv6: 2001:10::1/64
LAN IPv6 prefix: 2001:1::/64
WAN IPv4: 1.1.1.1
WAN IPv6: 2001:10::2/64
LAN IPv6 prefix: 2001:2::/64
WAN IPv4: 1.1.2.1
IPv6 computer 1
2001:1::560:febc:add:9379
IPv6 computer 2
2001:2::1036:66d1:a340:aac6
Router 1
Router 2
IPv4
6in4

Tenda AC23 Specifications

General

USB port	No
DC-in jack	Yes
Connectivity technology	Wireless
Ethernet LAN (RJ-45) ports	3
Product type	Tabletop router
Product color	Black
LED indicators	LAN, System, WAN, WLAN, WPS
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	2033 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	1733 Mbit/s
VPN support	IPsec, L2TP, PPTP
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Transmit power	20/23 dBmW
Antennas quantity	7
Antenna gain level (max)	6 dBi
Output current	1.5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Certification	CE/FCC/RoHS
Processor cores	2
Processor frequency	1000 MHz
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	144.3 mm
Width	238.9 mm
Height	40.3 mm
