76

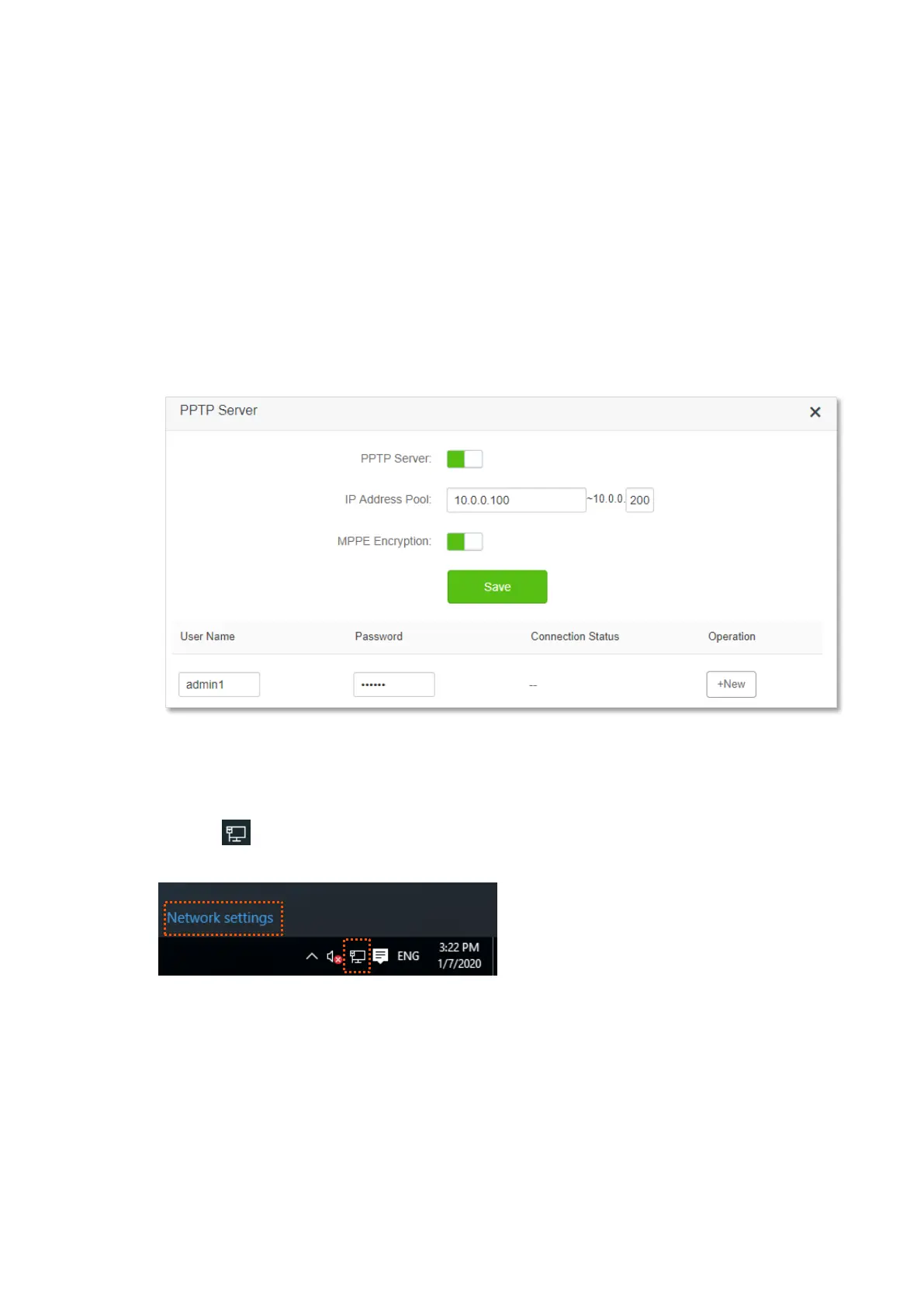

Configuring procedure:
Step 1 Start a web browser on a device connected to the router and visit tendawifi.com to log in
to the web UI of the router.
Step 2 Choose VPN > PPTP Server.
Step 3 Enable the PPTP Server.
Step 4 Enable the MPPE Encryption, which means that the encryption digit remains the default
value “128”.
Step 5 Set the User Name and Password of the PPTP server, which are admin1 in this example.
Step 6 Click +New.
Step 7 Click Save.
---End
When completing the configurations, internet users can access the FTP server by following these
steps:
Step 1 Click the icon at the bottom right corner on the desktop, and then click Network
settings.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Tenda AC23 and is the answer not in the manual?

Tenda AC23 Specifications

General IconGeneral
USB portNo
DC-in jackYes
Connectivity technologyWireless
Ethernet LAN (RJ-45) ports3
Product typeTabletop router
Product colorBlack
LED indicatorsLAN, System, WAN, WLAN, WPS
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standardWi-Fi 5 (802.11ac)
WLAN data transfer rate (max)2033 Mbit/s
WLAN data transfer rate (first band)300 Mbit/s
WLAN data transfer rate (second band)1733 Mbit/s
VPN supportIPsec, L2TP, PPTP
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN interface typeGigabit Ethernet
Transmit power20/23 dBmW
Antennas quantity7
Antenna gain level (max)6 dBi
Output current1.5 A
Output voltage12 V
AC input voltage100 - 240 V
Power source typeAC
AC input frequency50 - 60 Hz
CertificationCE/FCC/RoHS
Processor cores2
Processor frequency1000 MHz
Cables includedLAN (RJ-45)
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90 %
Operating relative humidity (H-H)10 - 90 %
Security algorithmsWPA, WPA-PSK, WPA2, WPA2-PSK
Harmonized System (HS) code85176990
Weight and Dimensions IconWeight and Dimensions
Depth144.3 mm
Width238.9 mm
Height40.3 mm
