Tenda AC8 Quick Installation Guide

- 5 -
Desktop mounting: The device must be horizontally mounted for safe use.
Wall-mounting:
- Recommended specifications of the plastic screws and anchors: Screw: PA3*14 mm; head
diameter: 5.2 mm; Anchor: outer diameter: 6.6 mm; inner diameter: 2.4 mm; length: 26.4 mm.
- The equipment is only suitable for mounting at heights ≤ 2m.

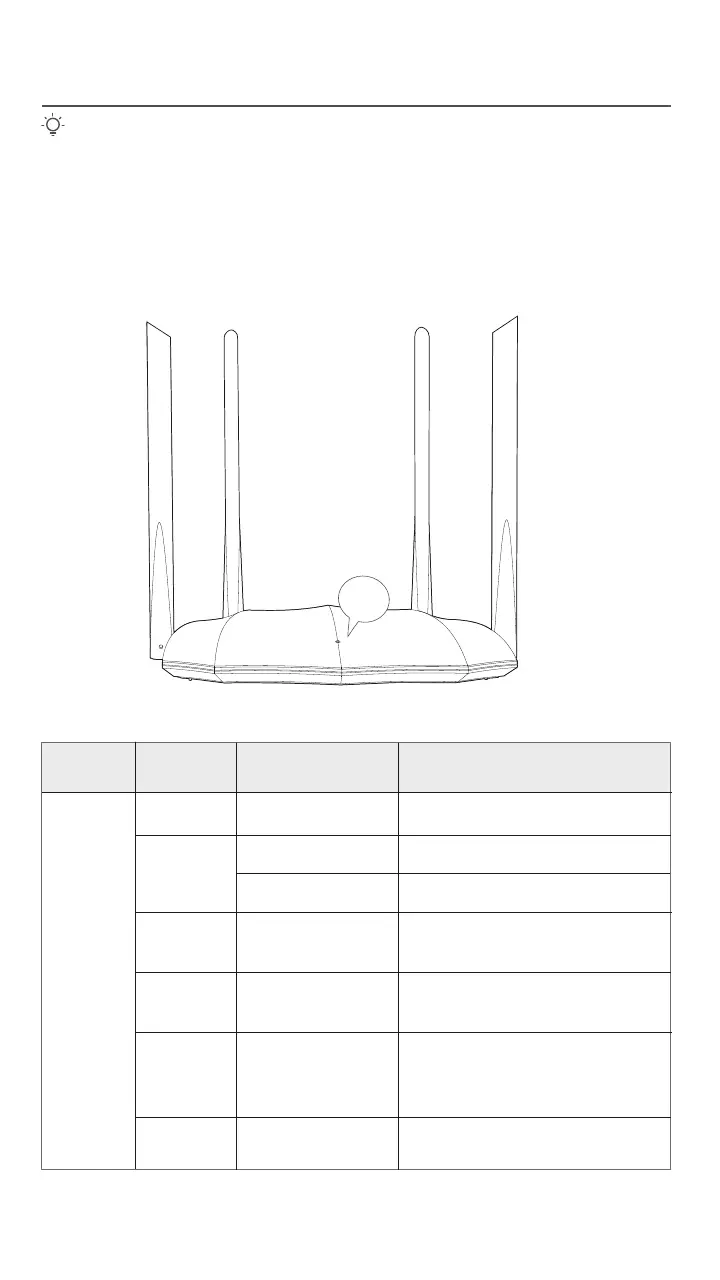

LED Indicators/Buttons/Ports/Jack
Tips
Indicador
LED
Start up
Internet
connection
Solid on
Solid on
Slow blinking
Fast blinking
Fast blinking for 3 seconds
Fast blinking for 8 seconds
Fast blinking
Resetting
Resetting
Starting up
Connected to the internet
Not connected to the internet
WPS
LED indicator
LED invdicator
Scenario Status Description
Ethernet
cable
PPPoE user
name and
PPPoE user name and password imported
successfully
Device connected to or disconnected
from an Ethernet port of the routerv
Pending for or performing WPS negotiation
(valid within 2 minutes)

Tenda AC8 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Product type	Tabletop router
Product color	Black
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Antenna gain level (max)	6 dBi
Output current	1 A
Output voltage	9 V
AC input voltage	200 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Firewall security	Forbid WAN PING from internet
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Certification	CE, FCC, CCC, SRRC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Package type	Box
Number of products included	1 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	127 mm
Width	200 mm
Height	33.6 mm
