Wall mounting hole
English
Package contents
Appearance
Զ
Է
И
Й
К
Л
М
Network Video Recorder x 1
Screwdriver×1
HDMI cable×1
1m Ethernet cable×1
18m Ethernet cable×2
30m Ethernet cable×2
Surveillance sticker×1
Quick installation guide
PoE Camera×4
Power adapter x 1
NVR installation package x 1
Camera installation package x 4
Camera mounting template×4
Mouse x 1
HDD×1
Only equipped in some kits
Screw: Thread diameter: 3.5 mm; Length: 5 mm; Head diameter: 6.5 mm
−Plastic anchor: Outer diameter: 6.6 mm; Inner diameter: 2.4 mm; Length
26.4 mm
−Screw: Thread diameter: 3 mm; Length: 25 mm; Head diameter: 6.0 mm
POWER
LED indicator
Hard disk drive
(HDD) screw hole
Power port
AUDIO OUT port
USB2.0 port
HDMI port
10/100 Mbps PoE power supply and
data transmission multiplexing port
Grounding terminal
10/100 Mbps LAN port
AUDIO IN port
VGA port
POWERPOWER PoE PORTS LAN AUDIO HDMI
OUT
1 3
2 4
VGA USB1 USB2
IN
Solid blue: Initializing.
Solid green: NVR recording.

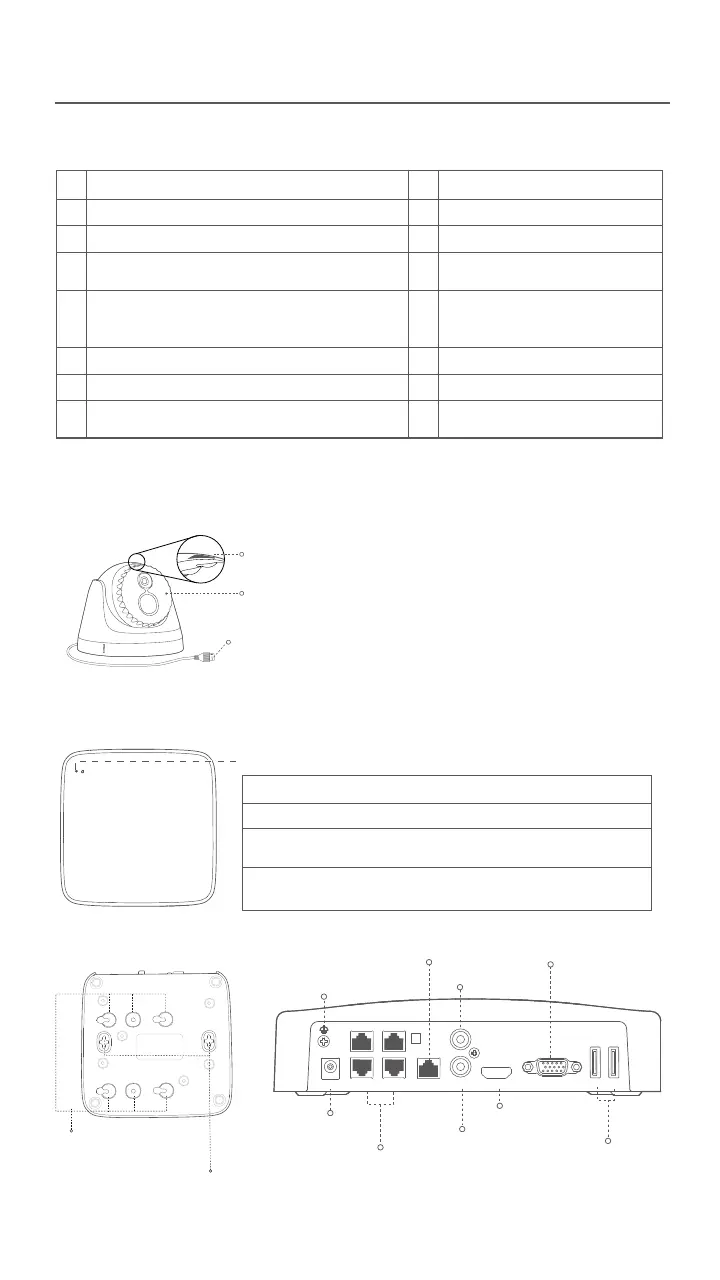

NVR (The N6P-4H is taken as an example here.)
Camera
When the arrow is at 12 o'clock position, the monitoring direction is the positive
direction.
Microphone
Ethernet port, 10/100 Mbps auto-negotiation
The camera supports the IEEE 802.3af standard, this port can be connected to
the PoE port of a PoE power sourcing equipment for power supply.
Blinking green: NVR working properly but not recording.
Solid red: NVR faulty (LAN port disconnected, or HDD faulty).
The K4P-4CR Kit is taken as an example here. The actual product prevails.
