Tenda K4P-4CR Installation Guide

-2-

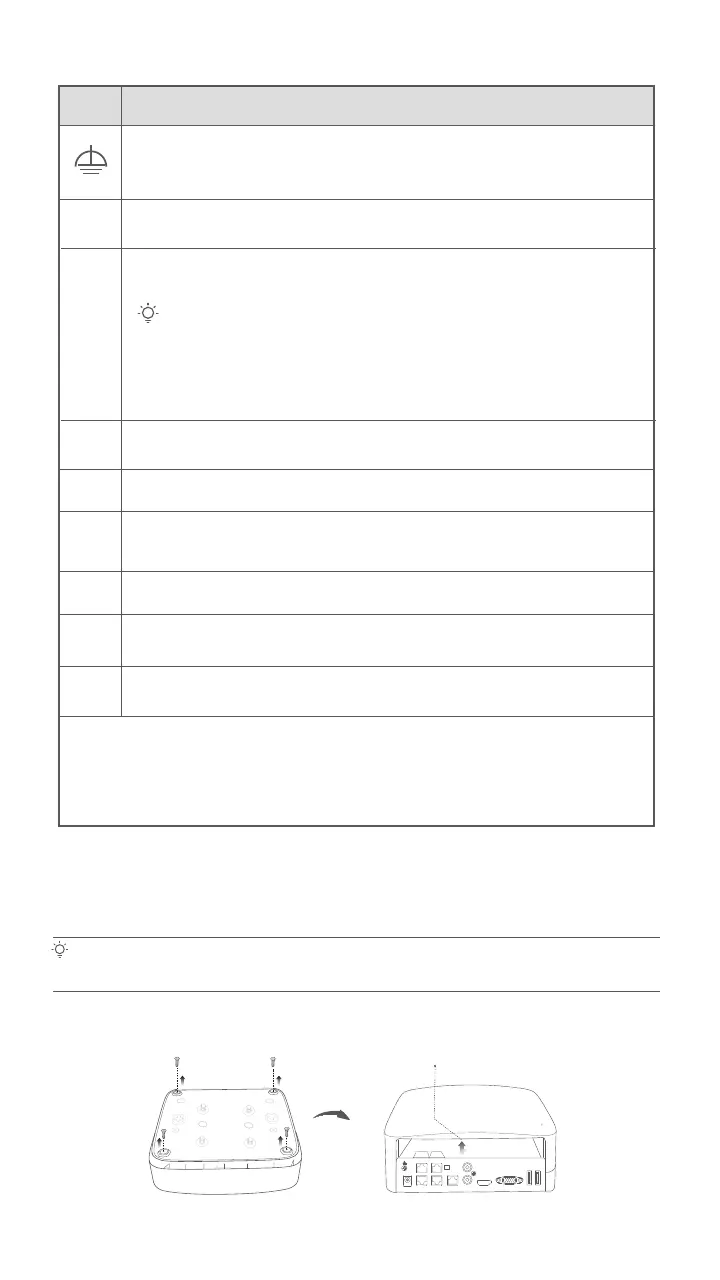

Grounding terminal.
Connect the grounding terminal of the NVR to the earth or the ground terminal of the building
with a grounding cable to prevent static electricity or lightning from damaging the NVR.
Power port.
Use the included power adapter to power on the NVR.
POWER
PoE
PORTS
LAN
AUDIO
IN
AUDIO
OUT
HDMI
VGA
USB
Fast Ethernet LAN port.
Used to connect to such devices as the router and switch.
Audio input port.
Used to connect to the audio input devices , such as pickups.
Audio output port.
Used to connect to audio output devices, such as active speakers.
HDMI port.
Connect your monitor or TV to this port using an HDMI cable for audio and video output.
VGA port.
Connect your monitor to this port using a VGA cable for video output.
USB 2.0 port.
Used to connect to such devices as a mouse and a USB storage device.
DescriptionPort
Tips
- Recommended Ethernet cable: CAT 5 or better.
- Power supply distance:
• Normal Mode (default): Up to 100m
• Long-range Mode: Up to 250m
Fast Ethernet port, which supports IEEE 802.3af/at PoE power supply. Used to connect to
cameras.
Tips
When installing or replacing the HDD, please cut off the power supply of the NVR, otherwise the HDD may not be
detected or even be damaged.
I Install the HDD
If the kit does not include any HDD, please prepare it by yourself. You are recommended to use the HDD
dedicated for surveillance.
Ԯ
Use a screwdriver to unfasten the screws, then remove the cover of the NVR. Reserve the screws for
later use.
POWER
POWER PoE PORTS LAN AUDIO HDMI
OUT
1 3
2 4
VGA USB1 USB2
IN
Flip
Remove the cover
Wall-mounting holes
Wall-mounting materials are self-prepared. Recommended specifications of the plastic
screws and anchors:
Screw: thread diameter: 3 mm, length: 14 mm; head diameter: 5.2 mm
Plastic anchor: inner diameter: 6.0 mm; length: 26.4 mm
