- 3 -
ԯ

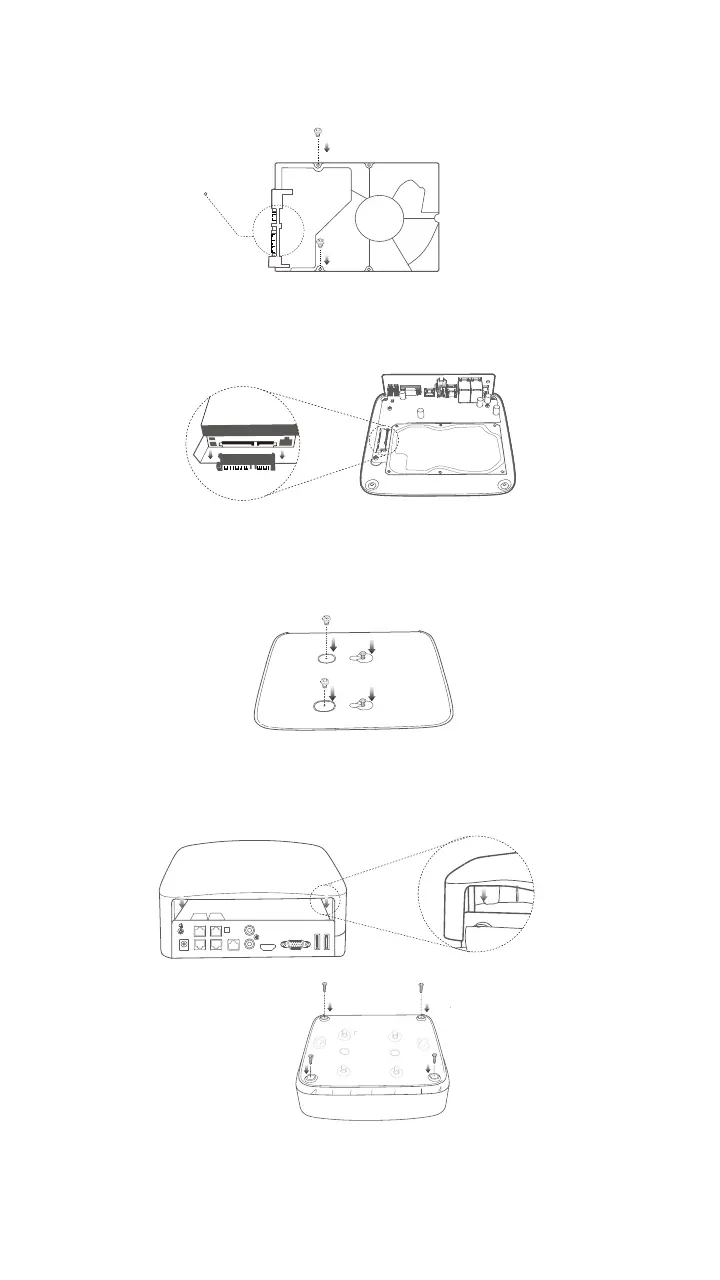

Take out 2 screws from the NVR installation package, and screw them into the two screw holes
closest to the SATA connector. Reserve about 2 mm between the screws head and the HDD for
subsequent installation.
Align the SATA connector of the HDD with the SATA slot on the motherboard of the NVR, and then
insert the HDD into the slot until it is tightly fixed.
Ա
Take out the remaining screws from the NVR installation package, and screw them into the HDD
screw holes to fix the HDD.
Բ
Mount the cover with the previously removed screws.
SATA connector
HDD
HDD
HDD
POWER
POWER PoE PORTS LAN AUDIO HDMI
OUT
1 3
2 4
VGA USB1 USB2
IN
To Next Page
