3

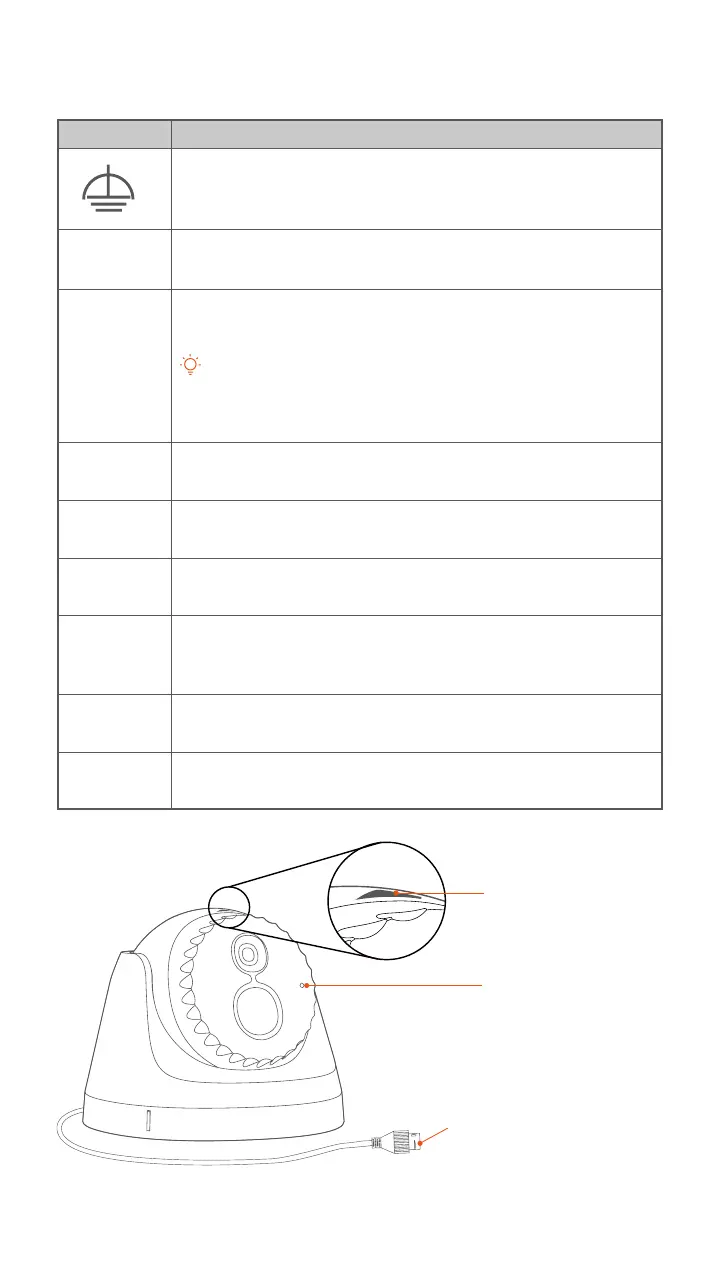

Grounding terminal.
Connect the grounding terminal of the NVR to the earth or the ground terminal of
the building with a grounding cable to prevent static electricity or lightning from
damaging the NVR.
Power port.
Use the included power adapter to power on the NVR.
10/100 Mbps auto-negotiation PoE power supply and data transmission
multiplexing port. It is used to connect to cameras.
The PoE power supply standard is IEEE 802.3af/at.
When the port is in Normal Mode (default), the power supply distance is up to 100
meters. When the port is in Long-range Mode, the power supply distance is up to
180 meters.
10/100 Mbps auto-negotiation LAN port.
Used to connect to such devices as the router and switch.
Audio input port.
Used to connect to the audio input devices, such as pickups.
Audio output port.
Used to connect to audio output devices, such as active speakers.
HDMI port.
Connect your monitor or TV to this port using an HDMI cable for audio and video
output.
VGA port.
Connect your monitor to this port using a VGA cable for video output.
USB 2.0 port.
Used to connect to such devices as a mouse and a USB storage device.
Ports
PoE PORTS
POWER
LAN
AUDIO IN
AUDIO OUT
HDMI
VGA
USB
Tips
Ports
Microphone
Ethernet port, 10/100 Mbps
auto-negotiation
When the arrow is at 12 o'clock
position, the monitoring direction is
the positive direction.
The camera supports the IEEE 802.3af
standard, this port can be connected to
the PoE port of a PoE power sourcing
equipment for power supply.
Camera
