Tenda W311R+ User Manual

11N Wireless Broadband Router
6

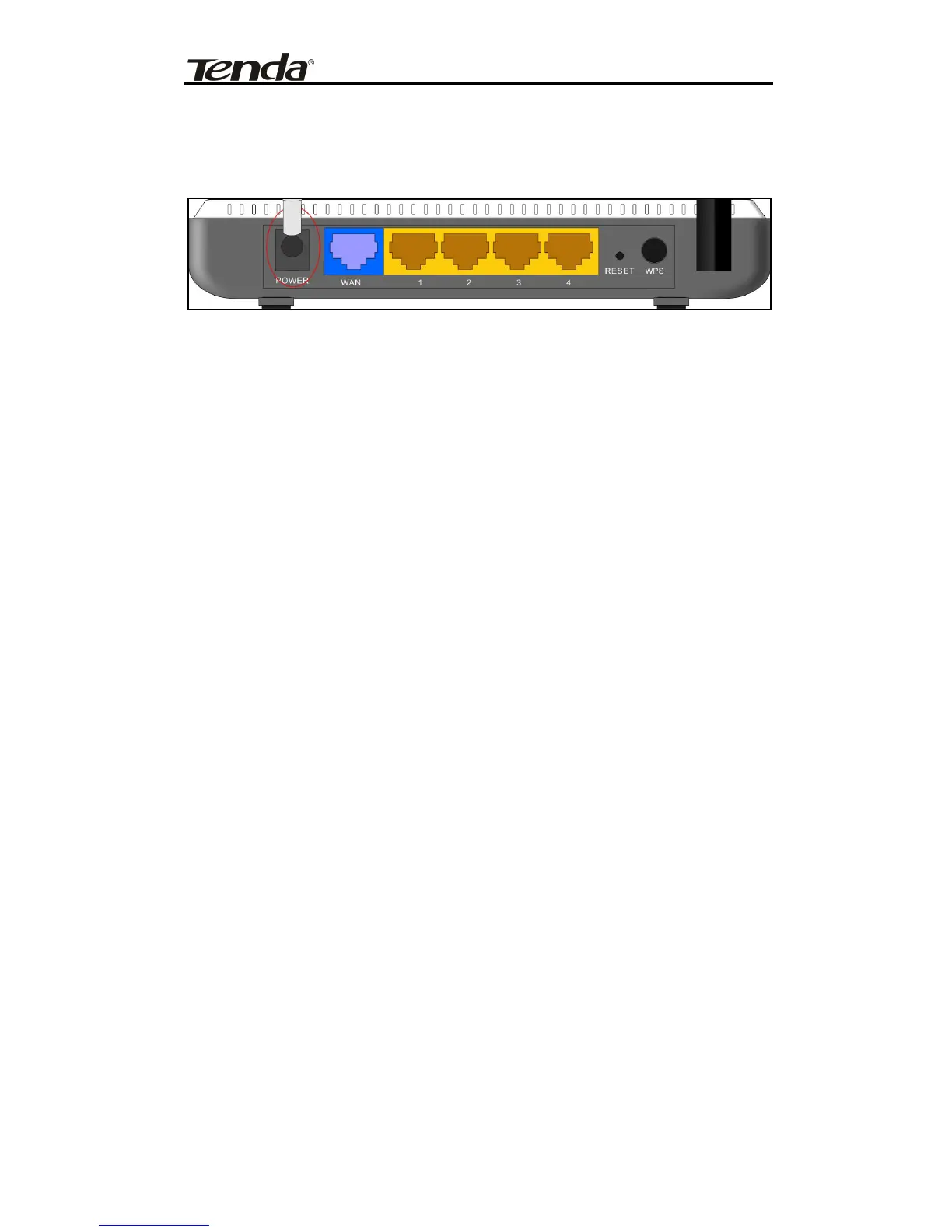

Back Panel Show:
Rear Panel :( From L to R)
¾ POWER
The jack is for power adapter connection. Please
use the included 9V DC power adapter.
¾ WAN
A 100Mbps Ethernet port can be connected with
MODEM, Switch, Router and other Ethernet device
for Internet connecting to DSL MODEM, Cable
MODEM and ISP.
¾ LAN (1, 2, 3, 4)
4 10/100Mbps Ethernet ports can be connected
with Ethernet switch, Ethernet router and NIC card.
¾ RESET
The system reset button. Press this button for 7
seconds, the settings configured in this device will
be deleted and it will restore the settings to the
default one.
¾ WPS
Press it for 1 second, the WPS feature will be
enabled and WPS indicator will be shown blinking.

Tenda W311R+ Specifications

General

VPN support	PPPoE/PPTP/L2TP
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11g, Wi-Fi 4 (802.11n)
Channels quantity	11 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Bandwidth	2.4 GHz
Rack mounting	No
Power requirements	9V DC, 1A
Minimum system requirements	Internet Explorer 5.5, Firefox 1.0+
Ethernet LAN (RJ-45) ports	3
DHCP client	-
Transmit power	0 dBmW
Antennas quantity	1
Antenna gain level (max)	3 dBi
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Certification	FCC, CE, RoHS
AC input voltage	110 - 240 V
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Product color	White
LED indicators	LAN, Power, WAN, WLAN

Weight and Dimensions

Depth	102.2 mm
Width	159.6 mm
Height	31 mm
Weight	- g
