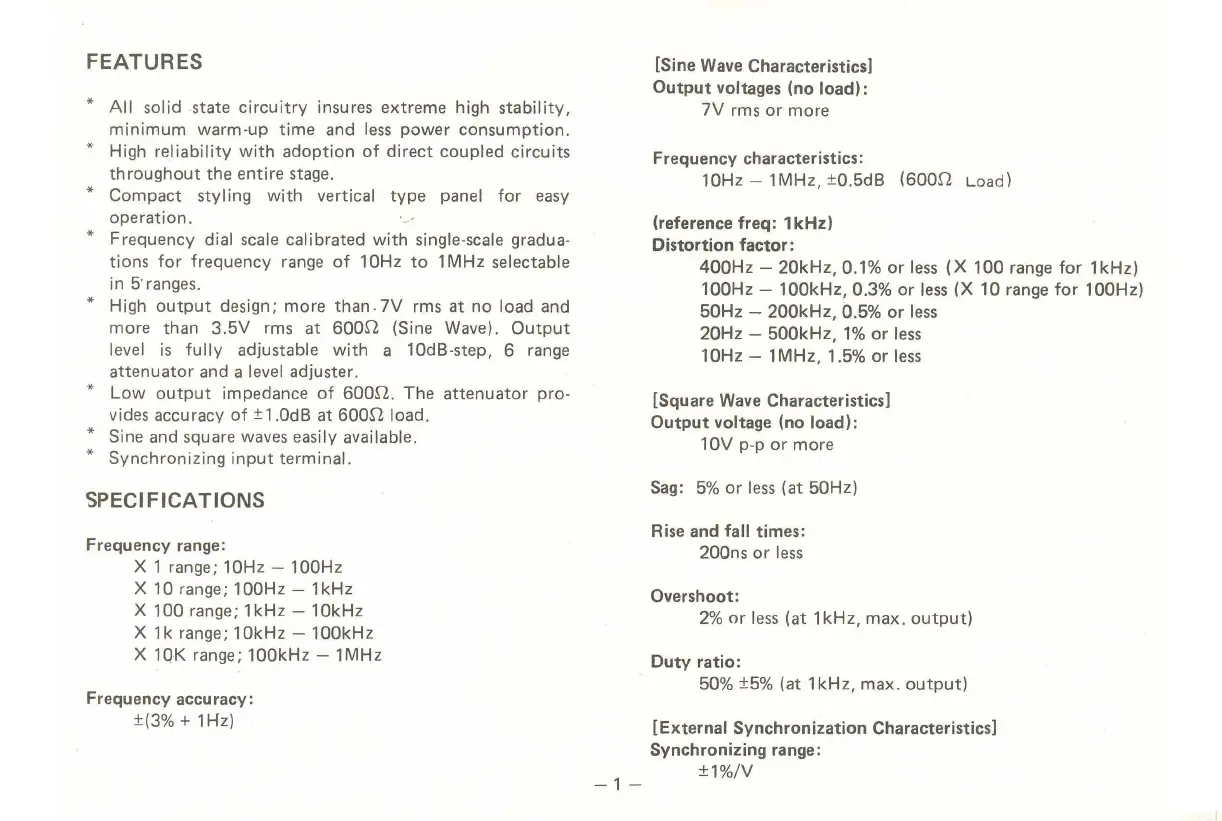

FEATURES
* All solid state circuitry insures extreme high stability,
minimum warm-up time and less power consumption.
* High reliability with adoption of direct coupled circuits
throughout the entire stage.
* Compact styling with vertical type panel for easy
operation.
* Frequency dial scale calibrated with single-scale gradua-
tions
for frequency range of 10Hz to 1 MHz selectable
in
5' ranges.
* High output design; more than. 7V rms at no load and
more than
3.5V rms at 600n (Sine Wave). Output
level is fully adjustable with a 10dB-step, 6 range
attenuator and a level adjuster.
* Low output impedance of 600n. The attenuator pro-
vides accuracy
of ±1.0dB at 600n load.
* Sine and square waves easily available.
* Synchronizing
input terminal.
SPECIFICATIONS
Frequency range:
X 1 range; 10Hz - 100Hz
X 10 range; 100Hz -
1kHz
X 100 range; 1kHz - 10kHz
X lk range; 10kHz -100kHz
X 10K range; 100kHz - lMHz
Frequency accuracy:
±(3% + 1Hz)
-1
[Sine Wave Characteristics]
Output voltages (no load):
7V rms or more
Frequency characteristics:
10Hz - lMHz, ±0.5dB (600n Load)
(reference freq: 1kHz)
Distortion factor:
400Hz - 20kHz, 0.1% or less (X 100 range for 1kHz)
100Hz -
100kHz, 0.3% or less (X 10 range for 100Hz)
50Hz
- 200kHz, 0.5% or less
20Hz - 500kHz, 1% or less
10Hz - 1MHz, 1.5% or less
[Square Wave Characteristics]
Output voltage (no load):
10V Pop or more
Sag: 5% or less (at 50Hz)
Rise and fall times:
200ns or less
Overshoot:
2% or less (at 1 kHz, max. output)
Duty ratio:
50% ±5% (at 1 kHz, max. output)
[External Synchronization Characteristics]
Synchronizing range:
±1%/V
