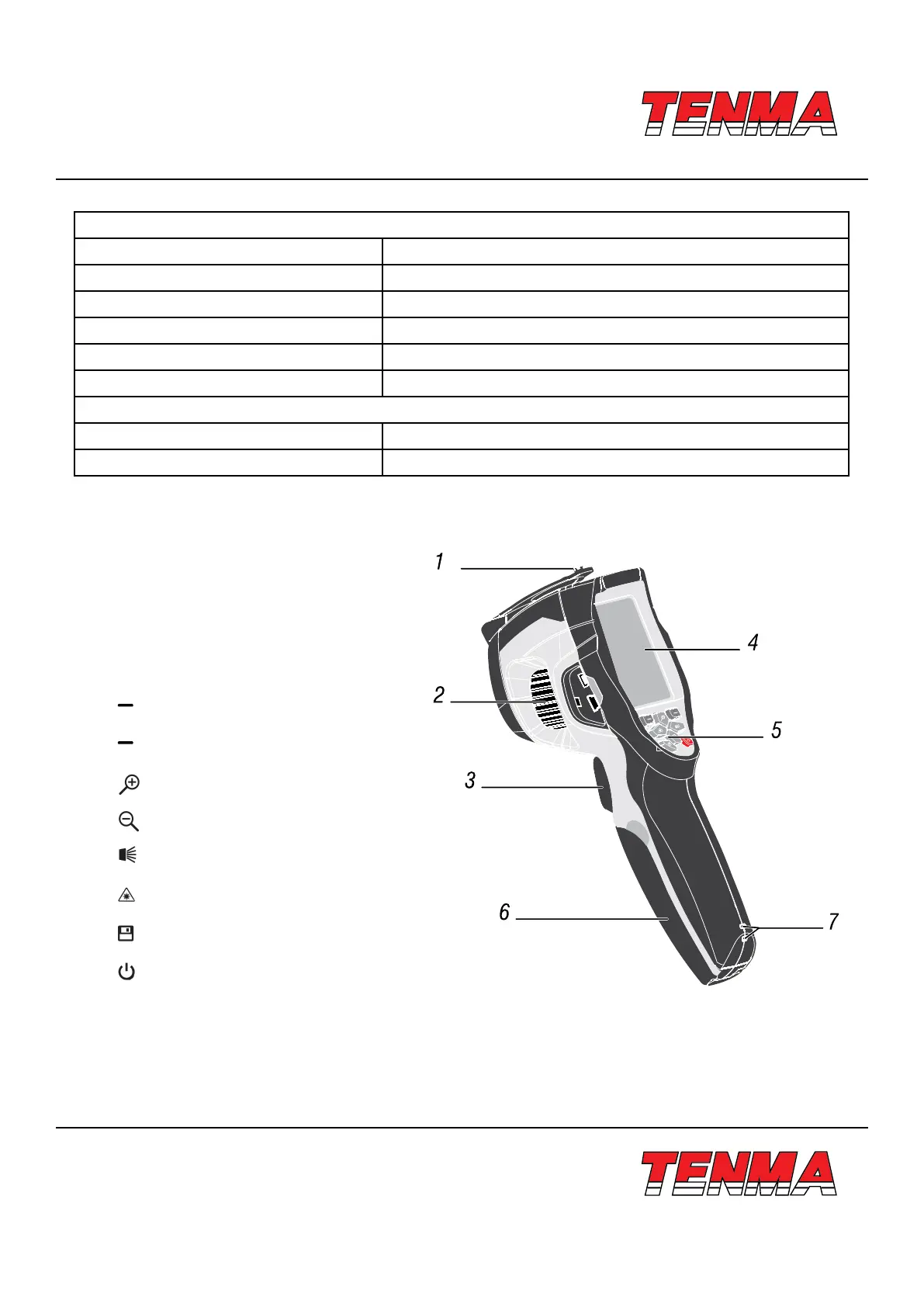

5 - Structure Description
5.1 - Back View
1 - Infrared Camera Lens Cover
2 - Lens Focus Adjuster
3 - Trigger
4 - LCD Display
5 - Buttons
(Lett) Menu/OK Button
(Right) Lock/Cancel Button
Up/Zoom out Button
Down/Zoom in Button
Right/Light Button
Left/Laser Button
Files Browse Button
Power Button
6 - Battery Box
7 - Holes for Non-slip Strap
Environmental Data
Operating Temperature Range -15°C to +50°C (5°F to +122°F)
Storage Temperature Range -40°C to +70°C (-40° F to +158°F)
Humidity (Operating and Storage) 10% to 90%
Drop Test 2m
Bump 25g (IEC60068-2-29)
Vibration 2g (IEC60068-2-6)
Physical Data
Camera Weight incl. Battery <500g
Camera Size (L × W × H) 224×77×96
