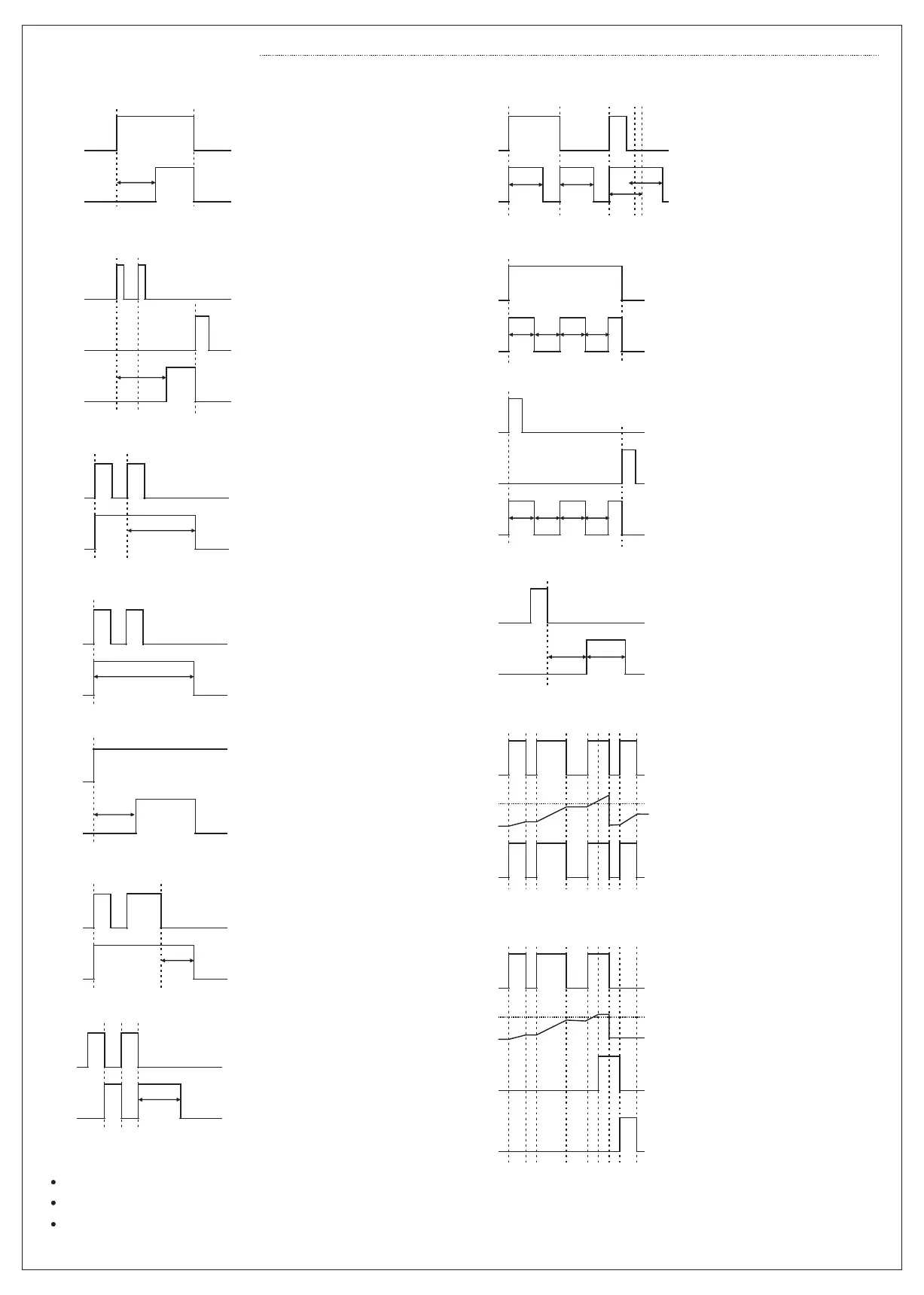

Modes of Operation:
Mode: 1; Pulsed Delay, OFF with RESET
Start
Reset
Out
t.SEt
Out becomes ON “t.SEt” after
START input is triggered
(OFF > ON) . START input can
not re-trigger timer until it is
reset with RESET input.
Out is OFF when RESET input
is ON.
4
For modes 8 & 9; t.On and t.oFF are accepted as min. 000.1 sec, 00.01 and 00.01 hour.
Timer counts up for mode 11 & 12, and down for other modes.
For all modes; counting is inhibited (or frozen) when GATE is ON.
Notes:
Mode: 0; ON Delay
Start
Out
t.SEt
Out becomes ON “t.SEt” after
START input is ON. Out is
OFF when START input is
OFF. Out is OFF when RESET
input is ON.
Mode: 2; Re-triggerable On Shot
Mode: 3; Non-retiggerable One Shot
Mode: 4; Delay after Power ON
Start
Out
t.SEt
Start
Out
t.SEt
Start
Out
t.SEt
Out becomes ON when START
input is triggered (OFF > ON)
and becomes OFF after “t.SEt”.
START input can re-trigger
when Out is ON. Out is OFF
when RESET input in ON.
Out becomes ON when START
input is triggered (OFF > ON)
and becomes OFF after “t.SEt”.
START input can not re-trigger
when Out is ON. Out is OFF when
RESET input is ON.
Mode: 5; OFF Delay
Mode: 6; One Shot after ON
Start
Out
t.SEt
Start
Out
t.SEt
Out becomes ON when START
input is ON. Out becomes OFF
“t.SEt” after START input is
triggered (ON > OFF). Out is
OFF when RESET input is ON.
Out becomes ON when START
input is triggered (ON > OFF)
and becomes OFF after “t.SEt”.
Out is OFF when START is ON.
Tx is OFF when RESET is ON.
Out becomes ON “t.SEt” after
Power ON. START input does
not trigger timer. Out is OFF
when RESET input is ON.
Mode: 7; One Shot after ON and OFF
Start
Out
t.SEt t.SEt t.SEt t.SEt
Out becomes ON when START
input is triggered (OFF > ON)
or (ON > OFF) and becomes
OFF after “t.SEt”. START input
can re-trigger when Out is ON.
Out is OFF when RESET input
is ON.
Mode: 8; Flashing with START
Start
Out
t.On t.Ont.OFF t.OFF
Out is periodically first ON for
“t.On” and then OFF for “t.oFF”
when START input is ON. Out is
OFF when START input is OFF.
Tx is OFF when RESET input is ON.
Mode: 9; Flashing with START/RESET
Start
Reset
Out
t.On t.Ont.OFF t.OFF
Out is periodically first ON for
“t.On” and then OFF for “t.oFF”
after START input is triggered
(OFF > ON). Out is OFF when
RESET input is ON.
Mode: 10; Delayed One Shot after OFF
Start
Out
tA tB
Out is first ON after “tA” and then
OFF after “tB” when START is
triggered (ON > OFF). START input
does not-retrigger before “tB”
elapses. Out is OFF when RESET
input is ON.
Mode: 11; Chronometer - Count with START
Out is ON and timer counts up when
START in ON. Timer freezes when
START is OFF. Timer resets when
START is OF if timer has elapsed
“t.SEt” time. Out is OFF when
RESET input is ON.
Gösterge
Start
t.SEt
Out
Mode: 12; Chronometer - Count with START,
Reset with RESET
Timer counts up when START is ON.
Timer freezes when START is OFF.
Out is ON if timer has elapsed
“t.SEt” time. Timer resets and
Out is OFF when RESET input is ON.
Gösterge
Start
t.SEt
Out
Reset
