MULTI 500F
MULTI 500F MULTI 500FW

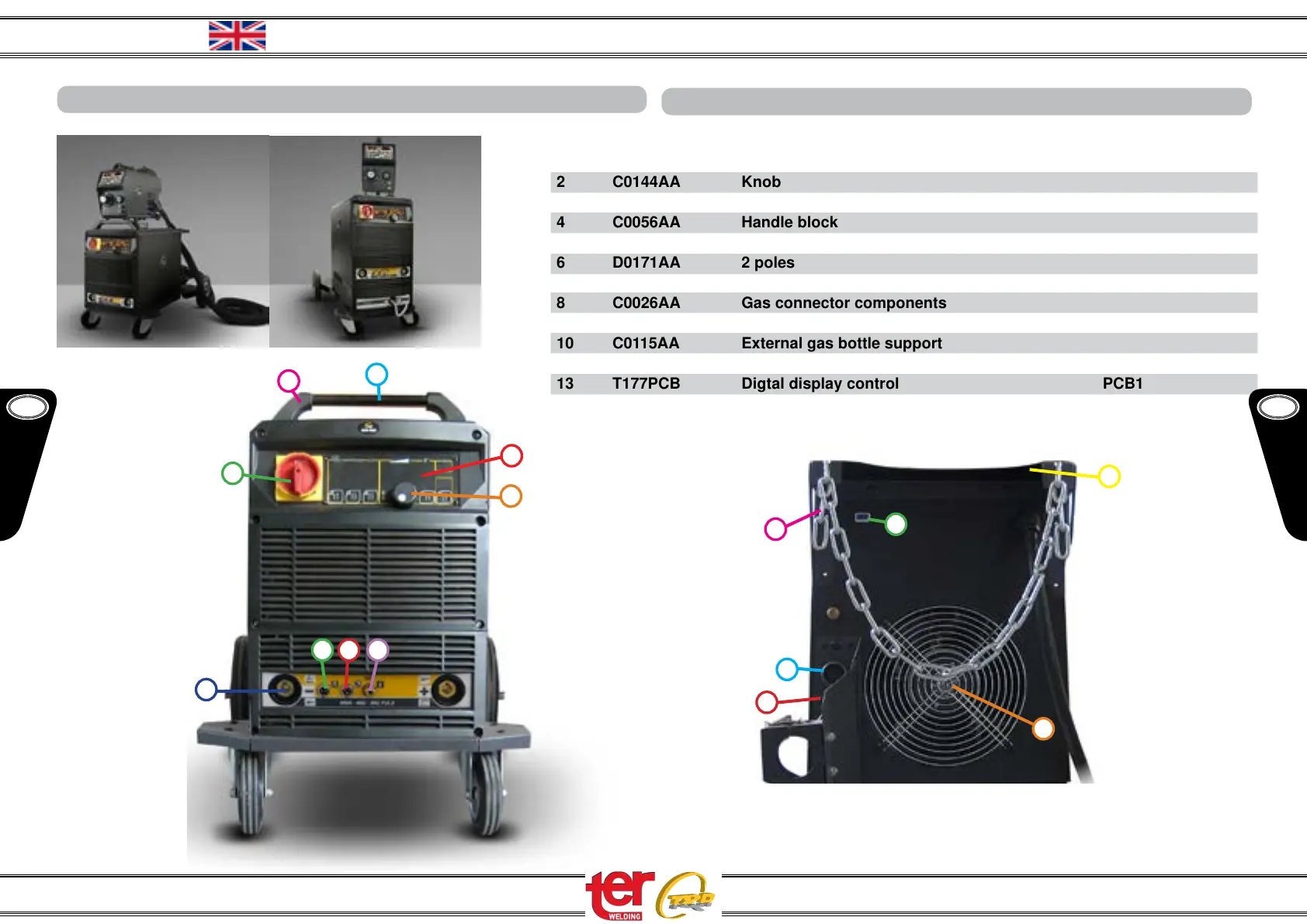

N° CODE DESCRIPTION Rif. WELDING DIAGRAM
1 D0170AA Universal switch 60A S1
2 C0144AA Knob
3 C0054AA Handle block
4 C0056AA Handle block
5 B0078AA Fast socket
6 D0171AA 2 poles
7 D0202AA 5 poles
8 C0026AA Gas connector components
9 D0190AA Chain
10 C0115AA External gas bottle support
12 B0104AA Backside 14 poles socket
13 T177PCB Digtal display control PCB1
14 D0175AA Fan net
Spare Parts Multi 500F
