Ter Welding Multi 400K - Page 35

GB
English
Instruction Manual
16
32
20
21
22
25
26
17
30
24
23
33
28
29
27
12

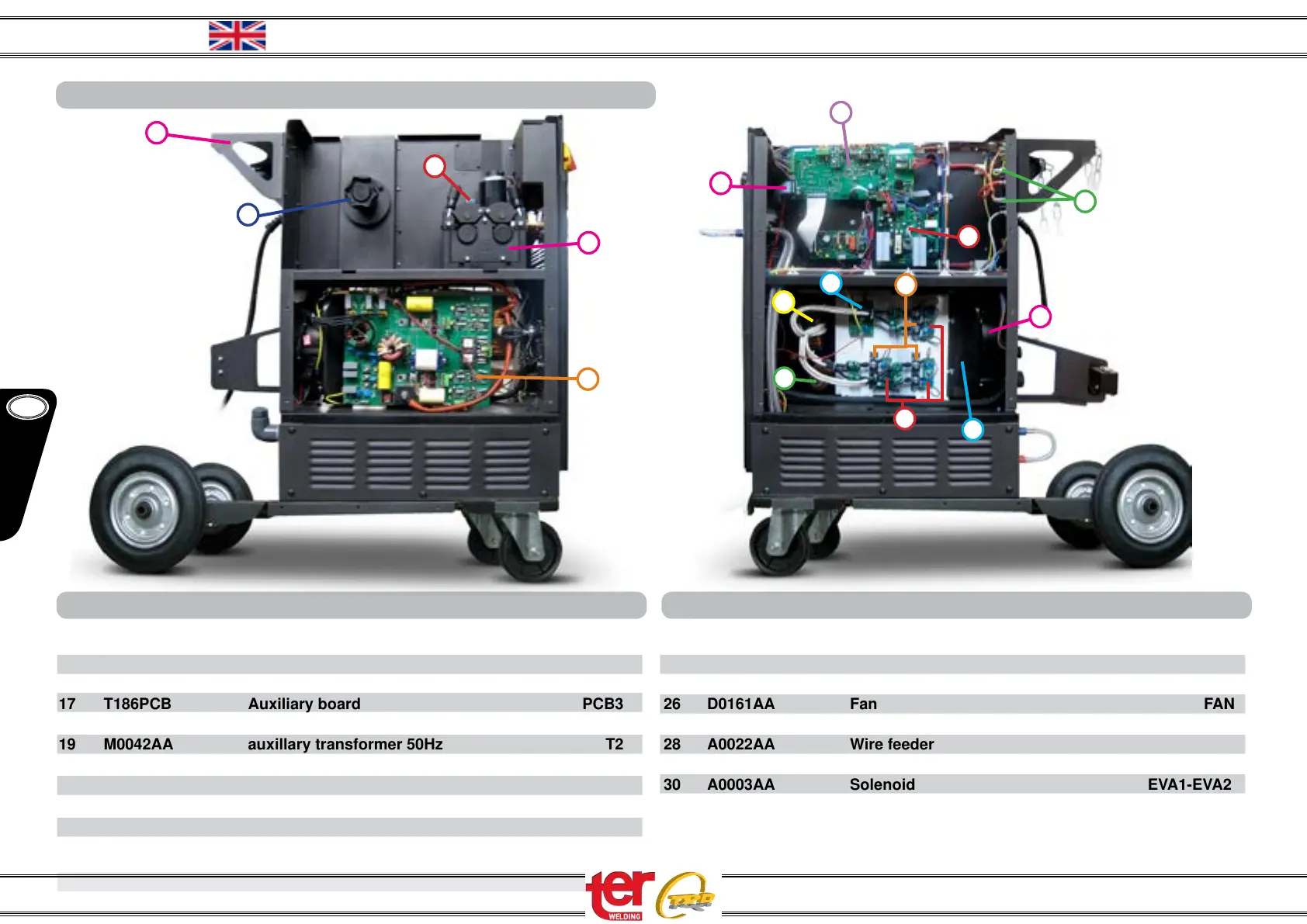

N° CODE DESCRIPTION Rif. WEL.DIAGRAM
12 C0115AA External gas bottle support
16 T178PCB Contor PCB PCB2
17 T186PCB Auxiliary board PCB3
18 M0021AA auxillary transformer 50Hz T1
19 M0042AA auxillary transformer 50Hz T2
20 M0033AA Toroidal HF transformer T3
21 M0034AA output choke L1
22 T192PCB Probe lter PCB5
23 E0021AA rectier D1-D2-D3
Spare Parts Multi 500K
MULTI 500K
N° CODE TER CODE DESCRIPTION Rif. WEL.DIAGRAM
24 E0022AA Absorption PCBA PCB6-PCB7-PCB8
25 D0162AA Fan cover
26 D0161AA Fan FAN
27 D0164AA Spool Support
28 A0022AA Wire feeder
29 T188PCB Driver Board PCB4
30 A0003AA Solenoid EVA1-EVA2
32 T173PCB Wire control PCB PCB9
Spare Parts Multi 500K
32
