Ter Welding Multi 400K - Page 39

IT
Italiano
36
13
14
15
20
19
18
17
11
10

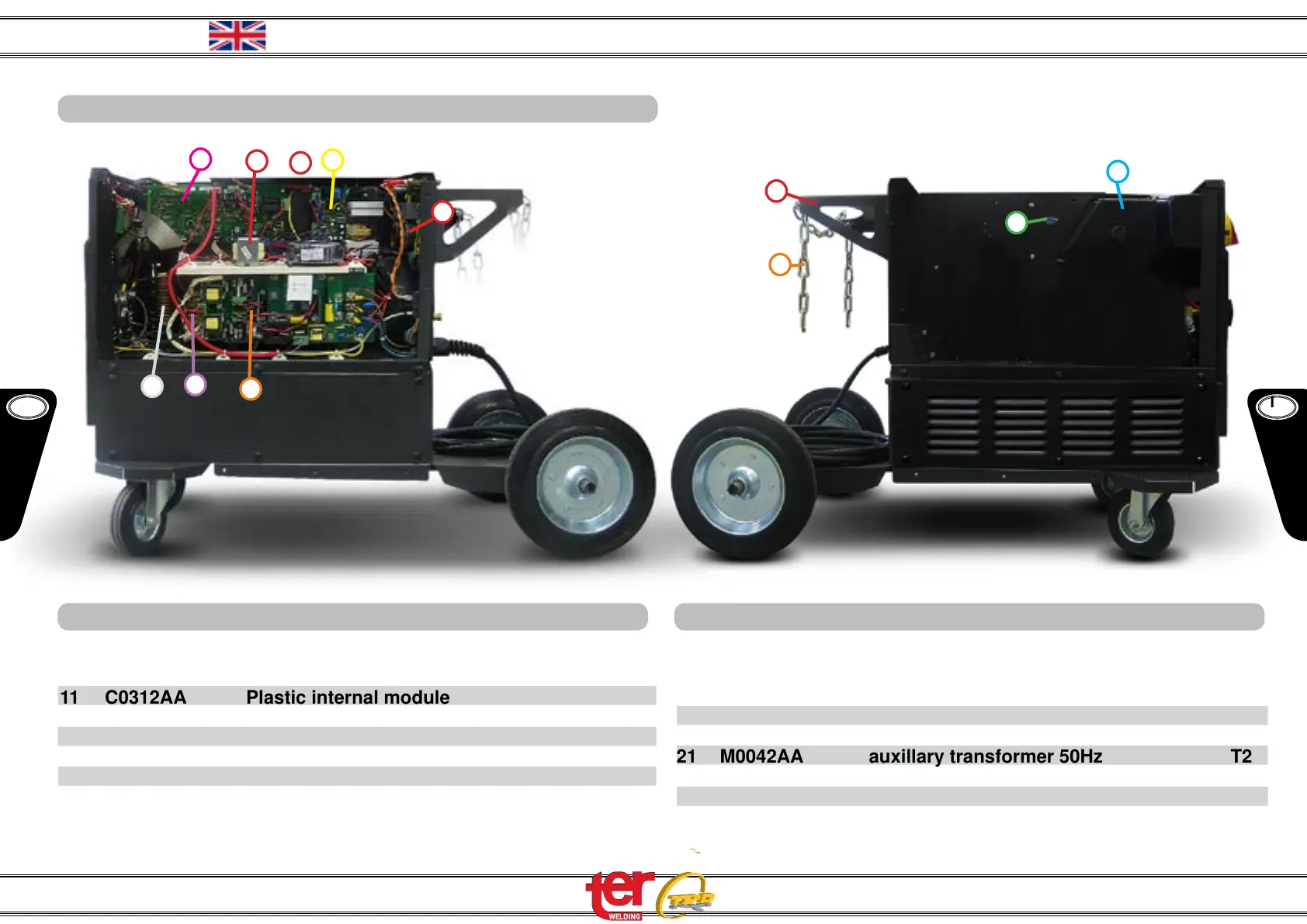

N° CODE TER CODE DESCRIPTION Rif. WEL.DIAGRAM
11 C0312AA Plastic internal module
13 T178PCB Contor PCB PCB2
14 T186PCB Auxiliary board PCB3
15 T196PCB EMC board PCB10
- T192PCB Probe Filter PCB5
Spare Parts Multi 5000FW
N° CODE DESCRIPTION
Rif. WEL.DIAGRAM
18 M0036AA Toroidal HF transformer T3
19 T194/T195PCB 400K Driver Board PCB4
20 M0021AA auxillary transformer 50Hz T1
21 M0042AA auxillary transformer 50Hz T2
22 B0104AA Backside 14 poles socket
23 D0190AA Chain
24 C0115AA External gas bottle support
Spare Parts Multi 5000FWF
Multi 5000FW
23
24
21
Multi 250 - 400K - 500F - 500K - 5000FW - 500MAR e Accessori
Instruction Manual
GB
English
