Instruction Manual
MULTI 250K
15
16
12
13
19
8
10
11
9
23
24

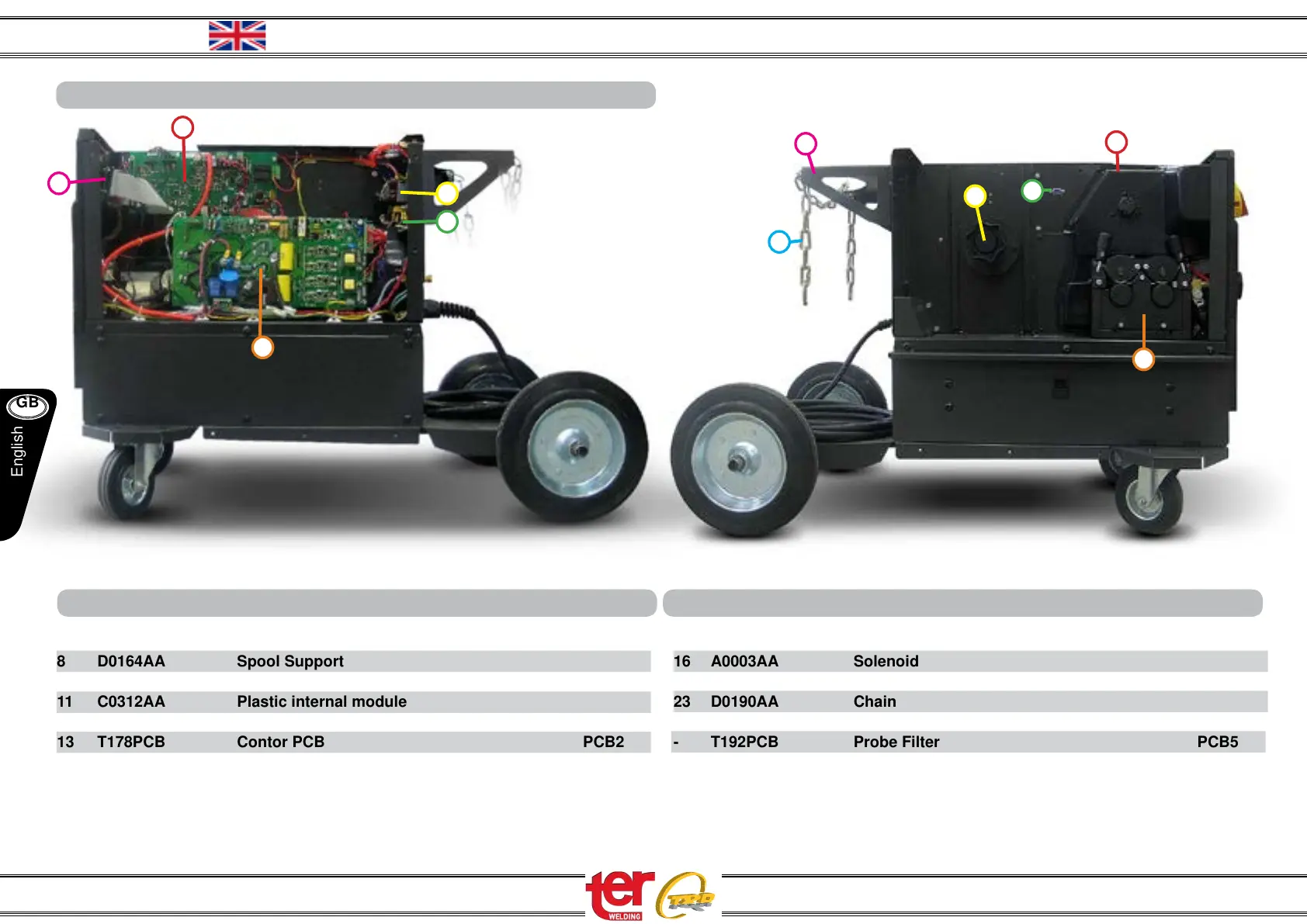

N° CODE DESCRIPTION Rif. WEL.DIAGRAM
8 D0164AA Spool Support
9 A0006AA Wire feeder
11 C0312AA Plastic internal module
12 T173PCB Wire control PCB PCB9
13 T178PCB Contor PCB PCB2
16 T182PCB EMC board PCB7
Spare Parts Multi 250K
N° CODE DESCRIPTION Rif. WEL.DIAGRAM
16 A0003AA Solenoid
19 T198PCB 250K Driver Board PCB4
23 D0190AA Chain
24 C0115AA External gas bottle support
- T192PCB Probe Filter PCB5
- T200PCB Protect Board
Spare Parts Multi 250K
