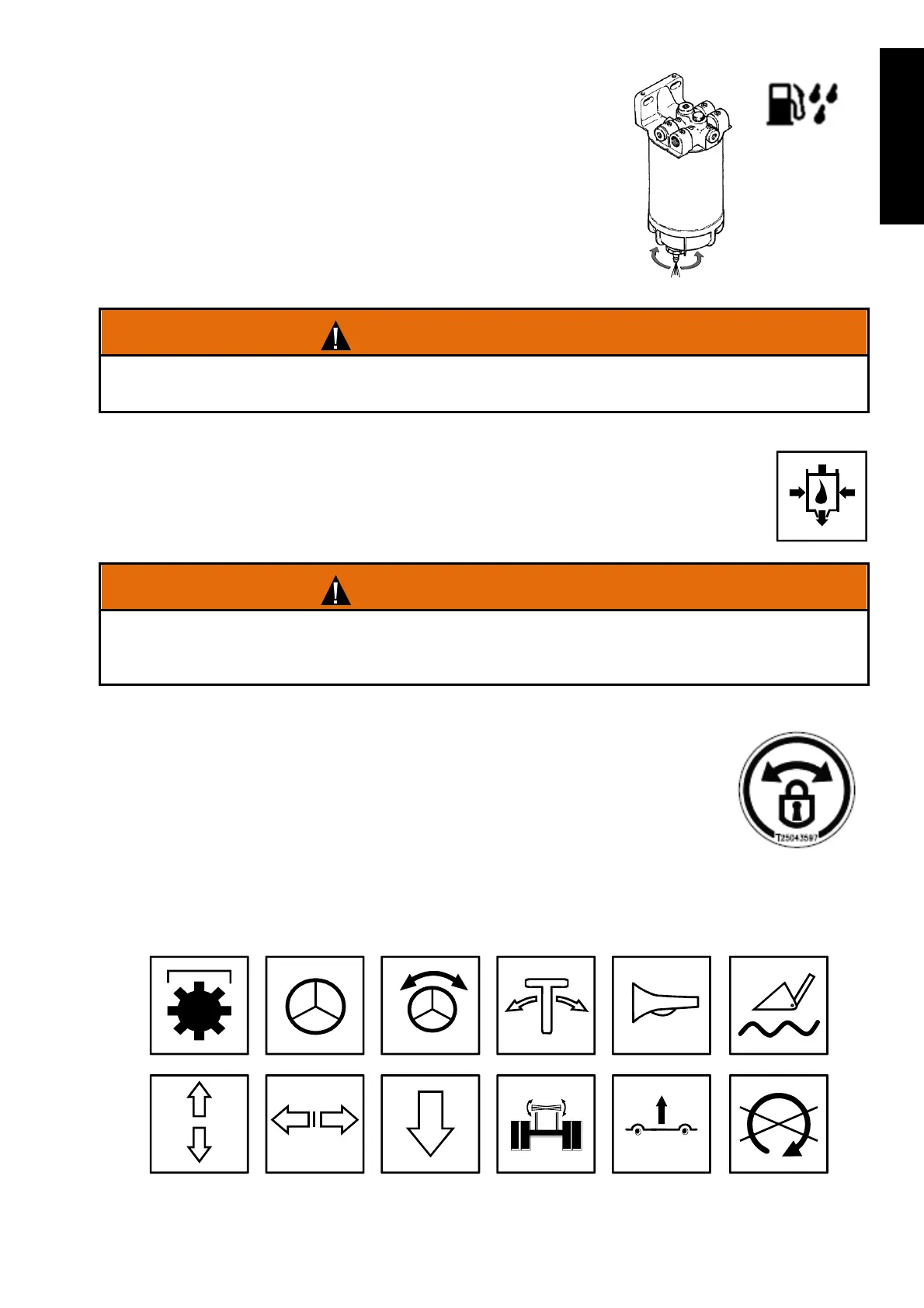

Water in fuel warning light (optional) (31)
This yellow warning light illuminates if there is a high water
level in the
fuel system water separator. Stop the vehicle as soon as
possible and drain the water separator.
Shut off the engine.
Place a container under the water separator
Open the drain valve manually until fluid drains out of the
drain tube.
Drain the filter sump until clear fuel is visible.
Water can contain toxic and carcinogenic substances. Drain the water/fuel mixture into a container
and dispose of it in accordance with local environmental regulations.
4.4.11 Hydraulic system warning light (optional) (32)
Yellow warning light 31 illuminates when a fault occurs in the
hydraulic system, e.g. high oil temperature.
If the warning light illuminates, stop the vehicle as soon as possible. Let the hydraulic system cool
down by not using it. The fault must be resolved by authorized service staff when the light remains
illuminated.
4.4.12 Lock/unlock switch (optional) (33)
This switch has a general-purpose function, depending on the
owner's requirements for locking or unlocking additional couplings.
4.4.13 Switch/warning light (optional) (34)
The symbols for switches or warning lights have a general function,
depending on the owner's requirements (e.g. additional hydraulics.)
