Section 000-0000
1
SM 1169 2-98
GENERAL INFORMATION - 3360B Off-Highway Truck
SM - 1790
ENGINE
Make/Model .................................... Cummins QSK19-C650
Type .................... 4 Cycle, Turbocharged/Low Temperature
Aftercooled. Electronic Management
Gross Power 1 500 through 2 100 rev/min ............... 485 kW
(650 hp, 659 PS)
Net Power 1 500 through 2 100 rev/min .................. 462 kW
(620 hp, 628 PS)
Note: Power ratings to SAE J1995 Jun 95. Engine
emission meets USA EPA/CARB MOH 40 CFR 89 and
proposed EU non-road mobile machinery directive.
Maximum Torque .............................. 3 084 Nm (2 275 lbf ft)
at 1 300 through 1 500 rev/min
Number of Cylinders/Configuration .........................6, in line
Bore x Stroke ........................ 159 x 159 mm (6.25 x 6.25 in)
Total Displacement .............................. 18.9 litres (1 150 in³)
Starting...................................................................... Electric
Maximum Speed, Full Load ............................ 2 100 rev/min
Maximum Speed, No Load ............................. 2 350 rev/min
Idle Speed ....................................................... Self Adjusting
Safe Operating Angle .................................. 30°/60% Grade
TRANSMISSION
Make/Model ................................................. Allison M6600A
automatic electronic control with soft shift feature.
Remote mounted in the frame. Integral TC 682 torque
converter and planetary gearing. Six speeds forward, two
reverse. Automatic converter lockup action in all speed
ranges. With body up, gear range is limited to 1st forward
only. Downshift inhibitor.

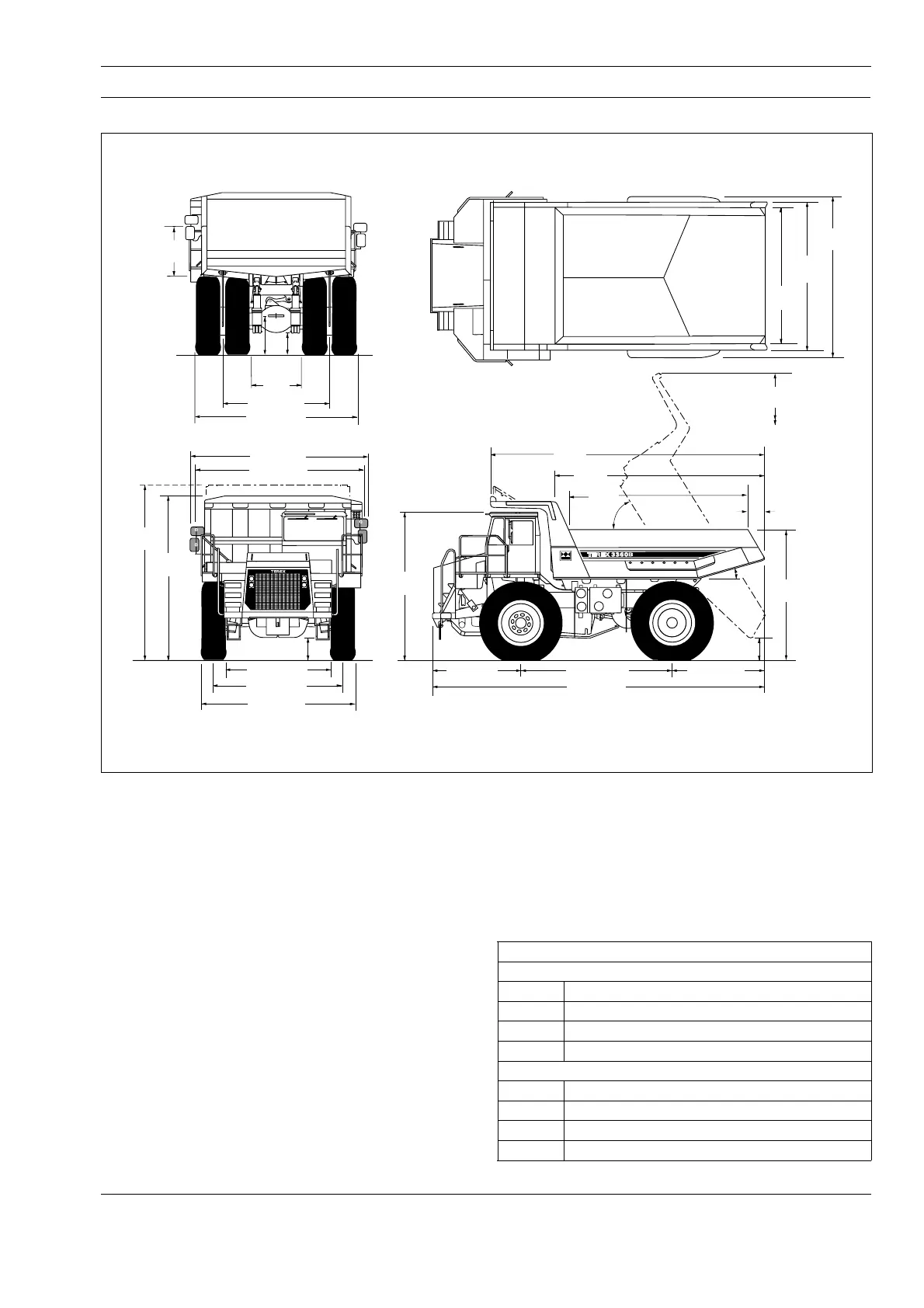

Fig. 1 - Machine Dimensions
Speeds With 24.00 R 35 Tyres
TABLE964
Forward
Gear
1 2 3 4 5 6
Ratio
4.00 2.68 2.01 1.35 1.00 0.67
km/h
9.5 14.2 18.9 28.2 38.1 57.0
mile/h
5.9 8.8 11.8 17.5 23.7 35.5
Reverse
Gear
R1 R2
Ratio
5.12 3.46
km/h
7.4 11.0
mile/h 4.6 6.8
Dimensions in mm (ft-in)
2 360 (7-9)
4 170 (13-8)
2 600 (8-6)
9 130 (29-11)
580 (1-11)
15˚
3 680
(12-1)
7 650
(25-1)
5 055
(16-7)
6 045
(19-9)
7 800
(25-7)
58˚
3 970
(13-0)
505
(1-8)
Vehicle Clearance Diameter (SAE) 20.5m (67ft)
3 950
(12-11)
4 270
(14-0)
4 470
(14-8)
Max
Body
Depth
1 405
(4-7)
1 380
(4-6)
950
(3-1)
600
(2-0)
2 900 (9-6)
4 450 (14-7)
Optional
Spillguard
4 980 (16-4)
4 630 (15-2)
4 820
(15-10)
4 440
(14-7)
660
(2-2)
2 580 (8-5)
3 320 (10-11)
4 060 (13-4)
