Terex 3360B - Page 19

Section 100-0010
3
SM 1170 2-98
SM - 1755
Chassis - Chassis, Hood and Fenders

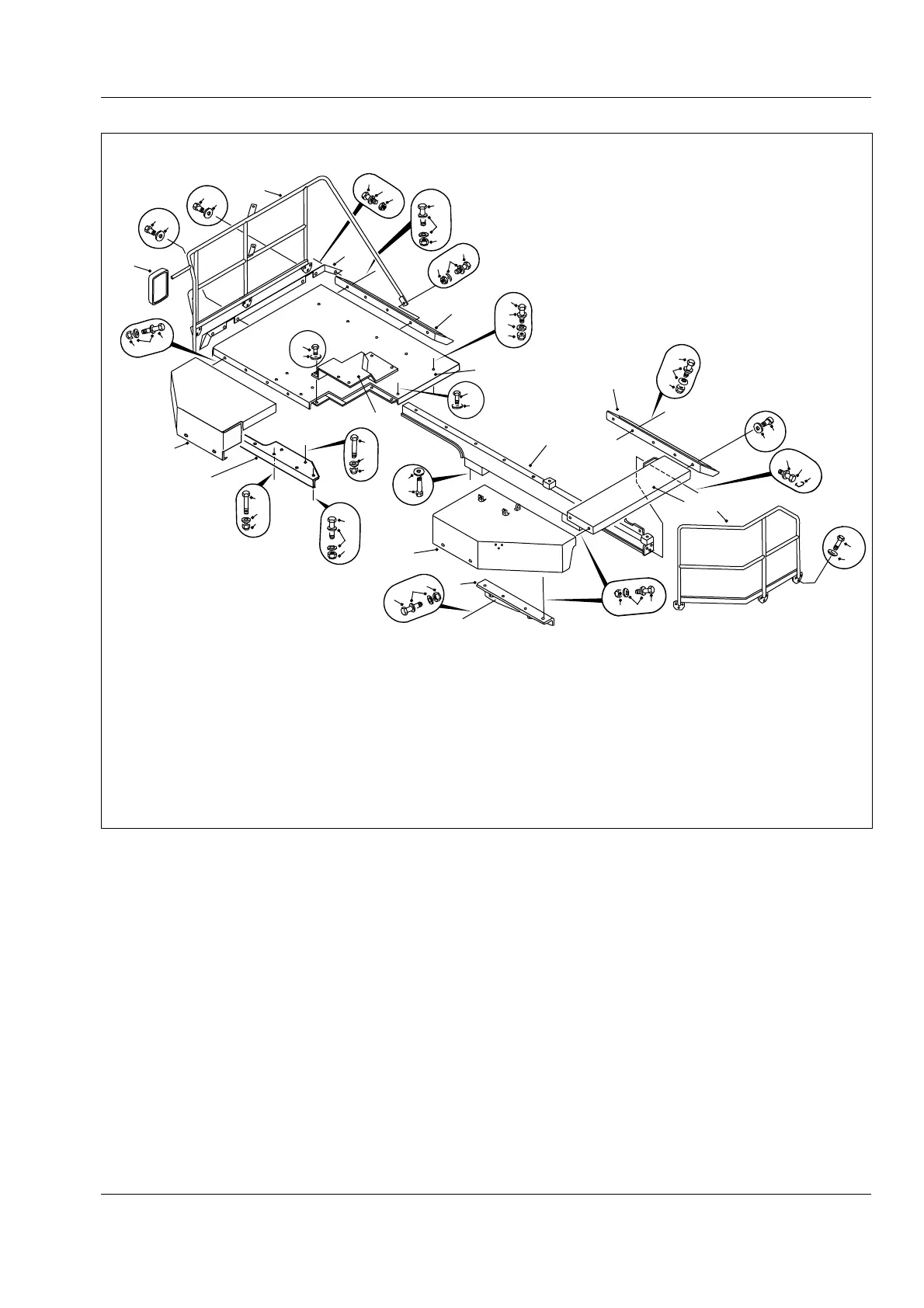

Fig. 3 - Exploded View of Fenders and Mounting
24 - Nut
25 - Washer
26 - Bolt
27 - Bolt
28 - Bolt
29 - Mudguard
30 - Mudguard
1 - LH Fender Assembly
2 - LH Platform Assembly
3 - RH Fender Assembly
4 - RH Platform Assembly
5 - Crossmember
6 - Support
7 - Support
8 - Bolt
9 - Lockwire
10 - Hardened Washer
11 - Bolt
12 - Washer
13 - Engine Access Cover
14 - Bolt
15 - Locknut
16 - Hardened Washer
17 - Bolt
18 - Locknut
19 - Hardened Washer
20 - Tapered Washer
21 - LH Handrail
22 - Bolt
23 - RH Handrail
22
10
23
18
19
28
3
7
27
25
24
17
19
18
1
26
25
24
13
4
22
10
30
17
19
18
18
19
28
17
19
18
20
5
14
16
15
6
18
19
17
2
21
22
10
10
8
9
19
22
17
19
18
29
12
11
31
19
32
10
22
10
18
33
34
