Section 110-0030
SM 1172 2-98
1
ENGINE - Engine and Mounting
SM - 1710
DESCRIPTION
Numbers in parentheses refer to Fig. 1.
For engine make, model and specification, refer to
Section 000-0000, GENERAL INFORMATION. For
engine servicing and repair data refer to the engine
manufacturers service manual.
The engine is mounted to the frame at three points by
a mounting bracket (6) at the front of engine (1) and
two rear mounts (5). Rubber isolation mounts (12)
through engine mounts provide sufficient flexibility to
absorb varying engine vibration and torsional loads.
There are two full-flow oil filters (36) mounted on the
left hand side of engine (1) in a downward position.
The filters are of the throw away, spin-on type. Oil
supplied by the engine oil pump passes through oil
filters (36) before reaching the various moving parts of
engine (1). The oil is forced by pump pressure through
a passage in the filter adaptor and into the elements.
Impurities are filtered out as the oil passes through the

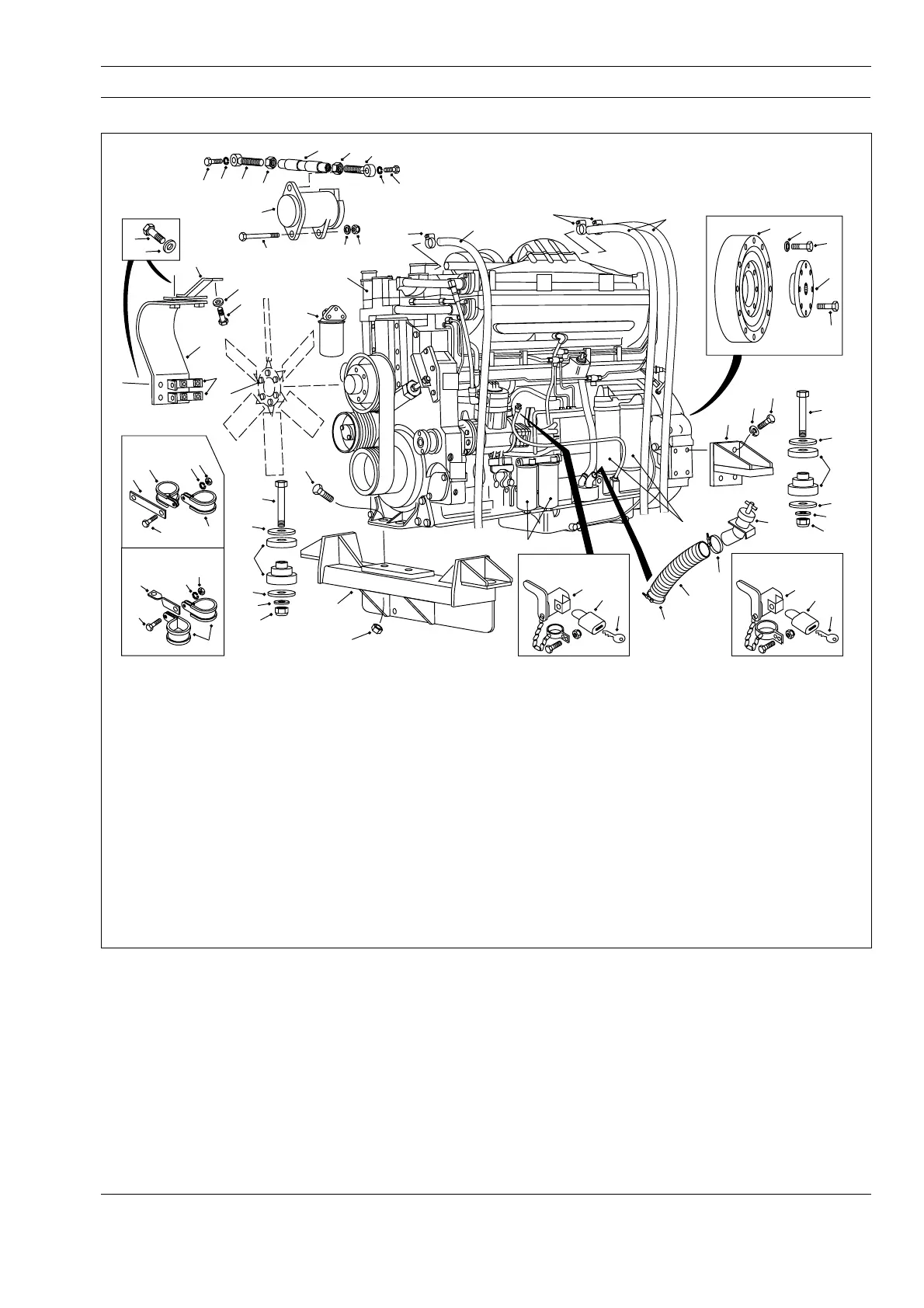

Fig. 1 - Engine and Mounting
1 - Engine
2 - Locknut
3 - Bolt
4 - Alternator Guard
5 - Rear Mount
6 - Front Mount
7 - Bolt
8 - Lockwasher
9 - Support Bracket
10 - Bolt
11 - Snubbing Washer
12 - Isolation Mount
13 - Bolt
14 - Locknut
15 - Plate Support
16 - Damper
17 - Lockwasher
18 - Bolt
19 - Flange Coupling
20 - Bolt
21 - Clamp
22 - Bolt
23 - Lockwasher
24 - Washer
25 - Bolt
26 - Washer
27 - Padlock
28 - Key
29 - Bolt
30 - P-Clip
31 - P-Clip
32 - Bracket
33 - Latch Assembly
34 - Latch Assembly
35 - Bolt
36 - Oil Filter
37 - Fuel Filter
38 - Coolant Filter
39 - Breather Line
40 - Filler Hose
41 - Clamp
42 - Lockwasher
43 - Locknut
44 - Plate
45 - P-Clip
46 - Bolt
47 - Lockwasher
48 - Locknut
49 - Filler Assembly
50 - Alternator
51 - Bolt
52 - Lockwasher
53 - Eye Bolt
54 - Jam Nut
55 - Link
56 - Nut
57 - Eye Bolt
58 - Lockwasher
59 - Bolt
60 - Locknut
61 - Lockwasher
62 - Bolt
SECURITY KIT
ENGINE DIPSTICK
SECURITY KIT
ENGINE OIL FILL
A
BB
A
POSITION A
POSITION B
29
26
9
26
25
4
38
15
44
31
47
48
45
46
13
3
11
12
11
24
2
35
32
42
43
30
6
14
34
27
28
37
41
40
41
36
33
27
28
10
11
12
11
24
2
5
8
7
20
16 17
18
19
39
21
21
39
1
22,23
49
51
52
53
54
55
56
57
59
60
61
62
50
58
