RMX SERIES
1-4
483018 - 3/15 Terex South Dakota RMX Series
OPERATION GUIDELINES
CONTROLS BELOW ROTATION
These controls are usually mounted at the rear of the vehicle chassis. The controls may include outriggers,
hydraulic tools, control selector, engine stop/start, two-speed throttle, and auxiliary let down power. The
controls shown are generic. The actual location and functions will vary depending on the purchasers
requirements and options ordered. Refer to the control decals on unit for proper operation.

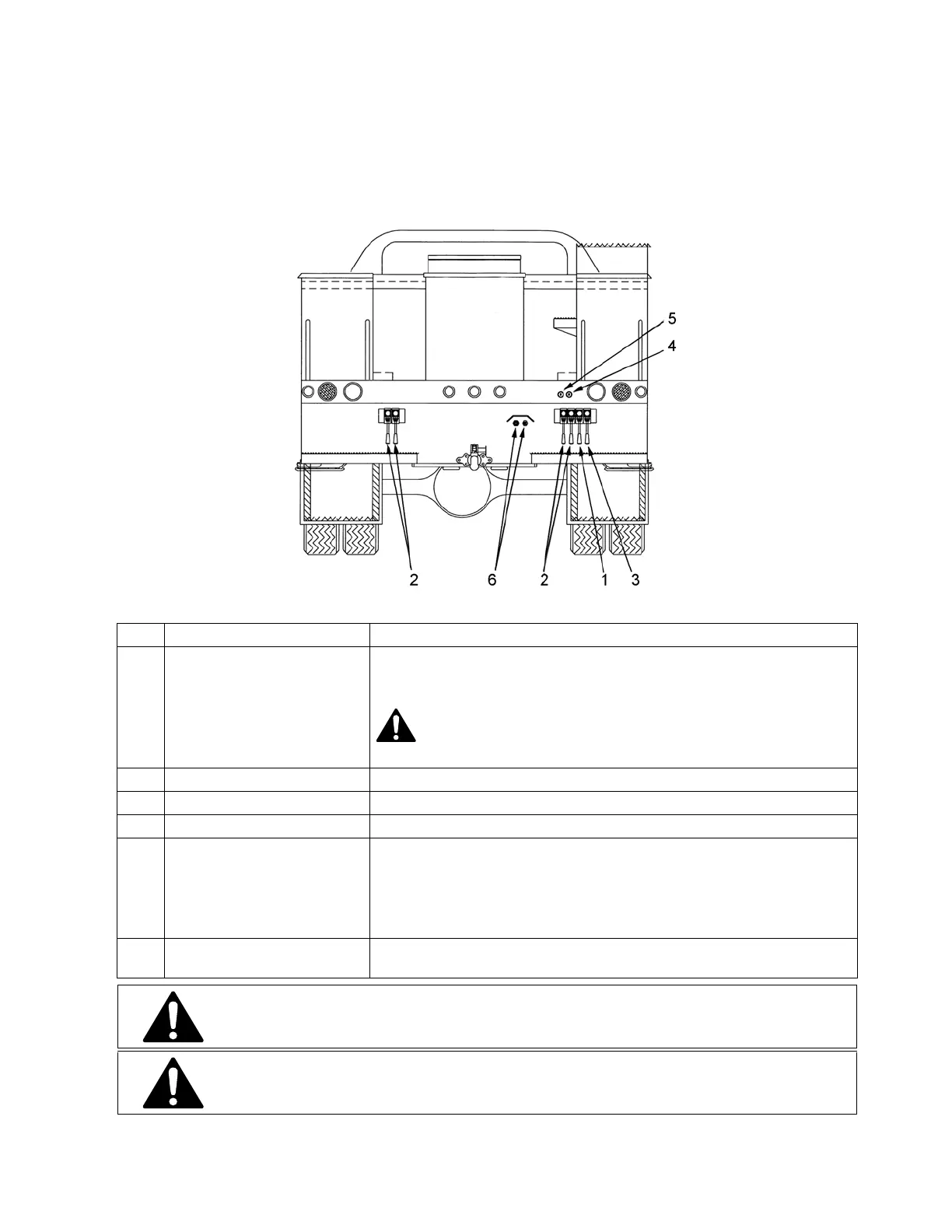

UTILITY VEHICLE CONTROL LOCATIONS
ITEM CONTROL DESCRIPTION
1. Selector (Optional) A selector valve that allows operation of boom functions when in the
“UP" position and operation of the outriggers when in the “DOWN"
position.
The Selector will function as an emergency stop by taking
oil flow away from the active controls.
2. Outrigger Controls (Optional) Allows extending and retracting of outriggers.
3. Hydraulic Tools (Optional) Directs oil flow to the tool when connected to the quick couplers.
4. Engine Stop/Start (Optional) Allows operator to stop and start engine.
5. Two-Speed Throttle
(Optional)
Auxiliary Let Down Power
(Optional)
Two-speed throttle provides two engine speeds, low and high, with
engine running. Low speed is engine idle.
Auxiliary let down power provides hydraulic power to lower and stow
the Aerial Device in the event of a prime power source failure.
6. Hydraulic tool couplers
(Optional)
Quick couplers for hydraulic tool connection.
The decals are an integral part of this Aerial Device. If the decals are illegible, they must
be replaced.
Always operate controls slowly and deliberately for smooth movements. Rough handling
is never excusable and may cause damage to the Aerial Device and endanger the
operator.
