Terex RMX Series User Manual

RMX SERIES
1-9
RMX Series Terex South Dakota 483018 - 3/15

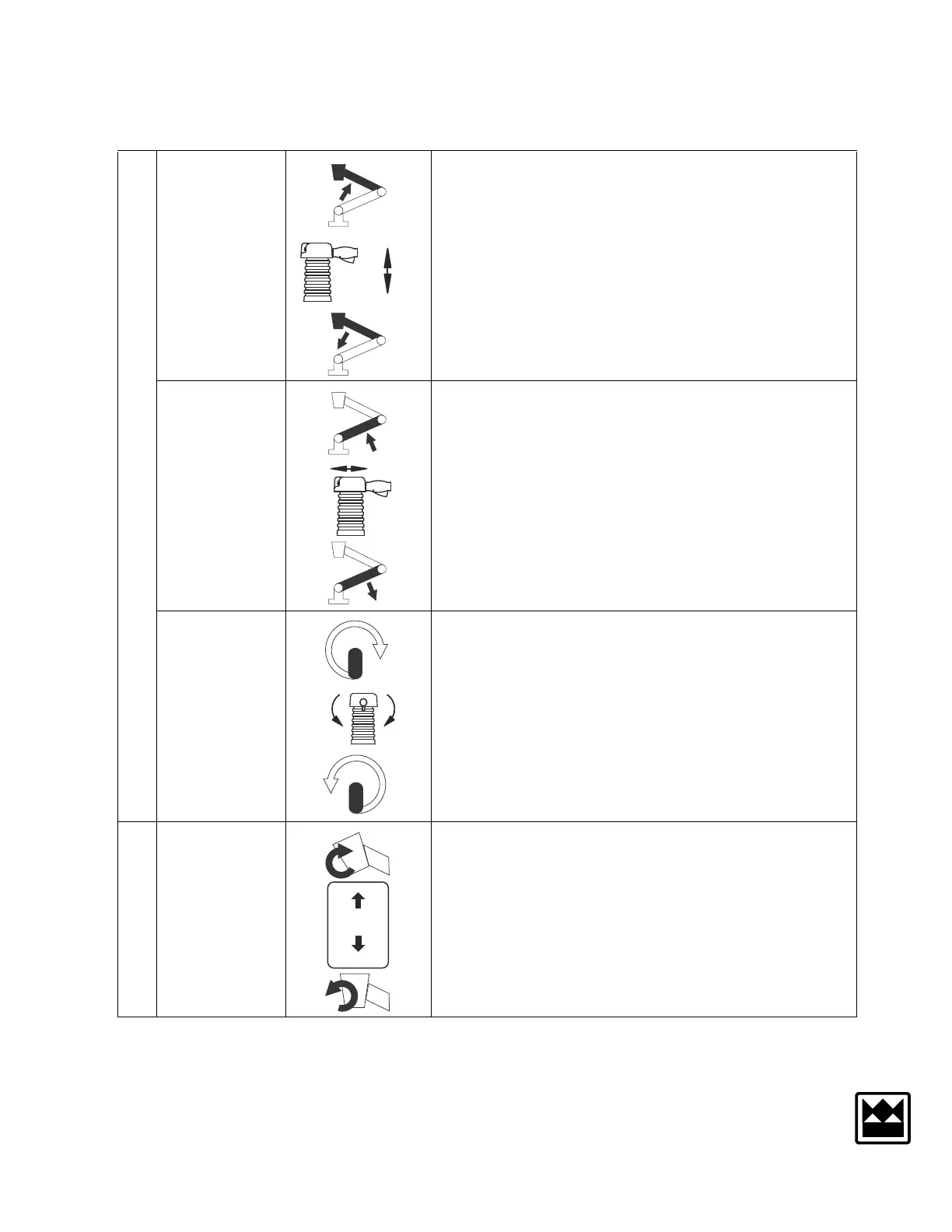

OPERATION GUIDELINES
1. Upper Boom Squeeze the trigger and lift lever up to “UNFOLD” upper
boom.
Squeeze the trigger and push lever down to “FOLD” upper
boom.
Lower Boom Squeeze the trigger and push lever forward to unfold the
lower boom “UP”.
Squeeze trigger and pull lever back to fold the lower boom
“DOWN”.
Boom Rotation Squeeze the trigger and twist lever right to rotate booms
clockwise “CW”.
Squeeze the trigger and twist lever left to rotate booms
counterclockwise “CCW”.
2. Platform Leveling
(Optional)
Raise lever by pulling upward to unlock.
Push to rotate platform in a clockwise “CW” direction.
Raise lever by pulling upward to unlock.
Pull to rotate platform in a counterclockwise “CCW” direction.
FOLD
UNFOLD
DOWN
UP
CWCCW
CCW
CW
457448
PLATFORM
LEVELING
