RMX SERIES
1-29
RMX Series Terex South Dakota 483018 - 3/15
OPERATION GUIDELINES

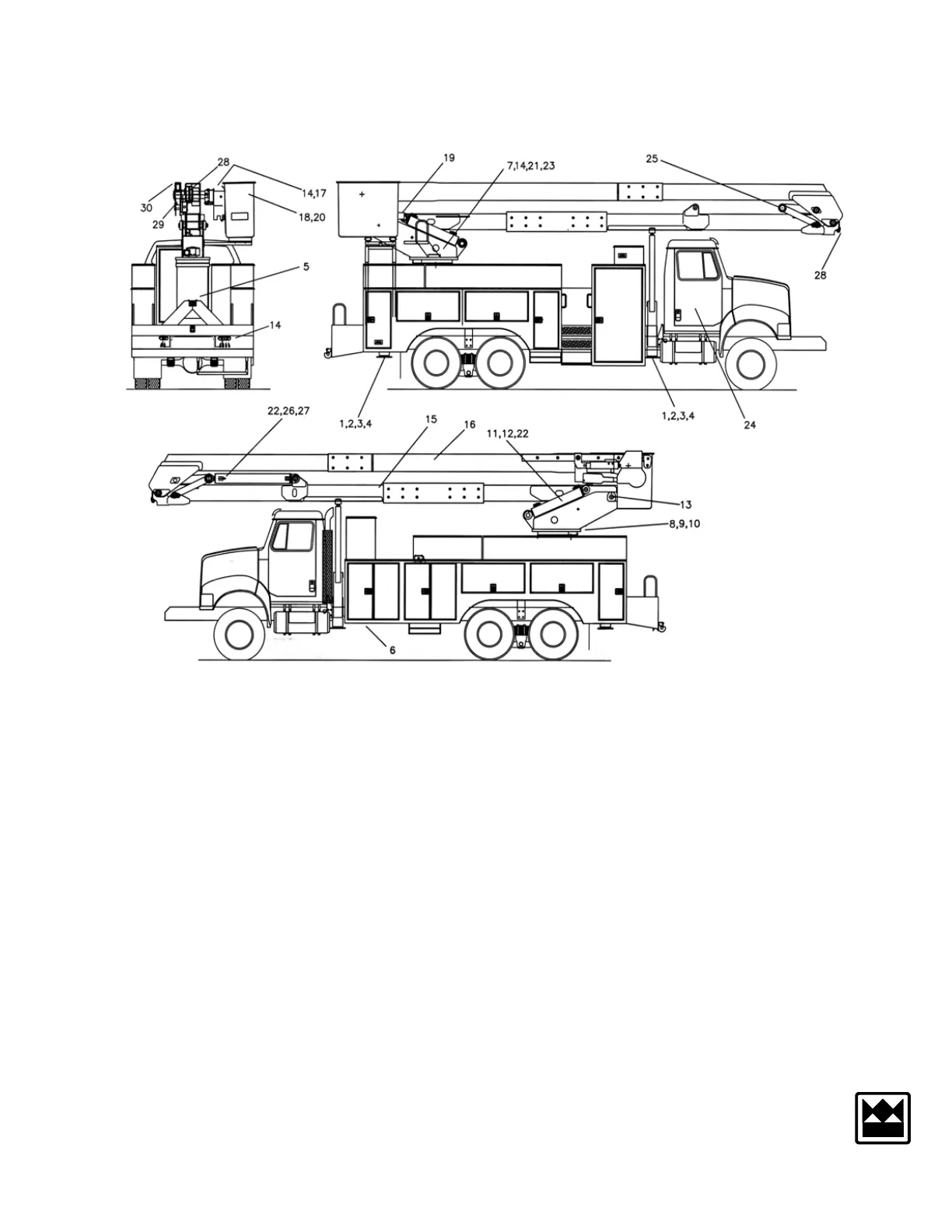

AERIAL DEVICE CHECKS
ITEM DESCRIPTION ITEM DESCRIPTION
1 Outriggers 16 Upper Boom
2 Outrigger Cylinders 17 Upper Controls
3 Outrigger Alarms 18 Platform and Harness
4 Outrigger Mounting 19 Platform Step
5 Return Line Filter 20 Platform Mounting
6 Main or Auxiliary Pump 21 Hydraulic Plumbing
7 Lower Controls 22 Cylinder Holding Valves
8 Rotation Gear Box 23 Electrical Systems
9 Rotation Bearing Bolts 24 Operator's Manual
10 Rotation Bearing 25 Boom Pivot Linkage and Pins
11 Lower Boom Lift Cylinder 26 Upper Boom Cylinder
12 Lower Boom Lift Cylinder Mounting Pins 27 Upper Boom Cylinder Mounting Pins
13 Lower Boom Pivot Installation 28 Leveling Chains and Mechanism
14 Throttle Control 29 Winch Line & Hook
15 Lower Boom 30 Boom Tip Covers & Guards
