Section 000-0000
SM 1937 Rev 1 11-00
3

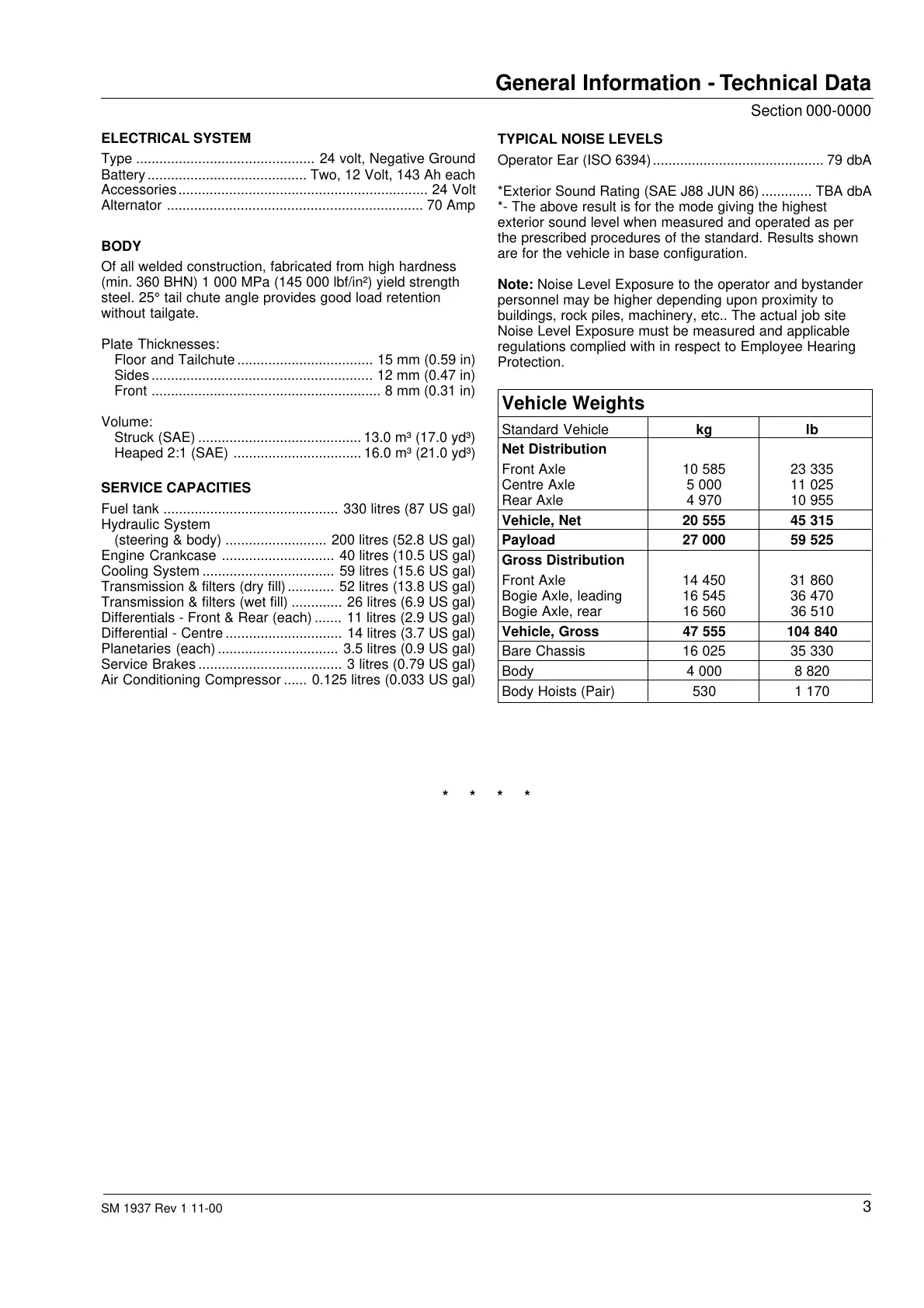

General Information - Technical Data
ELECTRICAL SYSTEM
Type .............................................. 24 volt, Negative Ground
Battery......................................... Two, 12 Volt, 143 Ah each
Accessories................................................................ 24 Volt
Alternator .................................................................. 70 Amp
BODY
Of all welded construction, fabricated from high hardness
(min. 360 BHN) 1 000 MPa (145 000 lbf/in²) yield strength
steel. 25° tail chute angle provides good load retention
without tailgate.
Plate Thicknesses:
Floor and Tailchute................................... 15 mm (0.59 in)
Sides......................................................... 12 mm (0.47 in)
Front ........................................................... 8 mm (0.31 in)
Volume:
Struck (SAE) .......................................... 13.0 m³ (17.0 yd³)
Heaped 2:1 (SAE) ................................. 16.0 m³ (21.0 yd³)
SERVICE CAPACITIES
Fuel tank ............................................. 330 litres (87 US gal)
Hydraulic System
(steering & body) .......................... 200 litres (52.8 US gal)
Engine Crankcase ............................. 40 litres (10.5 US gal)
Cooling System .................................. 59 litres (15.6 US gal)
Transmission & filters (dry fill)............ 52 litres (13.8 US gal)
Transmission & filters (wet fill) ............. 26 litres (6.9 US gal)
Differentials - Front & Rear (each) ....... 11 litres (2.9 US gal)
Differential - Centre .............................. 14 litres (3.7 US gal)
Planetaries (each) ............................... 3.5 litres (0.9 US gal)
Service Brakes ..................................... 3 litres (0.79 US gal)
Air Conditioning Compressor ...... 0.125 litres (0.033 US gal)
TYPICAL NOISE LEVELS
Operator Ear (ISO 6394)............................................ 79 dbA
*Exterior Sound Rating (SAE J88 JUN 86) ............. TBA dbA
*- The above result is for the mode giving the highest
exterior sound level when measured and operated as per
the prescribed procedures of the standard. Results shown
are for the vehicle in base configuration.
Note: Noise Level Exposure to the operator and bystander
personnel may be higher depending upon proximity to
buildings, rock piles, machinery, etc.. The actual job site
Noise Level Exposure must be measured and applicable
regulations complied with in respect to Employee Hearing
Protection.
* * * *
Vehicle Weights
Standard Vehicle kg lb
Net Distribution
Front Axle 10 585 23 335
Centre Axle 5 000 11 025
Rear Axle 4 970 10 955
Vehicle, Net 20 555 45 315
Payload 27 000 59 525
Gross Distribution
Front Axle 14 450 31 860
Bogie Axle, leading 16 545 36 470
Bogie Axle, rear 16 560 36 510
Vehicle, Gross 47 555 104 840
Bare Chassis 16 025 35 330
Body 4 000 8 820
Body Hoists (Pair) 530 1 170
