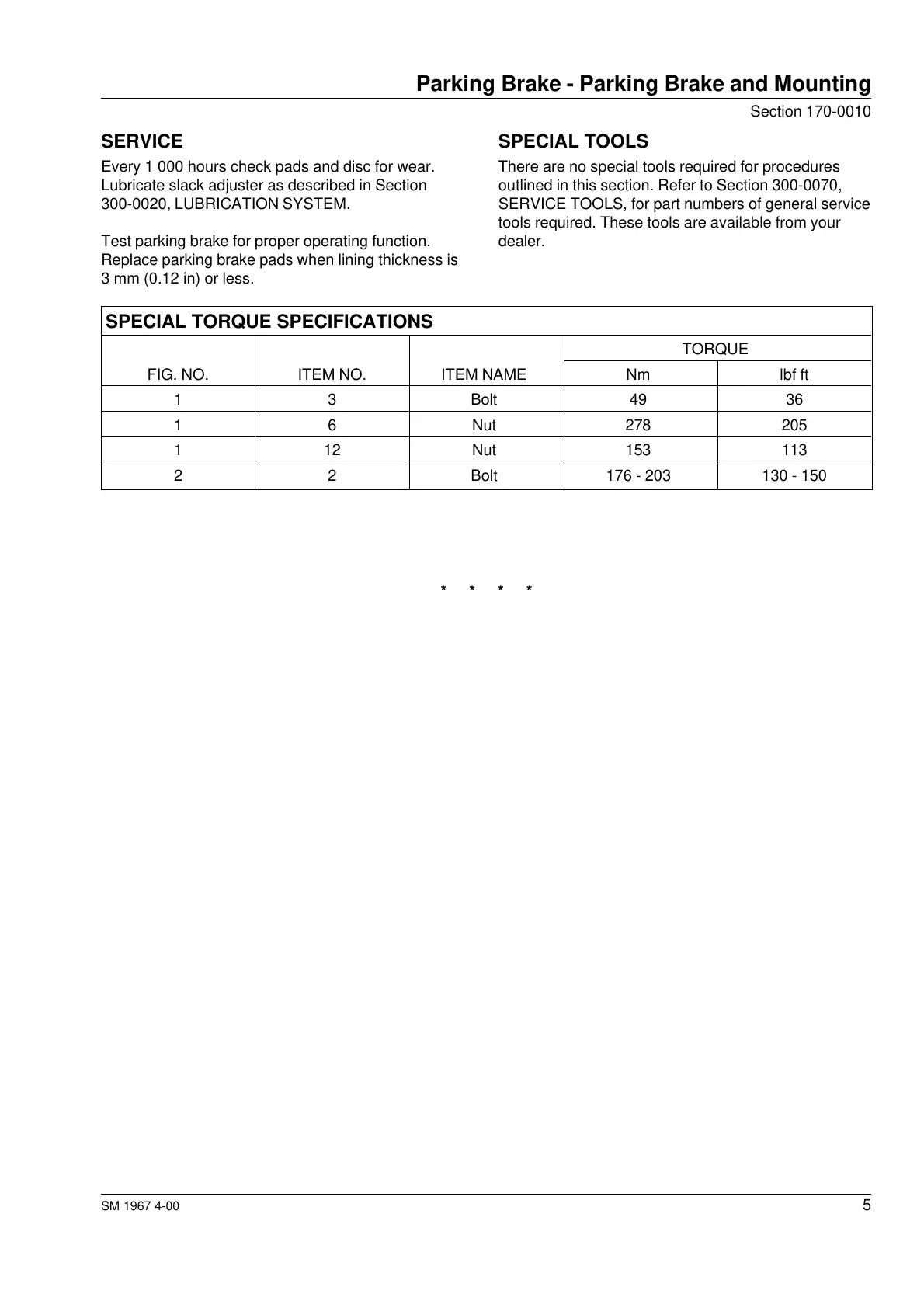

Section 170-0010
SM 1967 4-00
5
SERVICE
Every 1 000 hours check pads and disc for wear.
Lubricate slack adjuster as described in Section
300-0020, LUBRICATION SYSTEM.
Test parking brake for proper operating function.
Replace parking brake pads when lining thickness is
3 mm (0.12 in) or less.
SPECIAL TOOLS
There are no special tools required for procedures
outlined in this section. Refer to Section 300-0070,
SERVICE TOOLS, for part numbers of general service
tools required. These tools are available from your
dealer.
* * * *
Parking Brake - Parking Brake and Mounting
SPECIAL TORQUE SPECIFICATIONS
TORQUE
FIG. NO. ITEM NO. ITEM NAME Nm lbf ft
1 3 Bolt 49 36
1 6 Nut 278 205
1 12 Nut 153 113
2 2 Bolt 176 - 203 130 - 150
