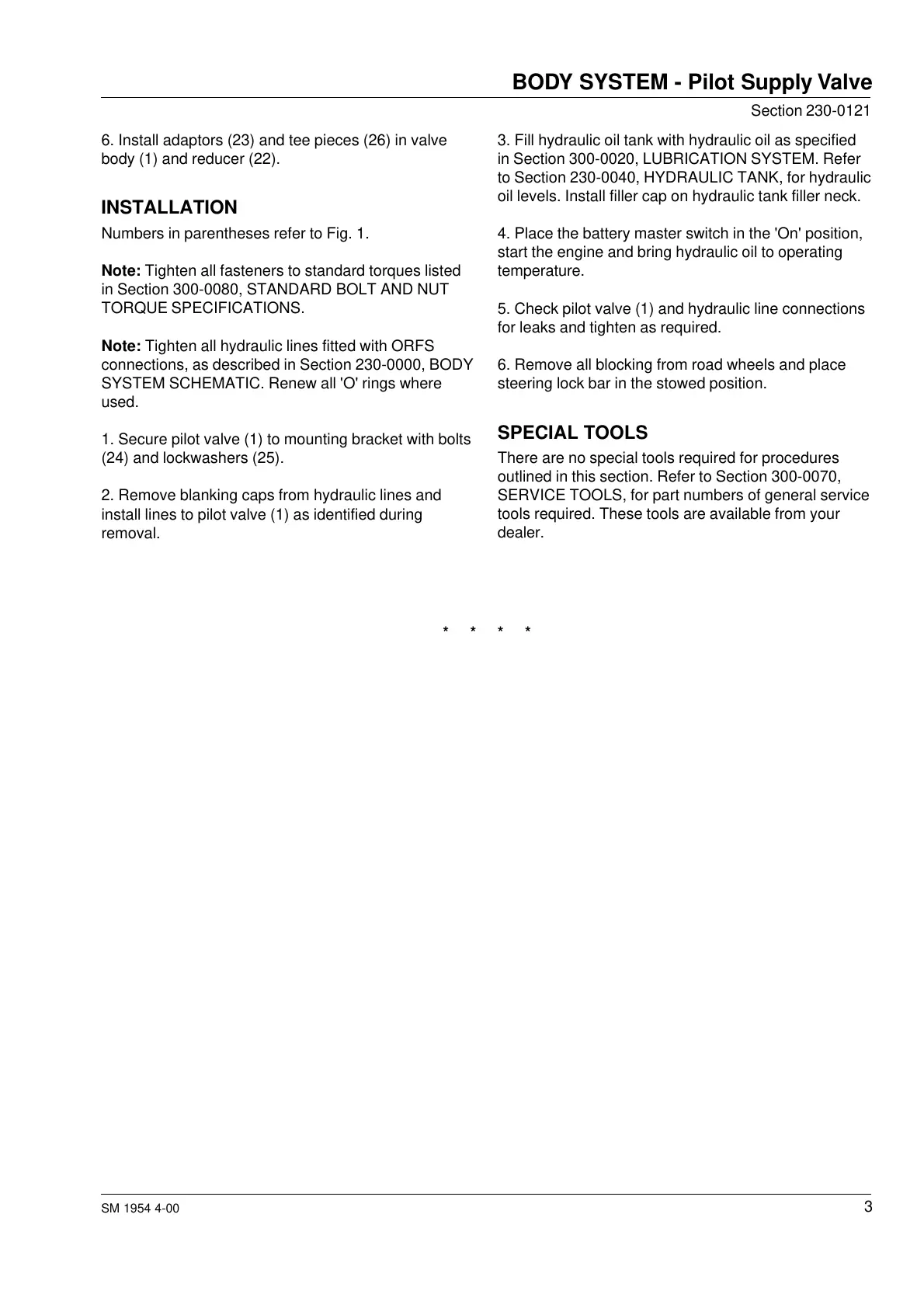

6. Install adaptors (23) and tee pieces (26) in valve
body (1) and reducer (22).
INSTALLATION
Numbers in parentheses refer to Fig. 1.
Note: Tighten all fasteners to standard torques listed
in Section 300-0080, STANDARD BOLT AND NUT
TORQUE SPECIFICATIONS.
Note: Tighten all hydraulic lines fitted with ORFS
connections, as described in Section 230-0000, BODY
SYSTEM SCHEMATIC. Renew all 'O' rings where
used.
1. Secure pilot valve (1) to mounting bracket with bolts
(24) and lockwashers (25).
2. Remove blanking caps from hydraulic lines and
install lines to pilot valve (1) as identified during
removal.
3. Fill hydraulic oil tank with hydraulic oil as specified
in Section 300-0020, LUBRICATION SYSTEM. Refer
to Section 230-0040, HYDRAULIC TANK, for hydraulic
oil levels. Install filler cap on hydraulic tank filler neck.
4. Place the battery master switch in the 'On' position,
start the engine and bring hydraulic oil to operating
temperature.
5. Check pilot valve (1) and hydraulic line connections
for leaks and tighten as required.
6. Remove all blocking from road wheels and place
steering lock bar in the stowed position.
SPECIAL TOOLS
There are no special tools required for procedures
outlined in this section. Refer to Section 300-0070,
SERVICE TOOLS, for part numbers of general service
tools required. These tools are available from your
dealer.
