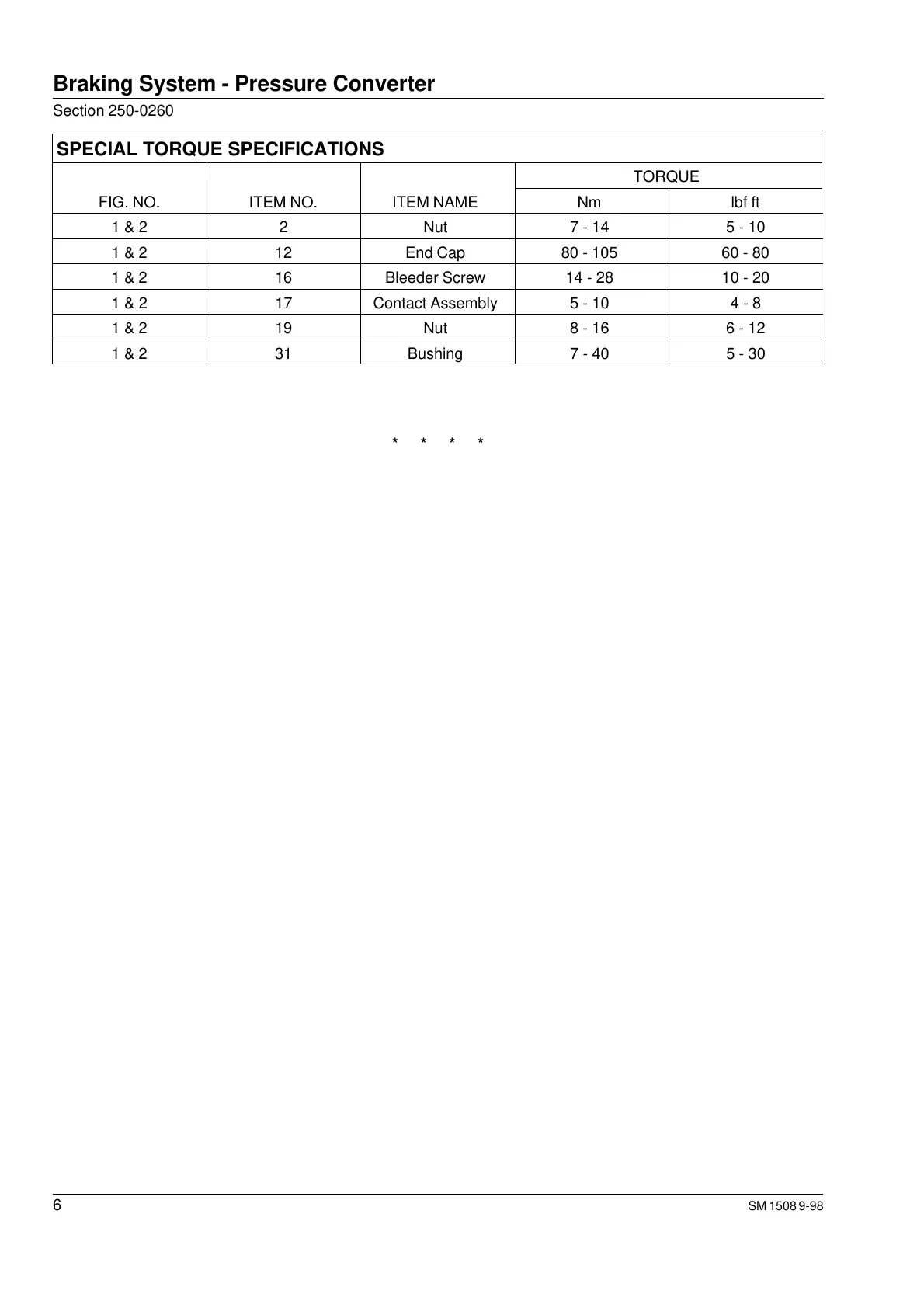

Braking System - Pressure Converter
Section 250-0260
SM 1508 9-98
6
* * * *
SPECIAL TORQUE SPECIFICATIONS
TORQUE
FIG. NO. ITEM NO. ITEM NAME Nm lbf ft
1 & 2 2 Nut 7 - 14 5 - 10
1 & 2 12 End Cap 80 - 105 60 - 80
1 & 2 16 Bleeder Screw 14 - 28 10 - 20
1 & 2 17 Contact Assembly 5 - 10 4 - 8
1 & 2 19 Nut 8 - 16 6 - 12
1 & 2 31 Bushing 7 - 40 5 - 30
