Terex TA30 - Page 386

Section 270-0010
Body - Body and Mounting
SM 1980 4-00
4
MAINTENANCE
Lubricate the body hinge pins and body cylinder pins
at the intervals stated and with lubricant specified in
Section 300-0020, LUBRICATION SYSTEM. Lubricate
slowly until excess lube is seen.
SPECIAL TOOLS

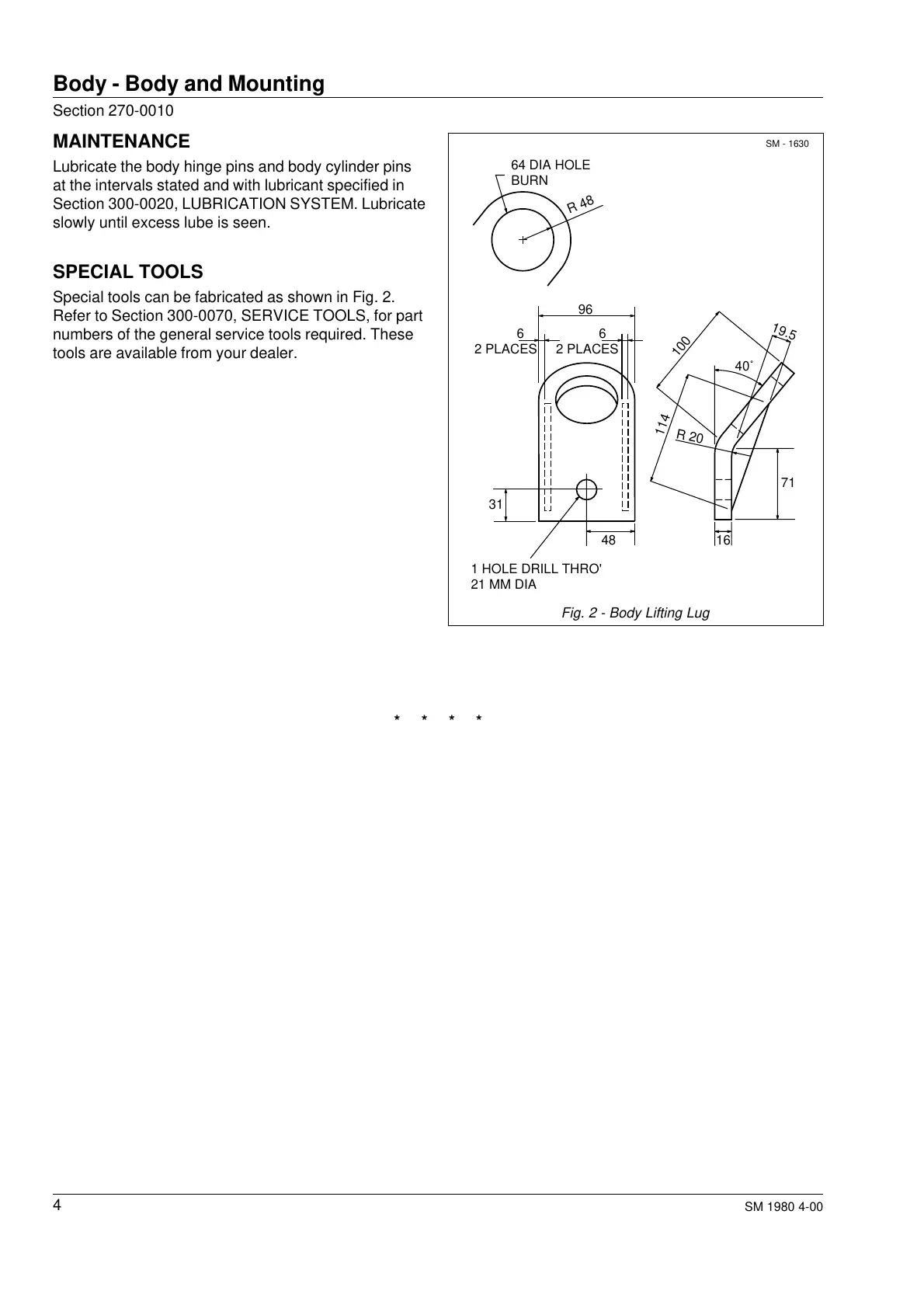

Special tools can be fabricated as shown in Fig. 2.
Refer to Section 300-0070, SERVICE TOOLS, for part
numbers of the general service tools required. These
tools are available from your dealer.
SM - 1630
Fig. 2 - Body Lifting Lug
64 DIA HOLE
BURN
R 48
96
6
2 PLACES 2 PLACES
6
31
48 16
71
114
100
40˚
19.5
1 HOLE DRILL THRO'
21 MM DIA
R 20
* * * *
