Miscellaneous - Lubrication System
Section 300-0020
SM 1972 4-00
2
SM - 2482

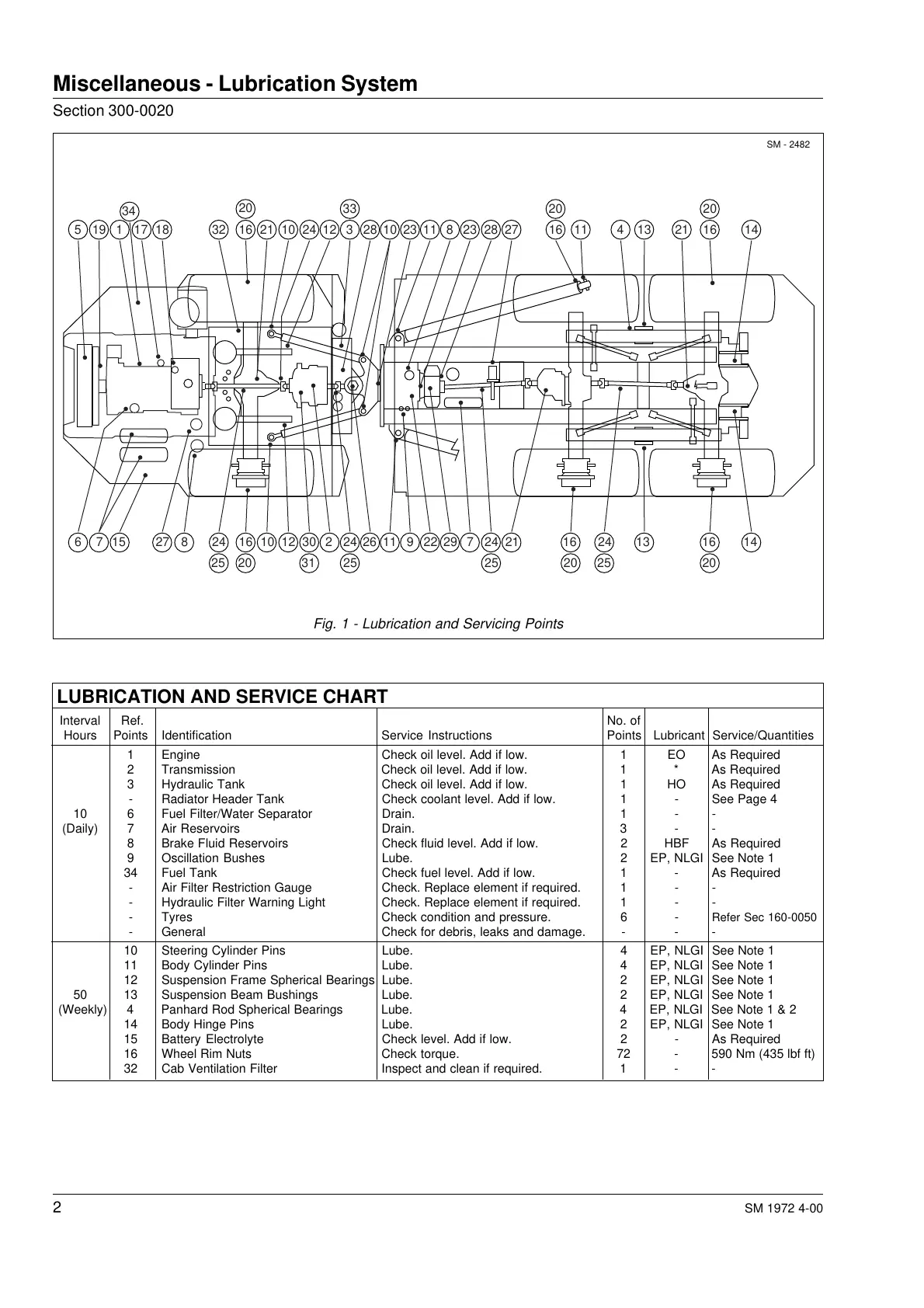

Fig. 1 - Lubrication and Servicing Points
LUBRICATION AND SERVICE CHART
Interval Ref. No. of
Hours Points Identification Service Instructions Points Lubricant Service/Quantities
1 Engine Check oil level. Add if low. 1 EO As Required
2 Transmission Check oil level. Add if low. 1 * As Required
3 Hydraulic Tank Check oil level. Add if low. 1 HO As Required
- Radiator Header Tank Check coolant level. Add if low. 1 - See Page 4
10 6 Fuel Filter/Water Separator Drain. 1 - -
(Daily) 7 Air Reservoirs Drain. 3 - -
8 Brake Fluid Reservoirs Check fluid level. Add if low. 2 HBF As Required
9 Oscillation Bushes Lube. 2 EP, NLGI See Note 1
34 Fuel Tank Check fuel level. Add if low. 1 - As Required
- Air Filter Restriction Gauge Check. Replace element if required. 1 - -
- Hydraulic Filter Warning Light Check. Replace element if required. 1 - -
- Tyres Check condition and pressure. 6 - Refer Sec 160-0050
- General Check for debris, leaks and damage. - - -
10 Steering Cylinder Pins Lube. 4 EP, NLGI See Note 1
11 Body Cylinder Pins Lube. 4 EP, NLGI See Note 1
12 Suspension Frame Spherical Bearings Lube. 2 EP, NLGI See Note 1
50 13 Suspension Beam Bushings Lube. 2 EP, NLGI See Note 1
(Weekly) 4 Panhard Rod Spherical Bearings Lube. 4 EP, NLGI See Note 1 & 2
14 Body Hinge Pins Lube. 2 EP, NLGI See Note 1
15 Battery Electrolyte Check level. Add if low. 2 - As Required
16 Wheel Rim Nuts Check torque. 72 - 590 Nm (435 lbf ft)
32 Cab Ventilation Filter Inspect and clean if required. 1 - -
5 19 1
25
1817 32
34
6 7 15 27 24
20
10 12 2 26 11 916
31
30 24
2525
24
20
16
25
24
20
14161321729228
21 10 24 12 28
33
10 23 11 8 23 28 2716
20
3 16 11 4 13 21 16
2020
14
