12
SM 1988 Rev 1 11-00
Chassis - Articulation and Oscillation Pivot
Section 100-0020
SM - 844

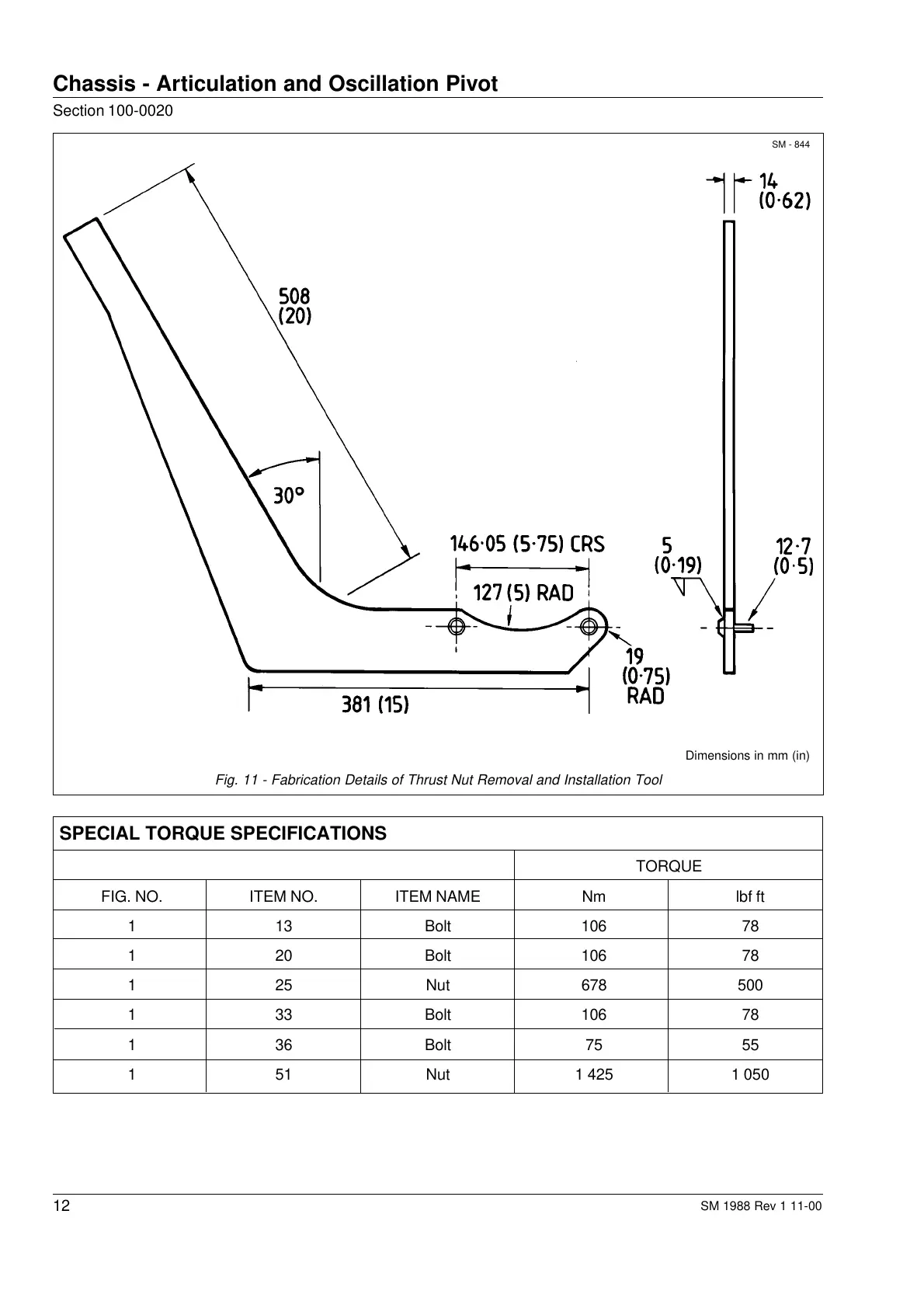

Fig. 11 - Fabrication Details of Thrust Nut Removal and Installation Tool
Dimensions in mm (in)
SPECIAL TORQUE SPECIFICATIONS
TORQUE
FIG. NO. ITEM NO. ITEM NAME Nm lbf ft
1 13 Bolt 106 78
1 20 Bolt 106 78
1 25 Nut 678 500
1 33 Bolt 106 78
1 36 Bolt 75 55
1 51 Nut 1 425 1 050
