Section 100-0040
SM 1984 Rev 1 11-00
1
HOOD
Removal
Numbers in parentheses refer to Fig. 1.
WARNING
To prevent personal injury and property
damage, be sure blocking materials and lifting
equipment are properly secured and of
adequate capacity to do the job safely.
1. Position the machine on a level surface, apply the
parking brake and switch off the engine.
CHASSIS - Hood and Mounting
2. Block all road wheels and place the battery master
switch in the 'Off' position.
3. Remove bolts (7) and lockwashers (8) securing
grille (2) to grille subframe (3). Secure grille (2) clear of
hood (1).
4. Pull cable assembly (10), handle inside cab, to
release hood catch and lift up hood (1). Secure hood
(1) in raised position using suitable lifting equipment.
5. Carefully remove split pins (54) and slide washers
(53) from torsion bars (52). Remove torsion bars (52)
from mounting brackets.
SM - 2492

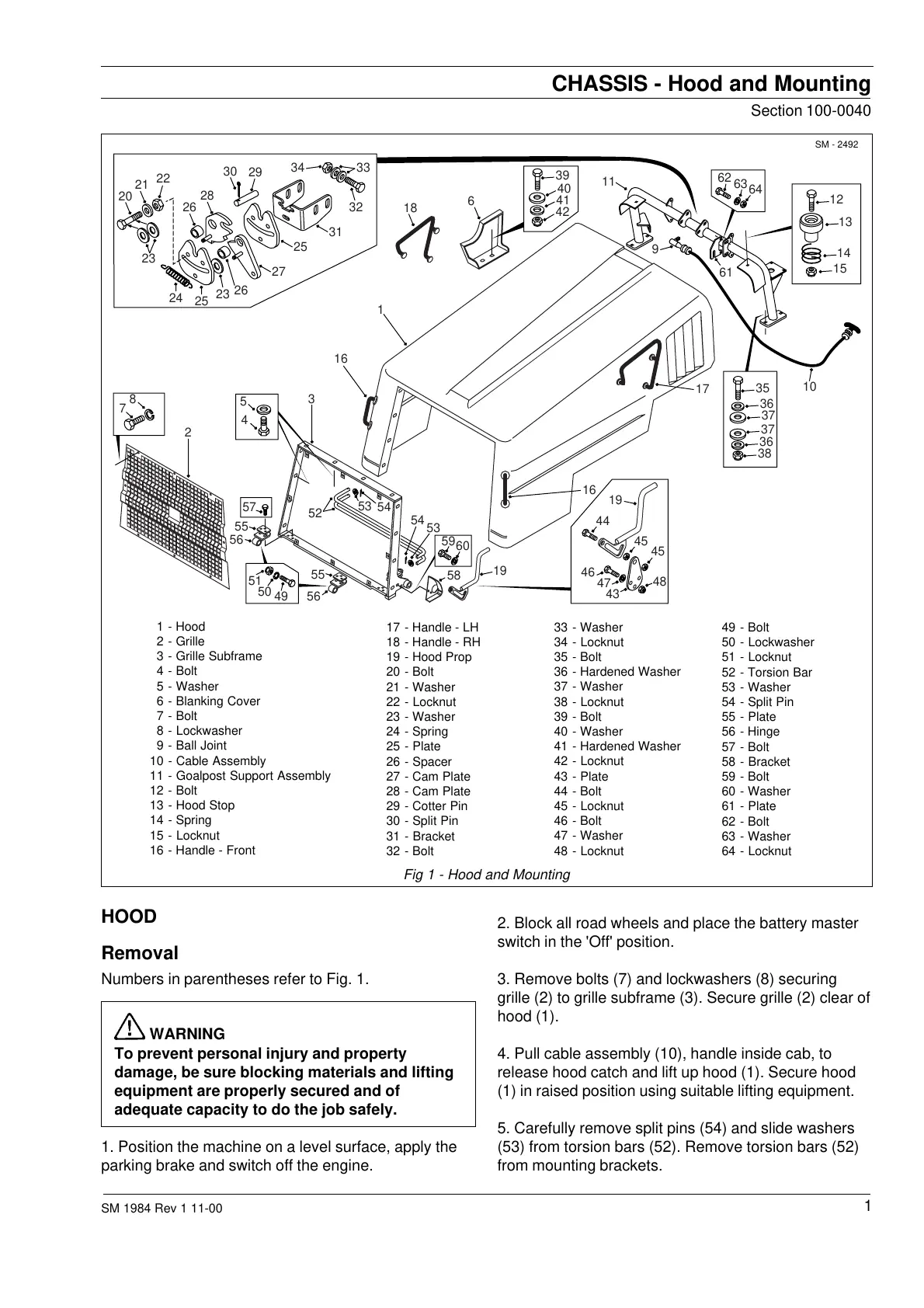

Fig 1 - Hood and Mounting
33 - Washer
34 - Locknut
35 - Bolt
36 - Hardened Washer
37 - Washer
38 - Locknut
39 - Bolt
40 - Washer
41 - Hardened Washer
42 - Locknut
43 - Plate
44 - Bolt
45 - Locknut
46 - Bolt
47 - Washer
48 - Locknut
17 - Handle - LH
18 - Handle - RH
19 - Hood Prop
20 - Bolt
21 - Washer
22 - Locknut
23 - Washer
24 - Spring
25 - Plate
26 - Spacer
27 - Cam Plate
28 - Cam Plate
29 - Cotter Pin
30 - Split Pin
31 - Bracket
32 - Bolt
1 - Hood
2 - Grille
3 - Grille Subframe
4 - Bolt
5 - Washer
6 - Blanking Cover
7 - Bolt
8 - Lockwasher
9 - Ball Joint
10 - Cable Assembly
11 - Goalpost Support Assembly
12 - Bolt
13 - Hood Stop
14 - Spring
15 - Locknut
16 - Handle - Front
49 - Bolt
50 - Lockwasher
51 - Locknut
52 - Torsion Bar
53 - Washer
54 - Split Pin
55 - Plate
56 - Hinge
57 - Bolt
58 - Bracket
59 - Bolt
60 - Washer
61 - Plate
62 - Bolt
63 - Washer
64 - Locknut
12
62
63
64
35
36
37
37
36
38
39
40
41
42
13
14
61
15
11
9
10
17
18
20
26
28
30
31
25
27
23
25
24
26
32
3334
21
22
23
29
6
1
16
16
7
8
2
3
5
4
49
50
51
57
55
56
55
59
60
56
53
53
52
54
54
19
19
48
45
45
44
46
47
43
58
