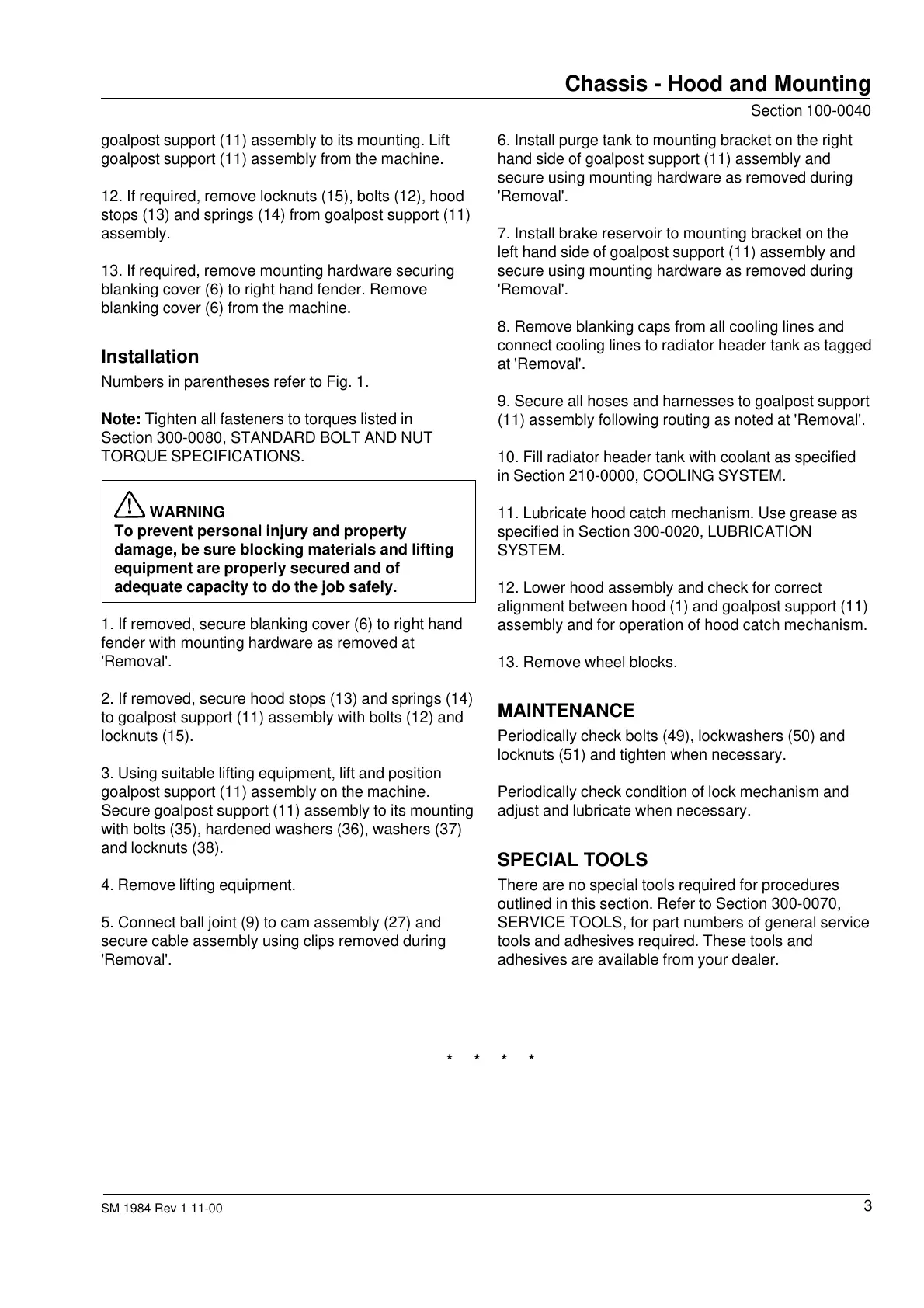

Section 100-0040
SM 1984 Rev 1 11-00
3
goalpost support (11) assembly to its mounting. Lift
goalpost support (11) assembly from the machine.
12. If required, remove locknuts (15), bolts (12), hood
stops (13) and springs (14) from goalpost support (11)
assembly.
13. If required, remove mounting hardware securing
blanking cover (6) to right hand fender. Remove
blanking cover (6) from the machine.
Installation
Numbers in parentheses refer to Fig. 1.
Note: Tighten all fasteners to torques listed in
Section 300-0080, STANDARD BOLT AND NUT
TORQUE SPECIFICATIONS.
WARNING
To prevent personal injury and property
damage, be sure blocking materials and lifting
equipment are properly secured and of
adequate capacity to do the job safely.
1. If removed, secure blanking cover (6) to right hand
fender with mounting hardware as removed at
'Removal'.
2. If removed, secure hood stops (13) and springs (14)
to goalpost support (11) assembly with bolts (12) and
locknuts (15).
3. Using suitable lifting equipment, lift and position
goalpost support (11) assembly on the machine.
Secure goalpost support (11) assembly to its mounting
with bolts (35), hardened washers (36), washers (37)
and locknuts (38).
4. Remove lifting equipment.
5. Connect ball joint (9) to cam assembly (27) and
secure cable assembly using clips removed during
'Removal'.
6. Install purge tank to mounting bracket on the right
hand side of goalpost support (11) assembly and
secure using mounting hardware as removed during
'Removal'.
7. Install brake reservoir to mounting bracket on the
left hand side of goalpost support (11) assembly and
secure using mounting hardware as removed during
'Removal'.
8. Remove blanking caps from all cooling lines and
connect cooling lines to radiator header tank as tagged
at 'Removal'.
9. Secure all hoses and harnesses to goalpost support
(11) assembly following routing as noted at 'Removal'.
10. Fill radiator header tank with coolant as specified
in Section 210-0000, COOLING SYSTEM.
11. Lubricate hood catch mechanism. Use grease as
specified in Section 300-0020, LUBRICATION
SYSTEM.
12. Lower hood assembly and check for correct
alignment between hood (1) and goalpost support (11)
assembly and for operation of hood catch mechanism.
13. Remove wheel blocks.
MAINTENANCE
Periodically check bolts (49), lockwashers (50) and
locknuts (51) and tighten when necessary.
Periodically check condition of lock mechanism and
adjust and lubricate when necessary.
SPECIAL TOOLS
There are no special tools required for procedures
outlined in this section. Refer to Section 300-0070,
SERVICE TOOLS, for part numbers of general service
tools and adhesives required. These tools and
adhesives are available from your dealer.
Chassis - Hood and Mounting
* * * *
